Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-70

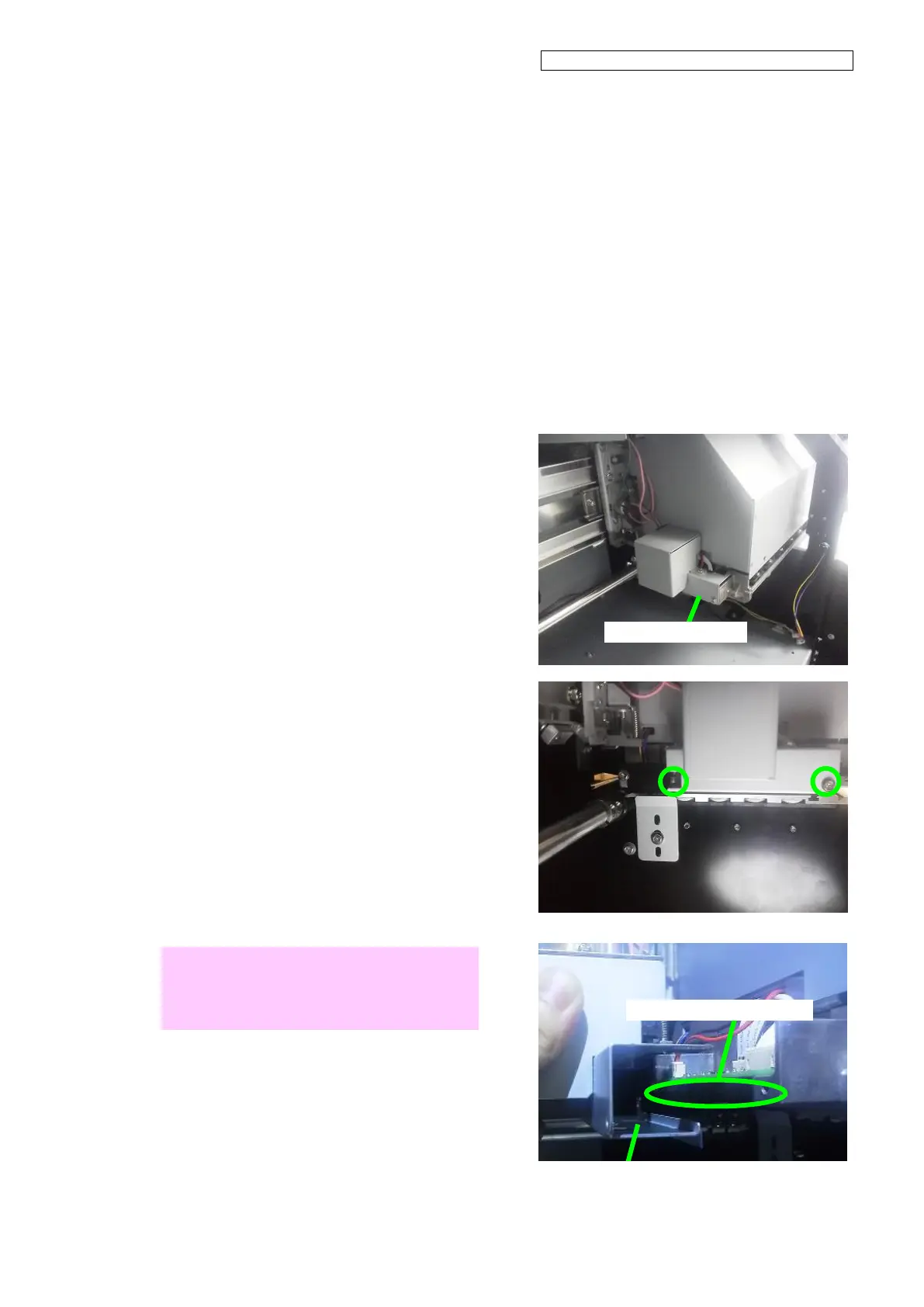

6.8.8 PCB-ASSY-ADJ1
<Removal>
1. Press the CANCEL button and the
POWER button on the operation panel at
the same time to turn the printer off. Turn
off the main power switch at the back of
the printer.
2. Lower the CAPPING-UNIT-MW to move
the carriage to the left.
3. Remove the ADJ1-COVER-ASSY with
two fixing screws.
Note
Pay attention not to damage the
PCB-ASSY-ADJ1 sensor when removing or
installing the ADJ1-COVER-ASSY.
To Next Page
