Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-92
6.10.2 CAPPING-UNIT-MW
<Removal>
1. Open the COVER(FRONT)ASSY-MW
(see 6.3).
2. Remove the COVER(R)ASSY-MW (see
6.3).
3. Remove the WIPING-UNIT-MW (see
6.9.1).

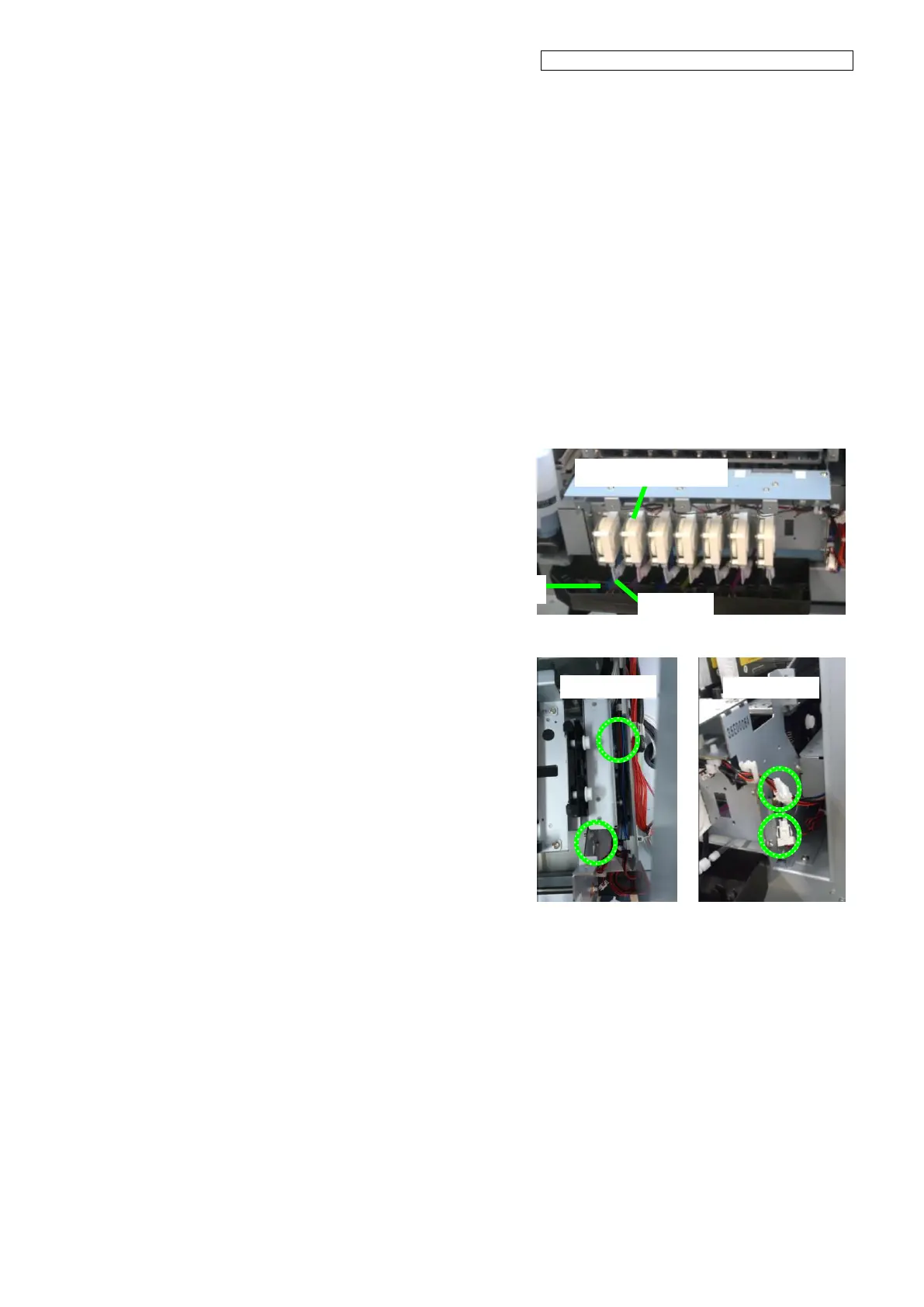

4. Remove the seven tubes caught
between the projections inside the
TRAY(WI) under the PUMP-F-ASSY-MW
to make them free to move.
5. Disconnect the two connectors at the
right of the CAPPING-UNIT, and remove
the two screws on the right securing the
CAPPING-UNIT-MW.
PUMP-F-ASSY-MW
Projections
Tube
Two connectors
Two screws
