Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-6
6.3.4 COVER(Y-RAIL)-64-MW
<Removal>
1. Remove the COVER(FRONT)ASSY-MW
(see 6.3.1).
2. Remove the COVER(L)ASSY-MW and
the COVER(R)ASSY-MW (see 6.3.2).

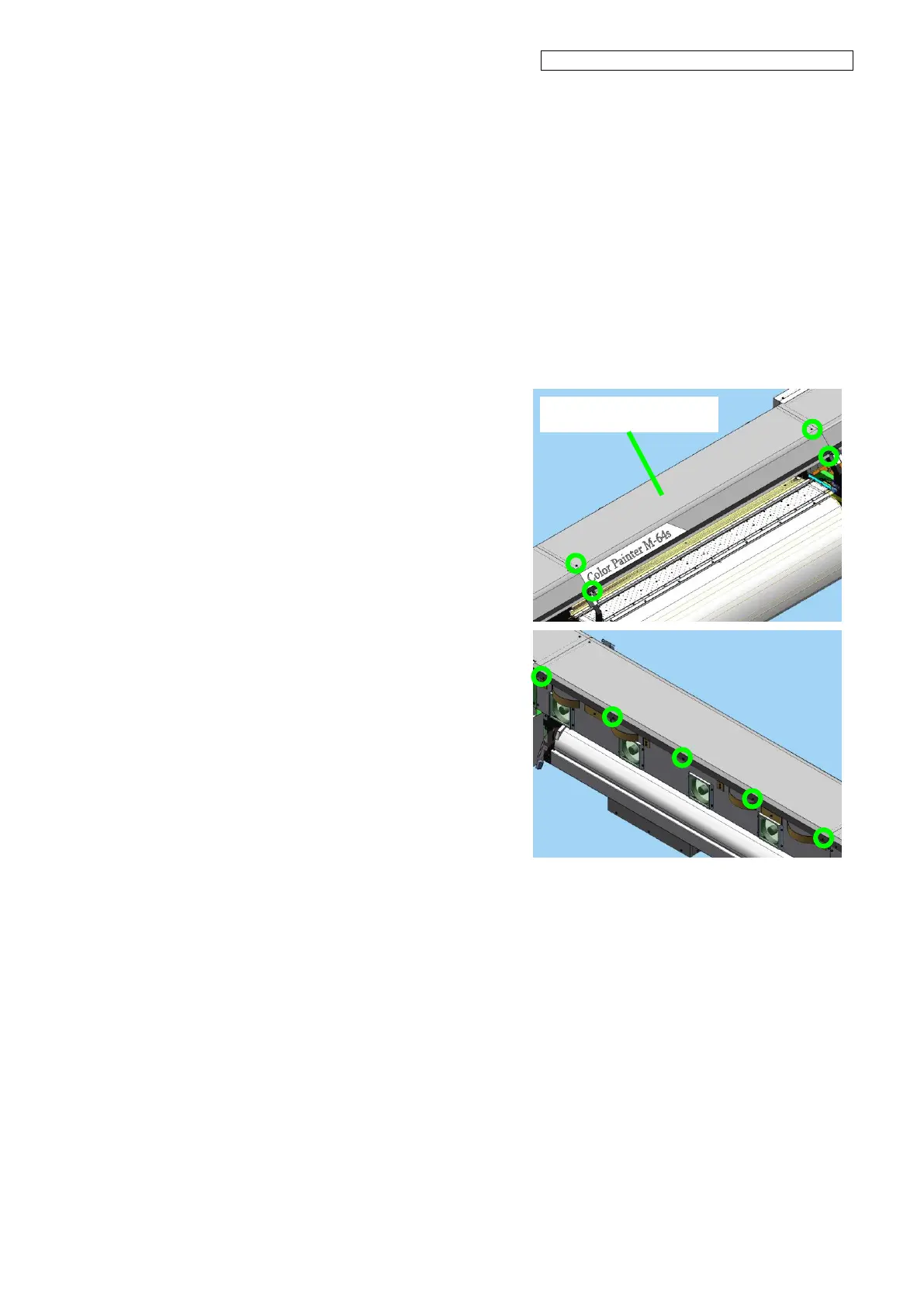

3. Remove the COVER(Y-RAIL)-64-MW
with nine fixing screws.
COVER(Y-RAIL)-64-MW
