6.5.4 PCB-ASSY-SNS1 (Rear side)
<Removal>
1. Remove:
- COVER(FRONT)ASSY-MW
(see 6.3.1); and
- PAPER-GUIDE-FEEDING64-MW-
ASSY (see 6.14.2)

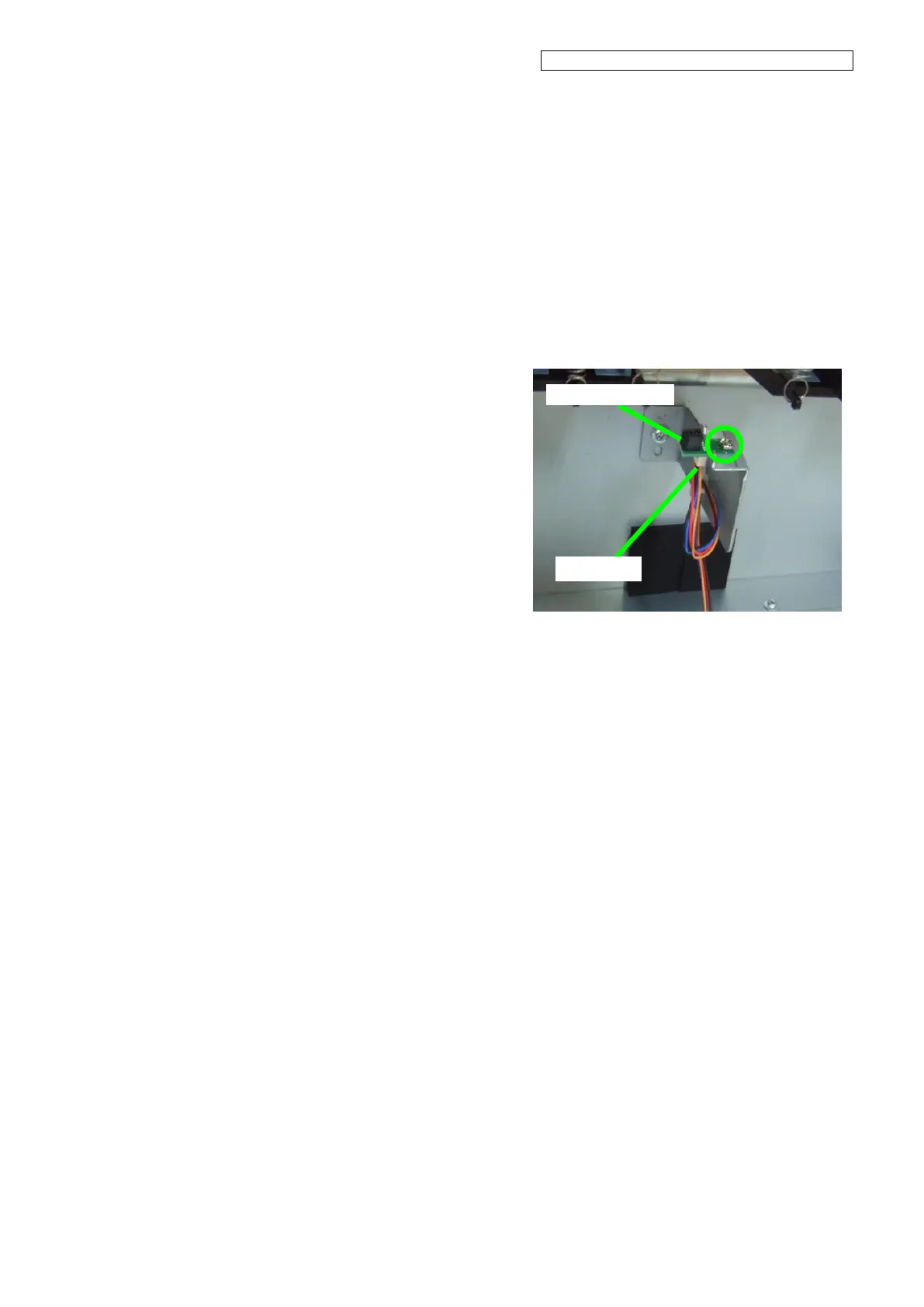

2. Remove the screw securing the
PCB-ASSY-SNS1, disconnect the
connector, and then remove the
PCB-ASSY-SNS1.
Connector
PCB-ASSY-SNS1
