Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-3
6.3 Disassembling and Reassembling Exterior Parts
6.3.1 COVER(FRONT)ASSY-MW
<Removal>

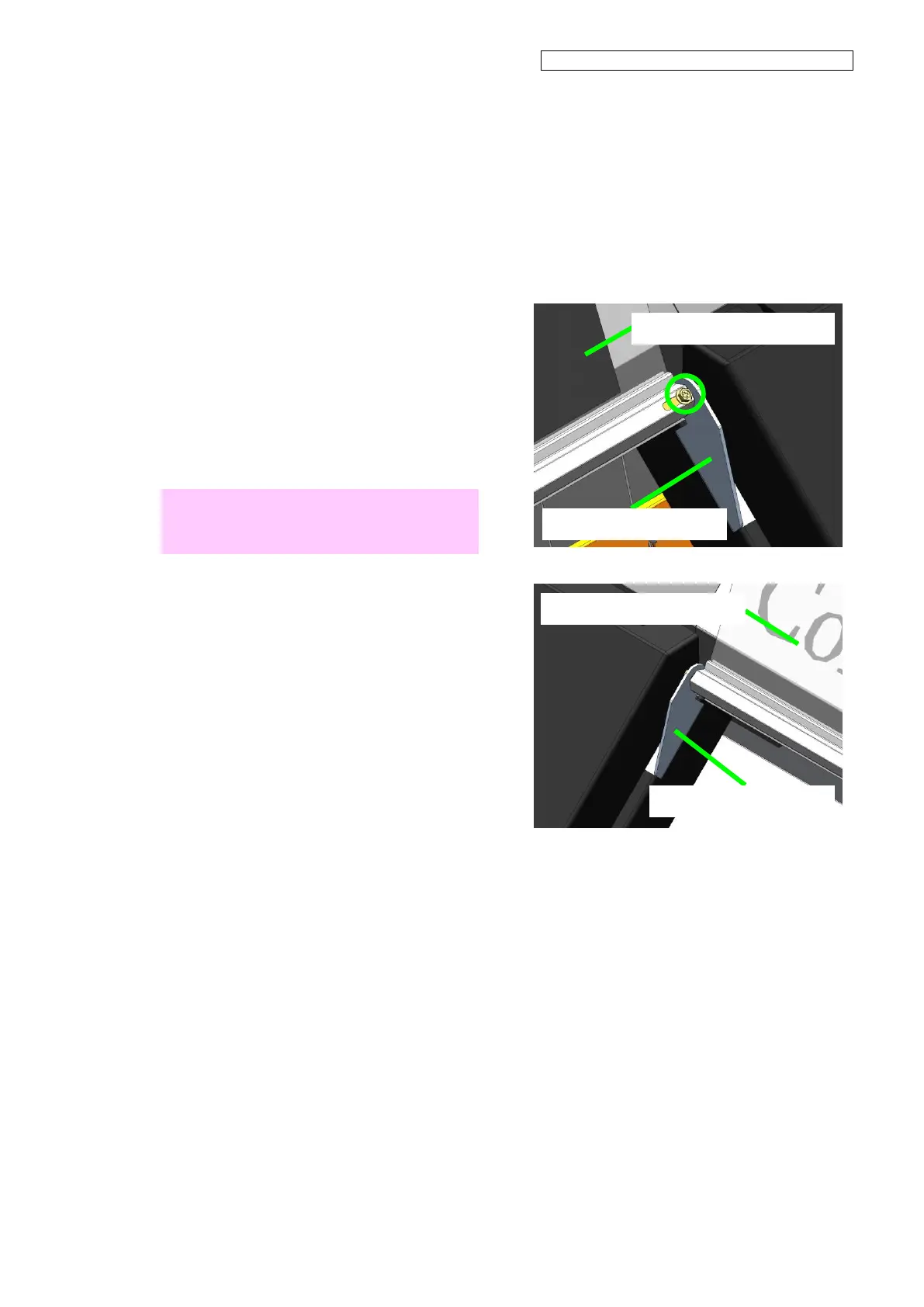

1. Open COVER(FRONT)ASSY-MW and
loosen the slide stop screw on the right
hinge.
2. Slide the screw to the left, retract the pin,
and detach the
COVER(FRONT)ASSY-MW slightly from
the right the BRACKET-COVER-R-01.
Note
Move COVER(FRONT)ASSY-MW slightly to
prevent damage to the left hinge.
3. Move the COVER(FRONT)ASSY-MW to
the right from the left
BRACKET-COVER-L-01 to remove it.
COVER(FRONT)ASSY-MW
BRACKET-COVER-R-01
COVER(FRONT)ASSY-MW
BRACKET-COVER-L-01
