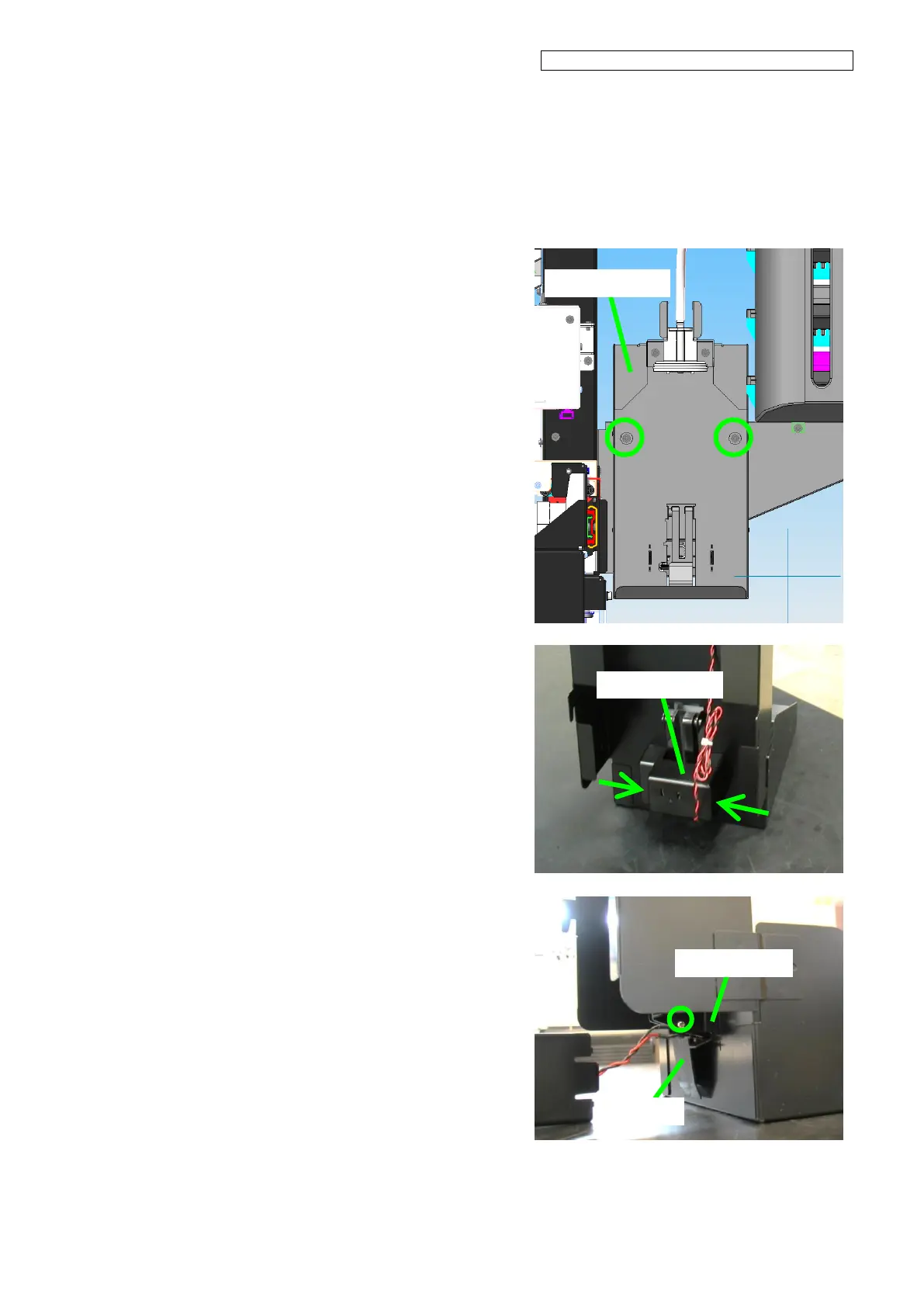

6.11.2 MICRO SWITCH 4(WASTE INK BOTTLE ASSY)
<Removal>
1. Remove the TRAY-BOTTLE-MW1 with
two securing screws.
2. Remove the TRAY(WI) (see 6.11.1).
3. Disconnect the connector of the harness
connecting the TRAY-BOTTLE-MW1 to
the printer, and remove the
TRAY-BOTTLE-MW1 from the printer.
Press the both sides of the
COVER(WASTE) located at the back of
the TRAY-BOTTLE-MW1, and remove
the COVER(WASTE).
4. Remove the MICRO SWITCH 4 with one
securing screw.
TRAY-BOTTLE-MW1
COVER(WASTE)
Lever
MICRO SWITCH 4
