Oki IP-6620 - 6.3.13 Photo sensor LG248 NL1

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-15
6.3.13 Photo sensor LG248NL1
<Removal>
1. Open the COVER(FRONT)ASSY-MW
(see 6.3.1), and remove the
PAPER-GUIDE-DELIVERY64-MW-ASSY
(See 6.14.1).
2. Lower the
LEVER-PINCH-FRONT-ASSY-MW.
3. Remove the screw securing the
LEVER-SENSOR-PLATE1-MW,
disconnect the connector and remove
the two tabs fixing the Photo sensor
LG248NL1 to the
LEVER-SENSOR-PLATE1-MW, and
then remove the Photo sensor
LG248NL1.

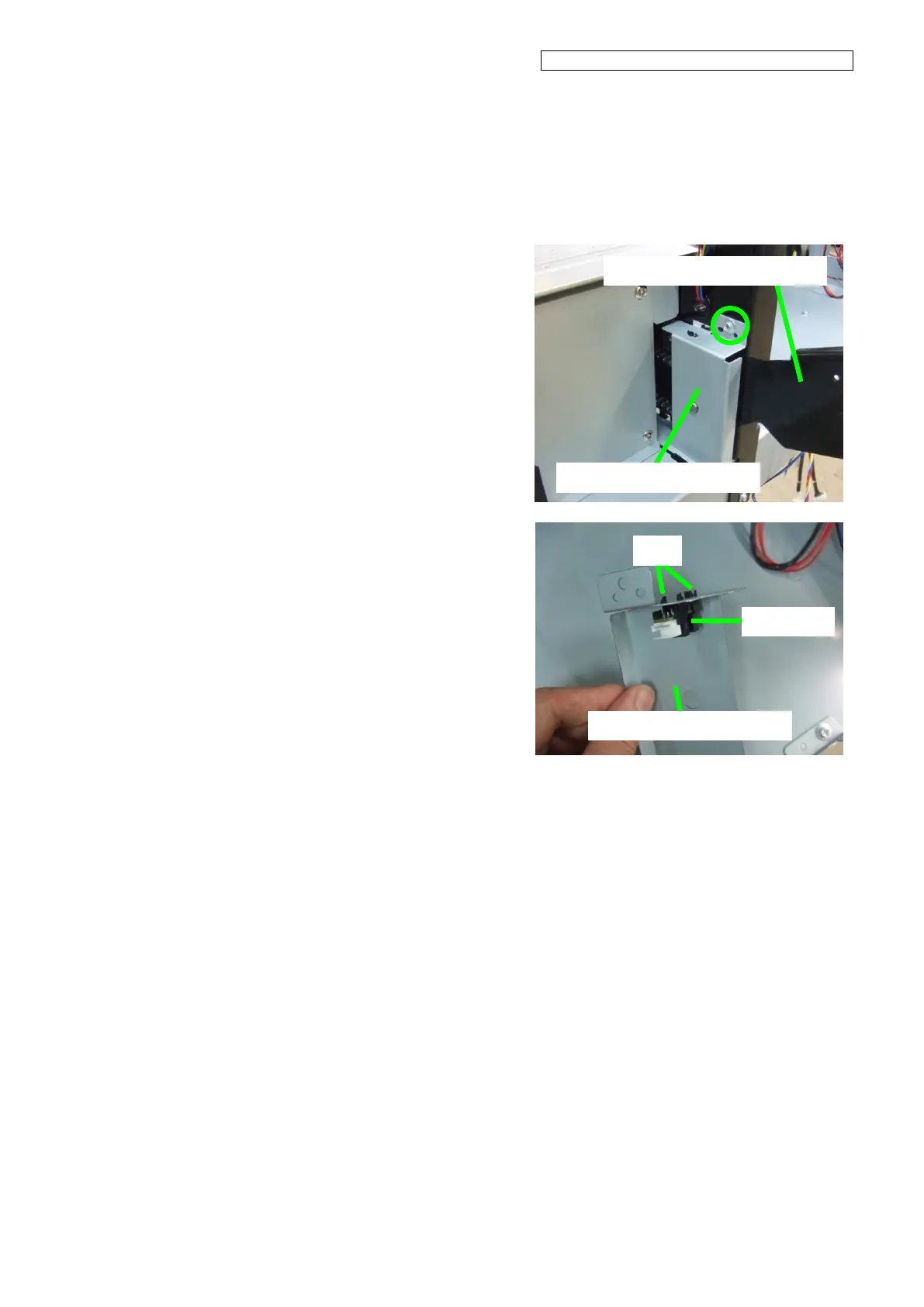

LEVER-SENSOR-PLATE1-MW
Tabs
LG248NL1
LEVER-SENSOR-PLATE1-MW
LEVER-PINCH-FRONT-ASSY-MW
