Oki IP-6620 - 6.4.7 CARRIAGE FFC, MW

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-31

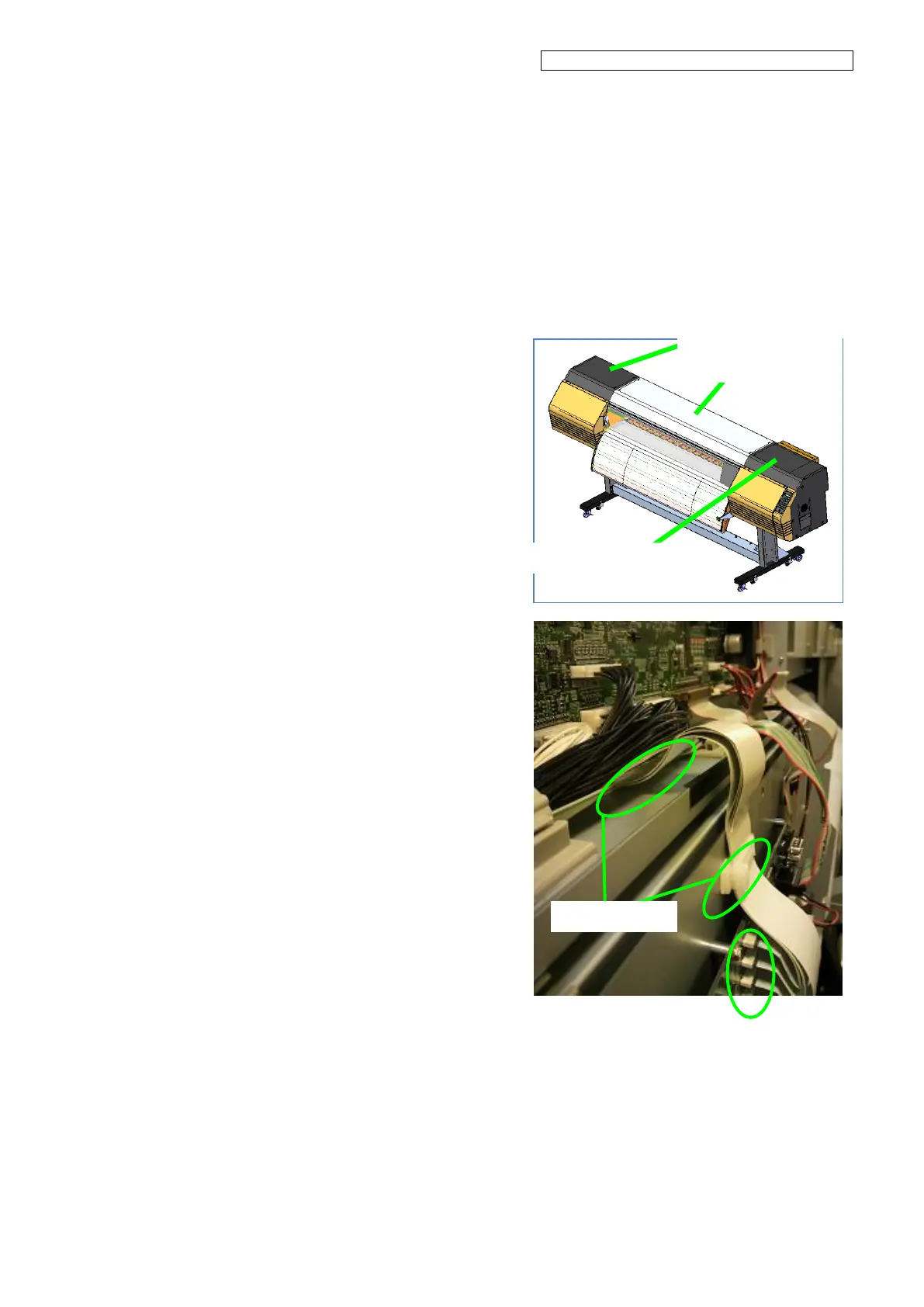

6.4.7 CARRIAGE FFC, MW
<Removal>
1. Before starting the procedure, be sure to
disconnect the power cord from the
outlet b.
2. Remove the following parts.
- COVER(Y-RAIL)-SR-MW (see 6.3.3)
- COVER(Y-RAIL)-SL-MW (see 6.3.3)
- COVER(Y-RAIL)-64-MW (see 6.3.4)
3. Open the controller box and remove the
FFC-CRG(MW) from the
PCB-ASSY-IPB5-100.
Also remove the two clamps.
COVER(Y-RAIL)-64-MW
COVER(Y-RAIL)-SL-MW
COVER(Y-RAIL)-SR-MW
Two clamps
