6.12 Disassembling and Reassembling the INKBOX-UNIT
6.12.1 INKBOX-UNIT-MW
<Removal>
1. Drain the ink (see Chapter 3).
When all ink has been drained, turn off
the printer.
2. Remove the
COVER(INKBOX-REAR)-MW (see
6.12.4).
3. Remove the COVER(SUBTANK)-MW
(see 6.3.11).

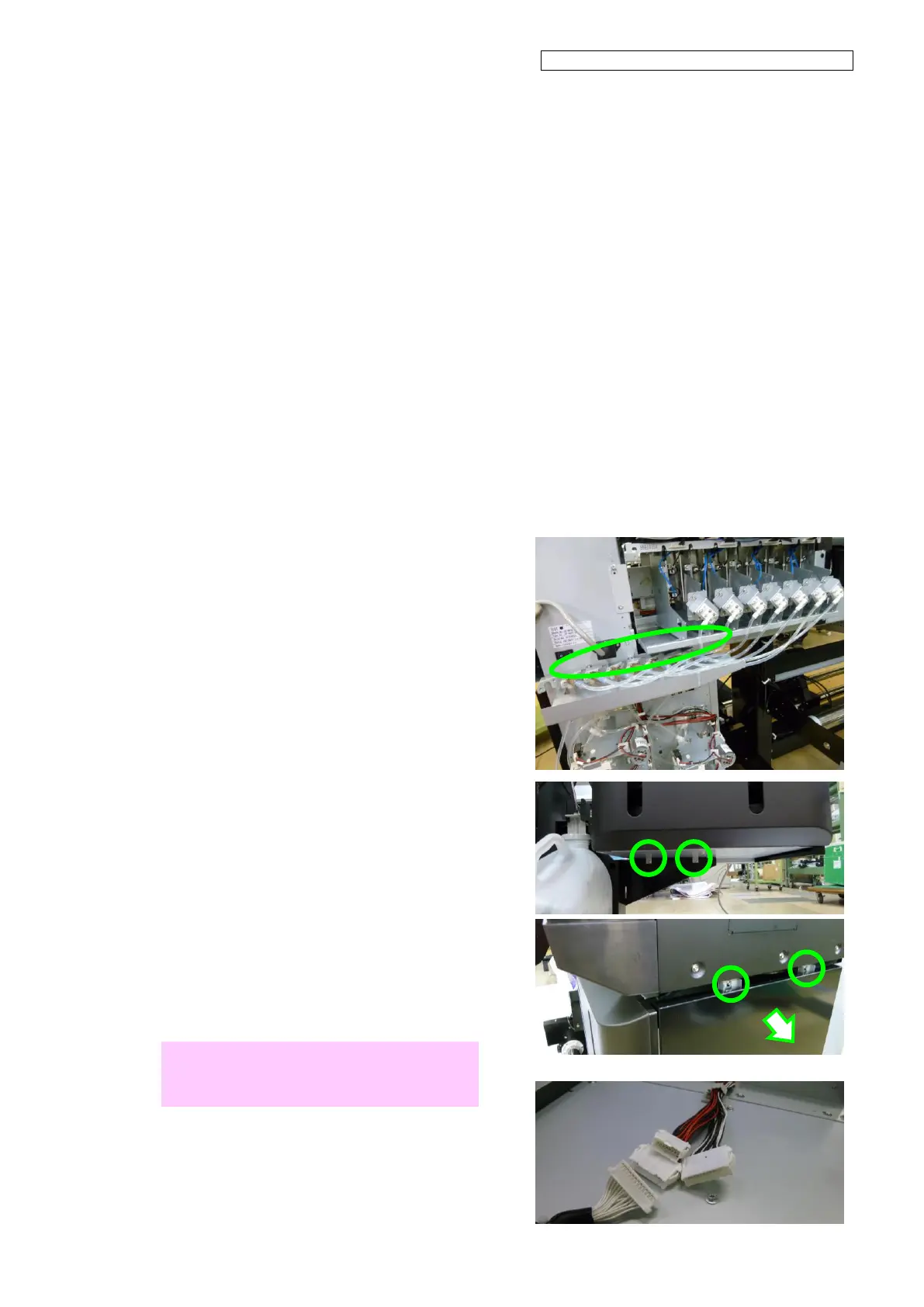

4. Disconnect the seven tubes connected
to the INKBOX-UNIT-MW.
5. Out of the four screws securing the
INKBOX-UNIT-MW, remove the two on
the front and loosen the two on the side.
6. While paying attention not to touch the
two screws on the side, pull the
INKBOX-UNIT-MW in the direction of the
arrow, disconnect the four cables, and
then remove the INKBOX-UNIT-MW.
Note
The ink box is heavy. Pay attention not to
drop it or injure yourself.
