7.8 PLATE(CARRIAGE-CAP)-MW Adjustment
Adjust the PLATE(CARRIAGE-CAP)-MW after:
- adjusting the print head height (the height of the CARRIAGE-UNIT-MW); or
- replacing the CAPPING-UNIT-MW.

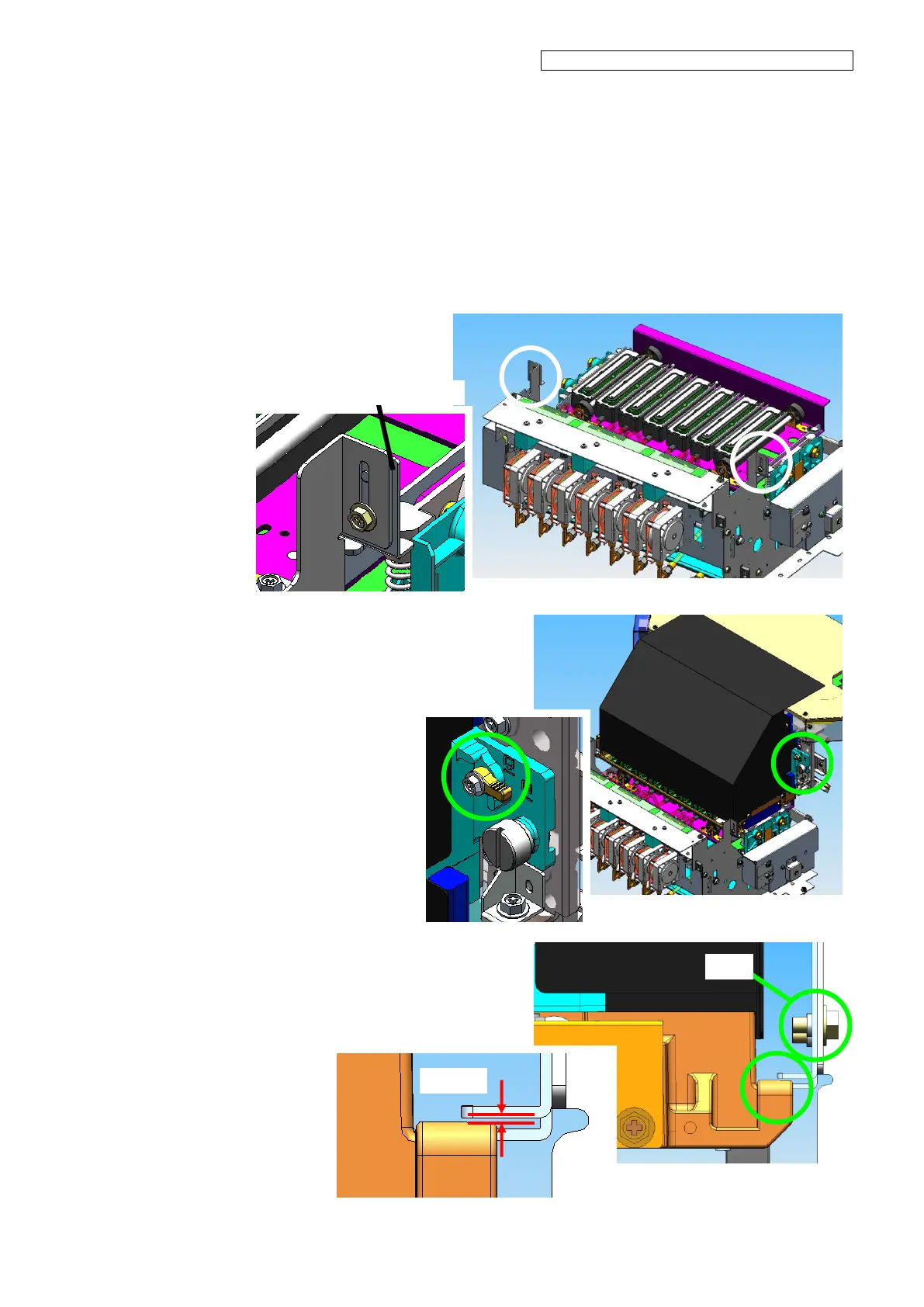

1. Open the cap, loosen the thumb screw,
and use the lever to set the carriage
height to HIGH.
2. Loosen the screw and adjust the position
at both the right and left sides so that the
space between the carriage and the
PLATE(CARRIAGE-CAP)-MW becomes
0.3 mm.
PLATE(CARRIAGE-CAP)-MW
Screw
0.3 mm
