Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-88
6.9 Disassembling and Reassembling the WIPING-UNIT-MW
The WIPING-UNIT-MW operates together with the MOTOR(PW)-MW-ASSY in the
CAPPING-UNIT-MW.
6.9.1 WIPING-UNIT-MW
Note
Always adjust the wiping position after replacing the wiping unit (see 7.5). if the position is not
adjusted, wiping may not be performed correctly and print defects may appear.
<Removal>
1. Open the COVER(R)ASSY-MW (see
6.3).
2. Lower the CAPPING-UNIT-MW to move
the carriage to the left.

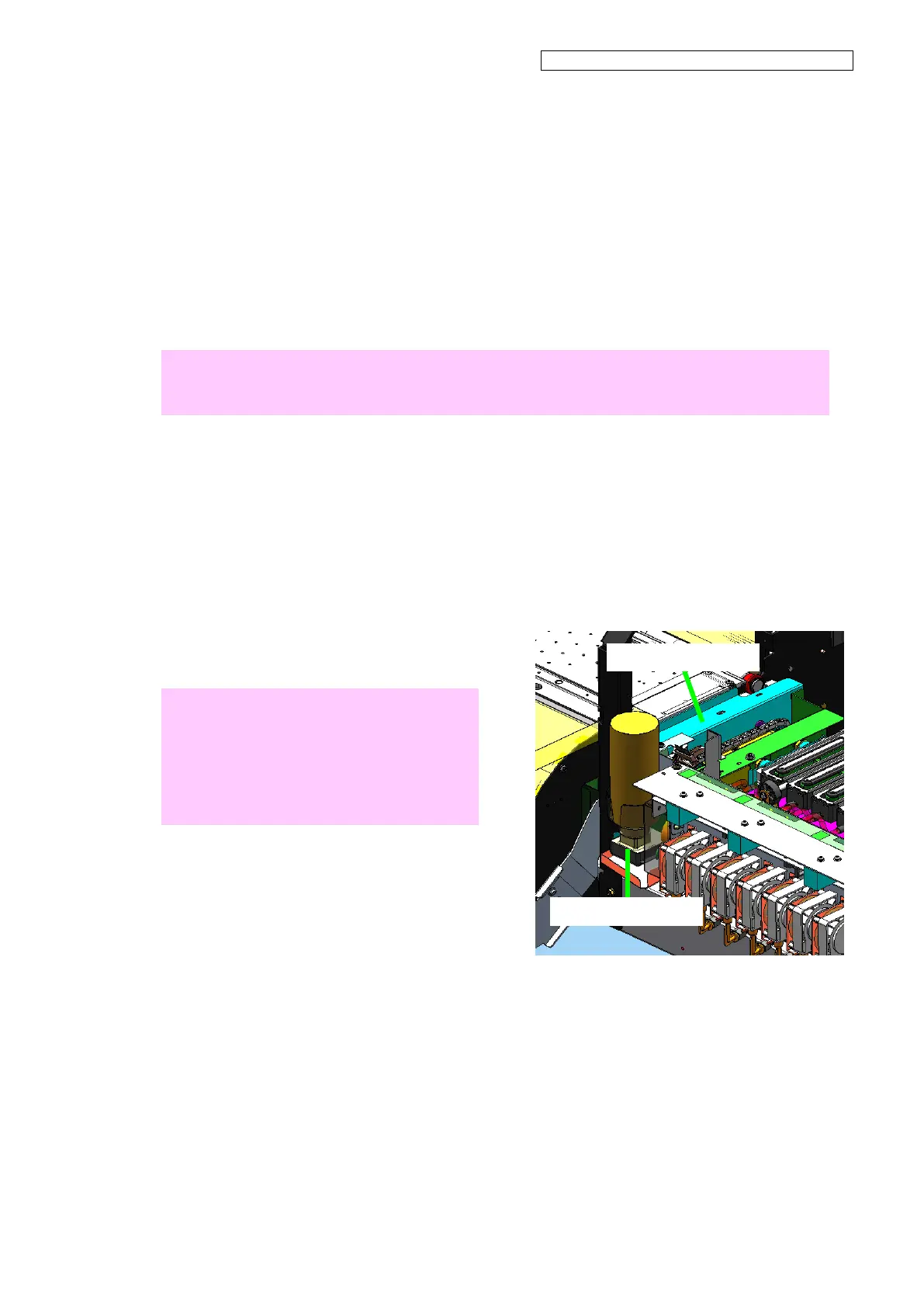

3. Pull the CASE(WIPE)-ASSY to remove it
from the WIPING-UNIT-MW.
Notes
 Be careful not to spill the wiper cleaning
liquid out of the CASE(WIPE)-ASSY.
 When the wiper cleaning liquid bottle is on
the CASE(WIPE)-ASSY, do not pull it out to
prevent the liquid from coming out.
WIPING-UNIT-MW
WIPING-UNIT-MW
