OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-89

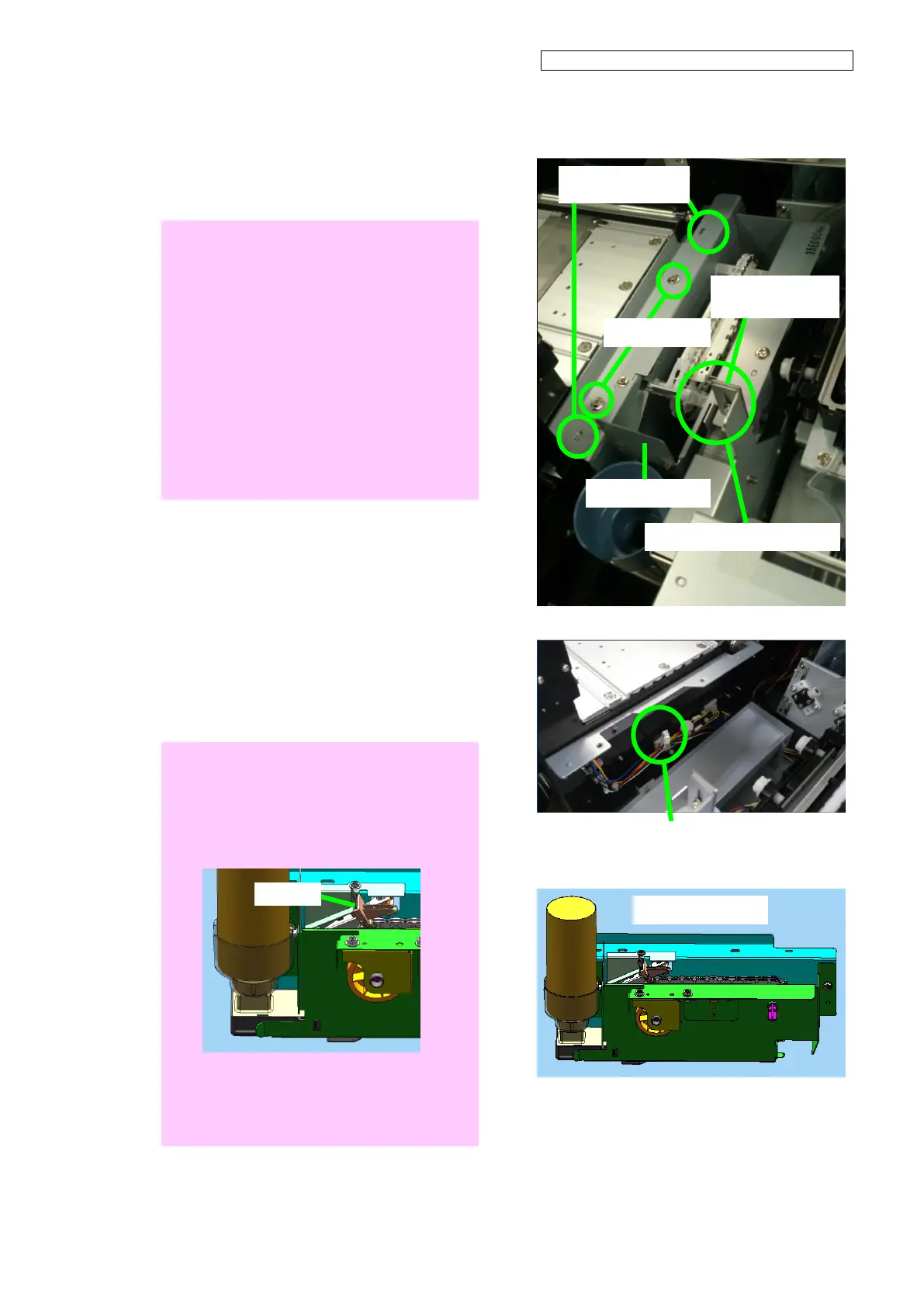

4. Remove the two screws securing the
WIPING-UNIT-MW.
Notes for installation
Install the WIPING-UNIT-MW temporarily to
the printer frame, adjust the position, and
then tighten the screws to secure the
WIPING-UNIT-MW.
POSITIONING CHECK
1. Check that the projections of the printer
are fitted into the holes next to the
WIPING-UNIT-MW screw holes.
2. Pull the WIPING-UNIT-MW (to the media
feeding direction) and check that the
projection (metal plate) of the
CAPPING-UNIT-MW is in contact with the
end of WIPING-UNIT-CV notch.
5. Lift the WIPING-UNIT-MW, disconnect
the SWITCH(WIPE)-ASSY cable
connector, and remove the
WIPING-UNIT-MW.
Notes for installation
 Adjust the position of the third RUBBER by
turning the chain so that they come to the
position shown below, and then install
WIPING-UNIT-MW.
 Do not put the SWITCH (WIPE)-ASSY
cable between the mainframe and the
WIPING-UNIT-MW or in the bushing under
WIPING-UNIT-MW.
WIPING-UNIT-MW
Projection of the
WIPING-UNIT-MW
WIPING-UNIT-MW
Notch of the WIPING-UNIT-MW
Securing screw
Projection of the
CAPPING-UNIT-MW
RUBBER
SWITCH(WIPE)-ASSY cable connector
