Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-38
6.5.2 SUCTION FAN
The printer contains four SUCTION FANs, any of which can be removed with the procedure
below.
<Removal>
1. Open the COVER(FRONT)ASSY-MW
(see 6.3.1) and remove the
PAPER-GUIDE-DELIVERY64-MW-ASSY
(see 6.14.1).

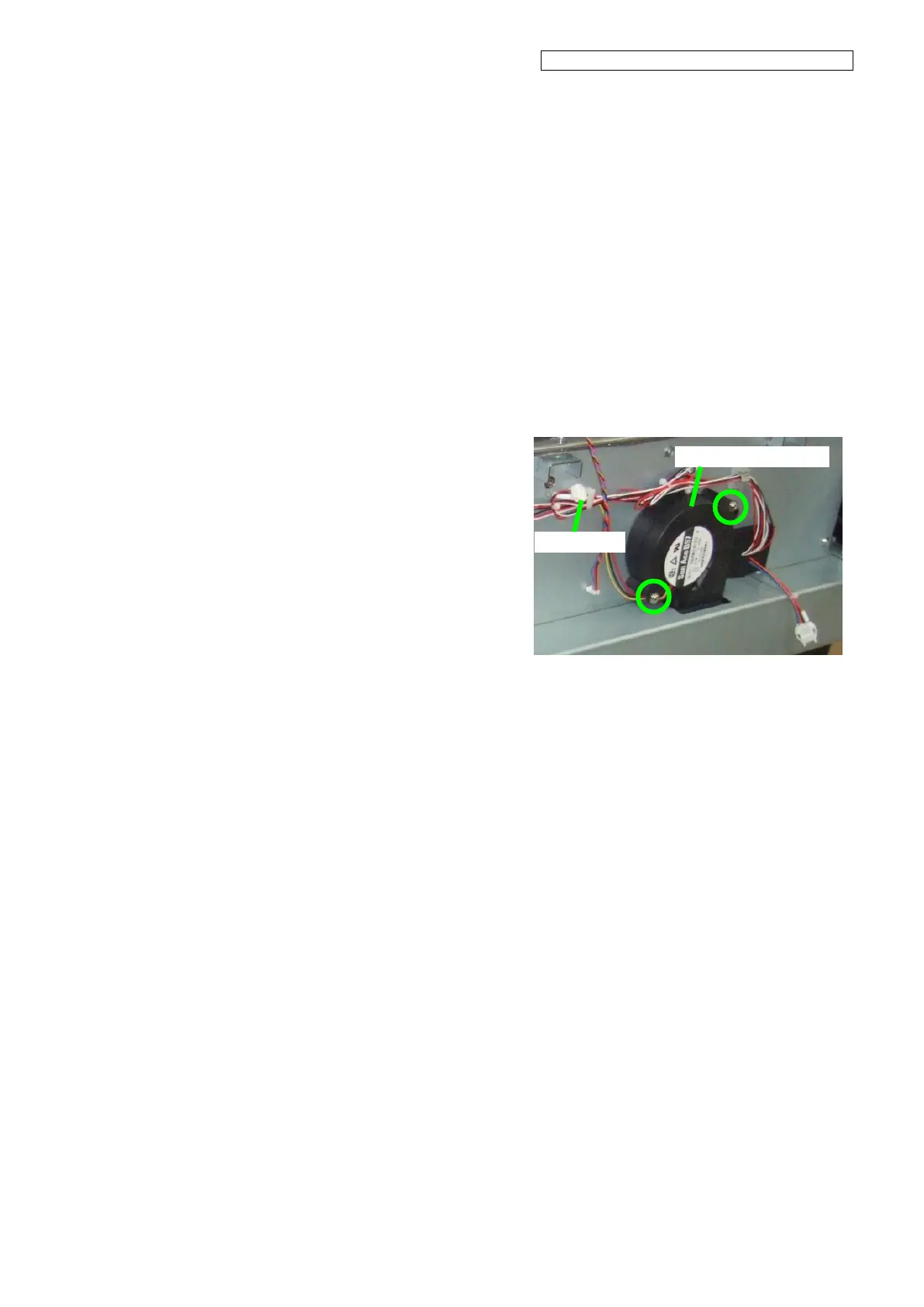

2. Remove the two screws securing each
SUCTION FAN, disconnect the
connector, and remove the SUCTION
FAN.
SUCTION FAN
Connector
