Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-39

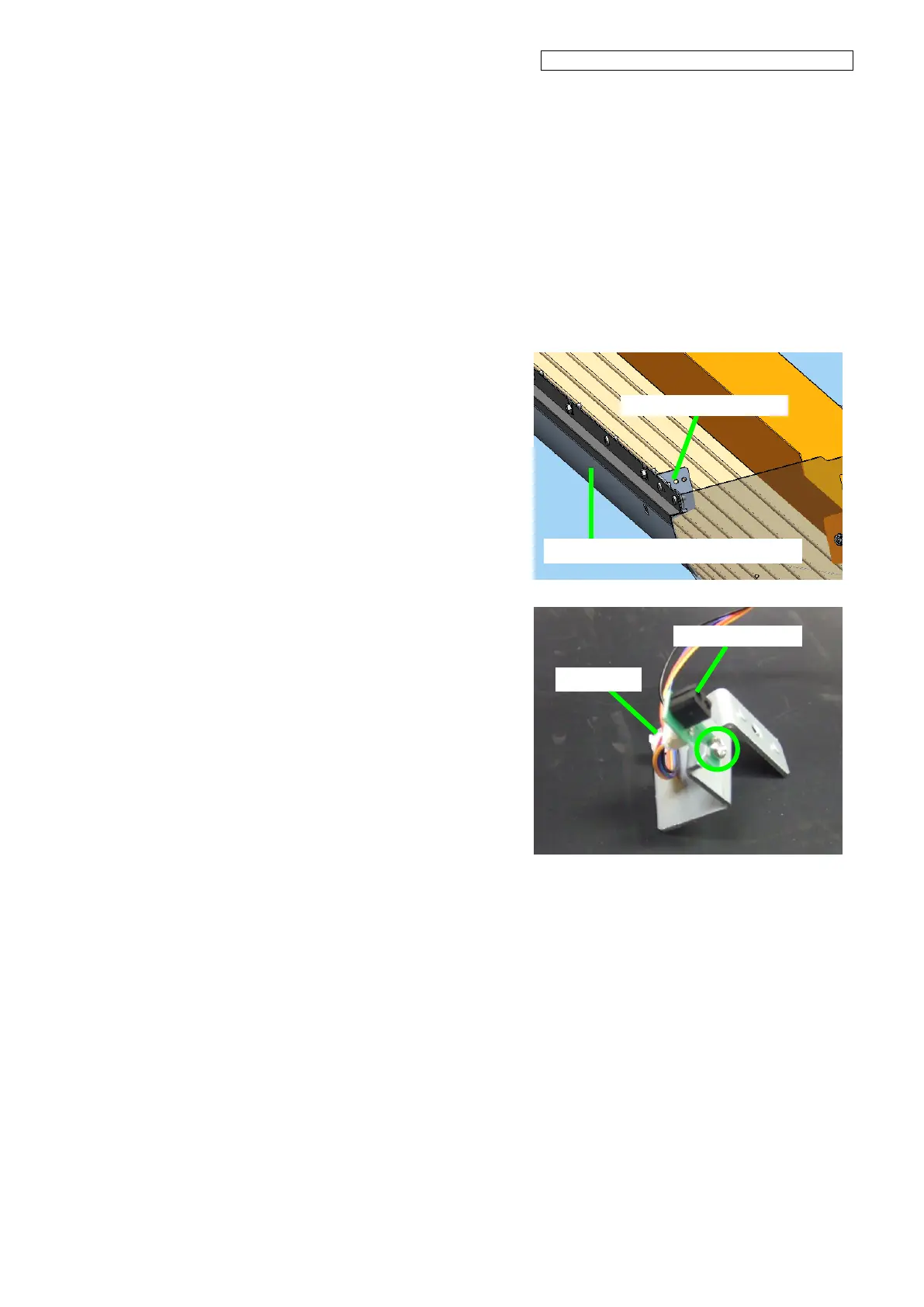

6.5.3 PCB-ASSY-SNS1 (Front side)
<Removal>
1. Open the COVER(FRONT)ASSY-MW
(see 6.3.1) and remove the
PAPER-GUIDE-DELIVERY64-MW-ASSY
(see 6.14.1).
2. Remove the screw and then remove the
STAY(Delivery-Sensor)-MW fixed to the
PAPER-GUIDE-DELIVERY64-MW-ASSY.
3. Remove the screw securing the
PCB-ASSY-SNS1, disconnect the
connector, and then remove the
PCB-ASSY-SNS1.
Connector
PCB-ASSY-SNS1
PAPER-GUIDE-DELIVERY64-MW-ASSY
STAY(Delivery-Sensor)-MW
