Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-115

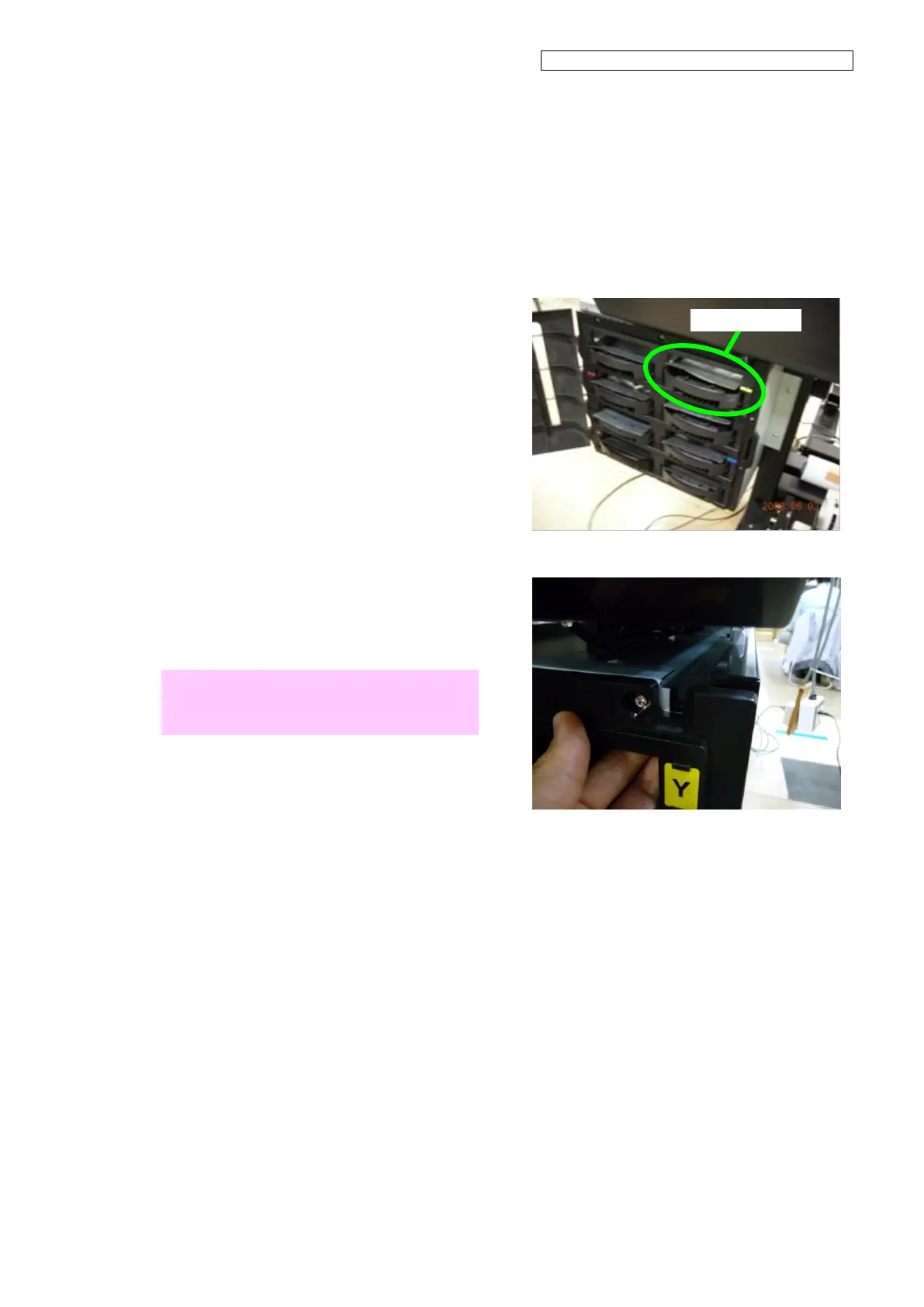

6.12.8 PHOTO SENSOR 5
<Removal>
1. Open the ink box cover.
2. Remove the ink tray Y.
3. Place your hand inside the ink tray Y slot,
grab the PHOTO SENSOR 5 (cover
sensor) tab, and remove it by pulling it in
the upward direction.
Note
Pay attention not to disconnect the switch
when removing it.
To Next Page
