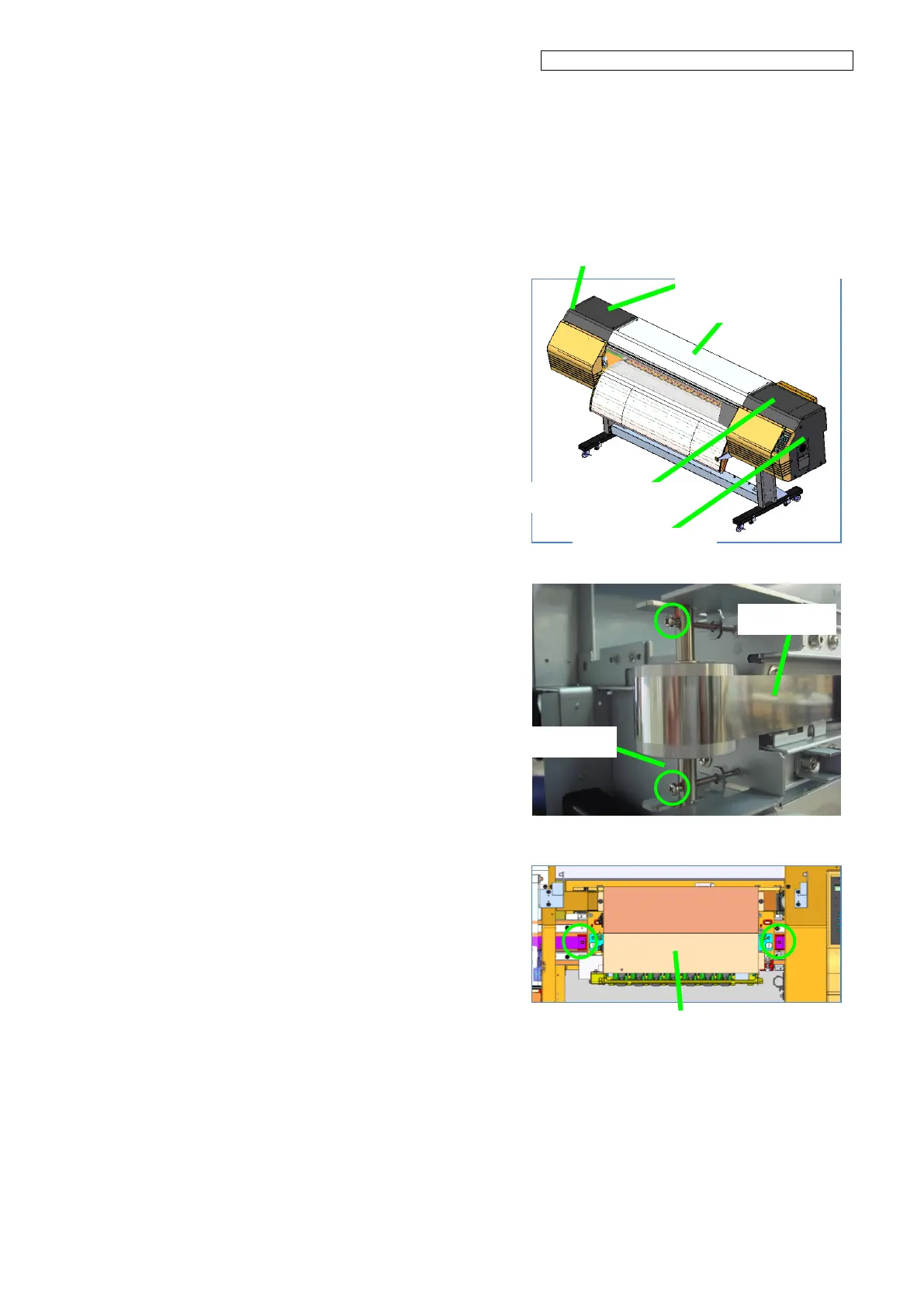

6.4.2 BELT(SUS)
<Removal>
1. Remove the following parts.
- COVER(Y-RAIL)-SR-MW (see 6.3.3)
- COVER(Y-RAIL)-SL-MW (see 6.3.3)
- COVER(Y-RAIL)-64-MW (see 6.3.4)
- COVER(SIDE-L)-MW (see 6.3.6)
- COVER(SIDE-R)-MW (see 6.3.7)
2. Turn the two screws on the
Y-TENSION-PULLEY-ASSY to loosen the
SUS-BELT.
3. Remove the two screws on the carriage's
right and left parts that fix the SUS-BELT.
COVER(Y-RAIL)-64-MW
COVER(Y-RAIL)-SL-MW
COVER(Y-RAIL)-SR-MW
COVER(SIDE-L)-MW
COVER(SIDE-L)-MW
Y-TENSION-PULLEY-ASSY
SUS-BELT
Carriage
