Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-23

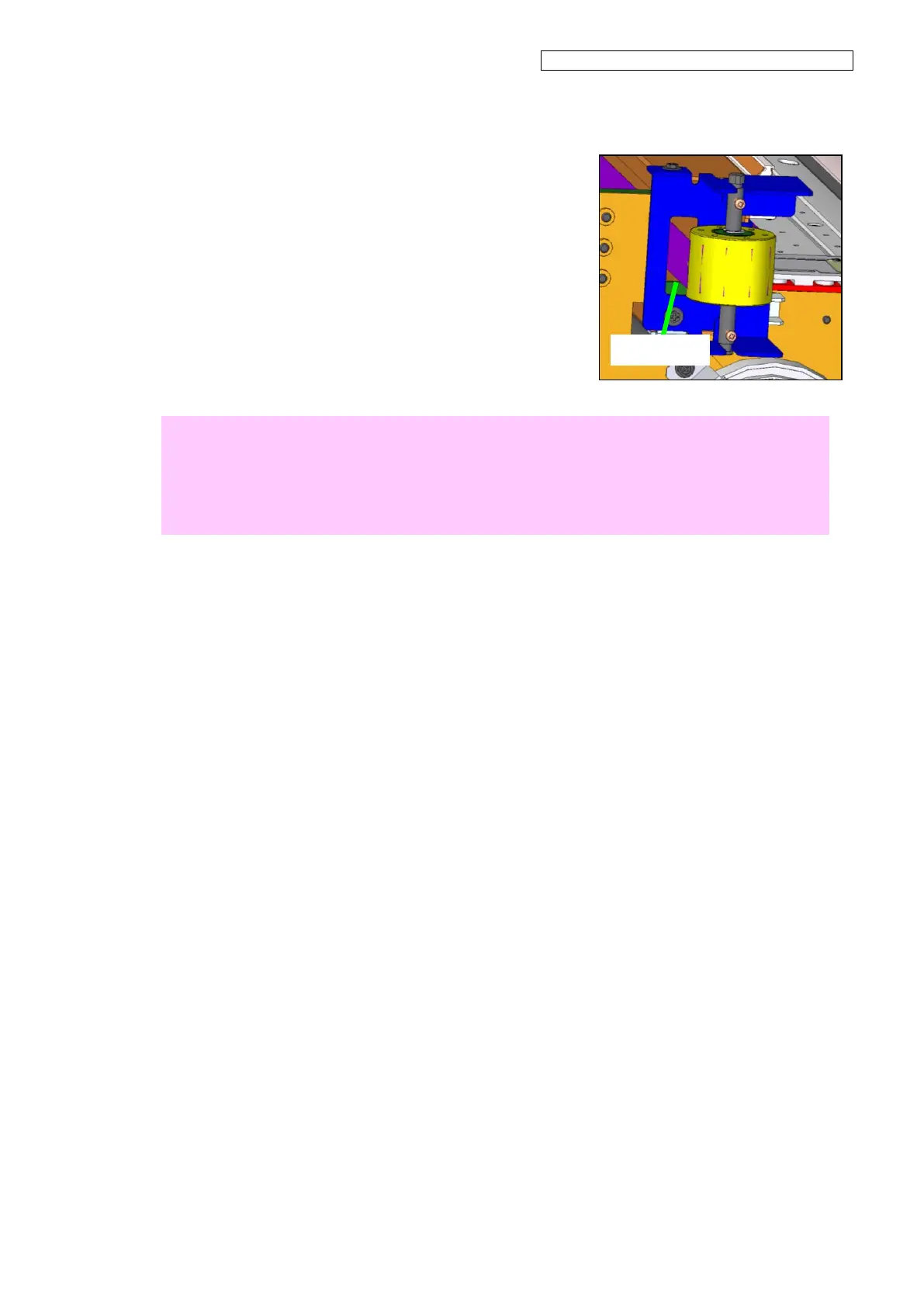

4. Pull the SUS-BELT to remove it from the hole shown in
the figure to the right.
Notes for installation
ï‚— The procedure to install the SUS-BELT is the reverse order of the removal procedure, but it
may help to attach the SUS-BELT with adhesive tape to a metal measuring tape to pass it
through the hole. Or you may also attach the new SUS-BELT to the old one before removing it.
ï‚— Always adjust the tension after installing the new SUS-BELT.
(See 7.2 SUS-BELT)
