Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-114

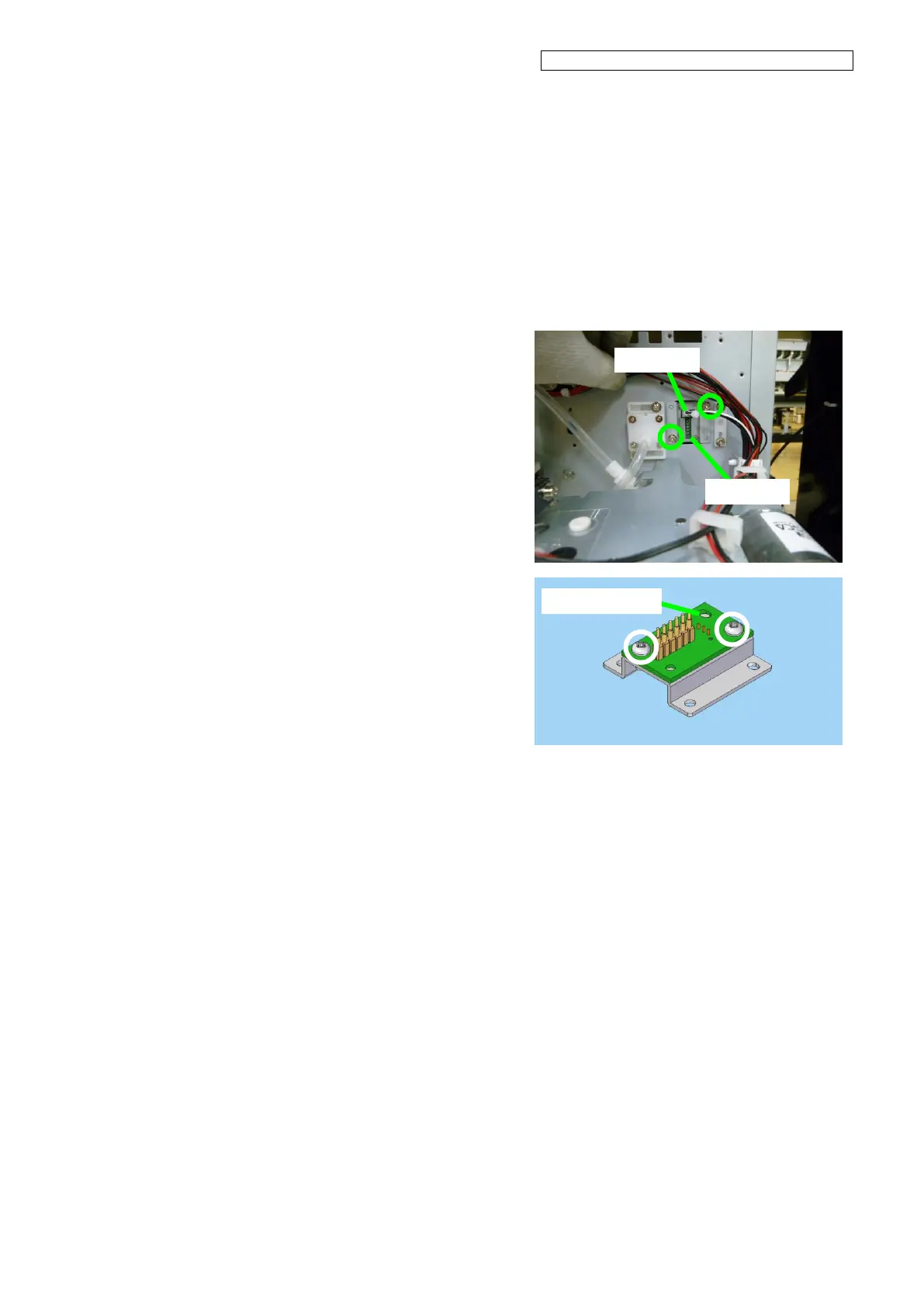

6.12.7 PCB-ASSY-INK4
<Removal>
1. Remove the
COVER(INKBOX-REAR)-MW (see
6.12.4).
2. Disconnect the connector connected to
the PCB-ASSY-INK4.
3. Remove the two screws securing the
BRACKET attached to the
PCB-ASSY-INK4, and remove the
BRACKET.
4. From the BRACKET, remove the
PCB-ASSY-INK4 with two securing
screws.
BRACKET
Connector
PCB-ASSY-INK4
