Oki IP-6620 - 6.15.4 Torque limiter and TUR EM clutch

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-131

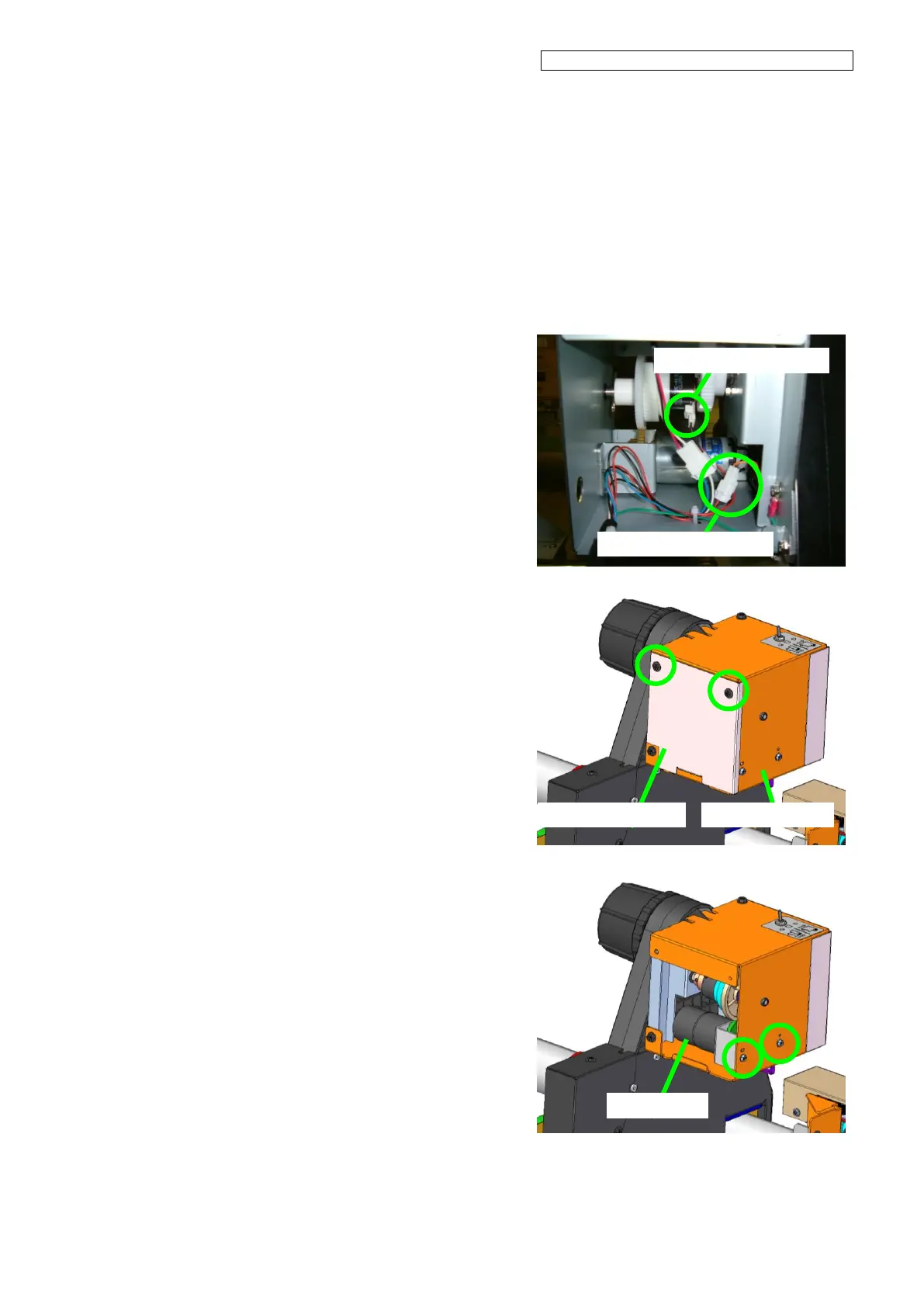

6.15.4 Torque limiter and TUR EM clutch
<Removal>
1. From the GEAR-BOX(2)-MW remove the
COVER-GEAR-BOX with two securing
screws (see 6.15.2).
2. Disconnect the MOTOR-UNIT connector
and the TUR EM clutch connector.
3. From the GEAR-BOX(2)-MW, remove
the COVER-GEAR-BOX-2 with two
securing screws.
4. From the GEAR-BOX(2)-MW, remove
the MOTOR-UNIT with two securing
screws.
EM clutch connector
MOTOR-UNIT connector
GEAR-BOX(2)-MW
COVER-GEAR-BOX-2
MOTOR UNIT
