Oki IP-6620 - 6.15.6 SWITCH(RollEnd)-ASSY

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-135

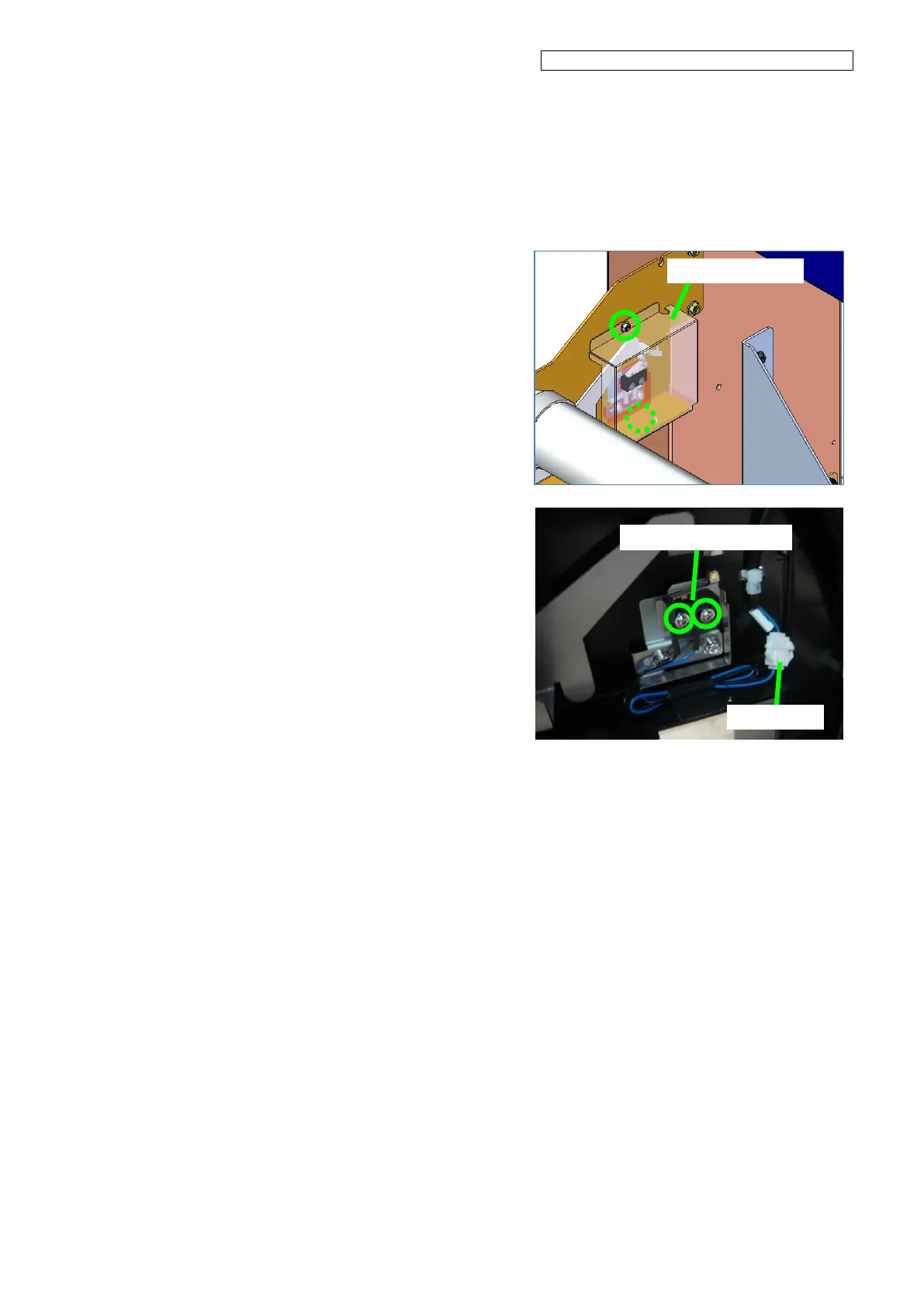

6.15.6 SWITCH(RollEnd)-ASSY
<Removal>
1. Remove the COVER(SW-ME)-MW with
two securing screws.
2. Disconnect the SWITCH(RollEnd)-ASSY
connector.
3. Remove the SWITCH(RollEnd)-ASSY
with two securing screw.
COVER(SW-ME)-MW
Connector
SWITCH(RollEnd)-ASSY
