Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-34

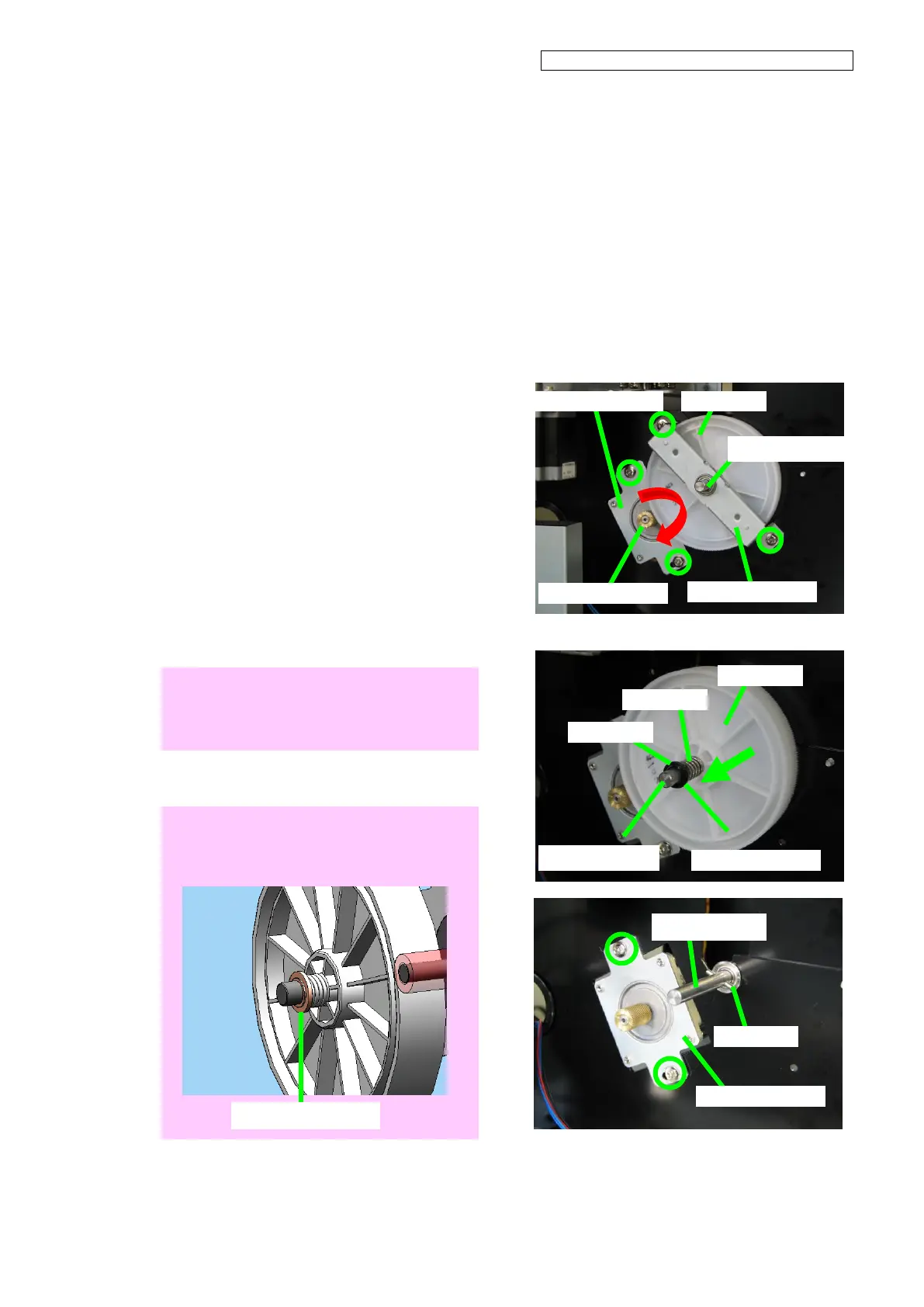

6.5 Disassembling and Reassembling the X Driver
6.5.1 X-MOTOR-ASSY (with PINION)
<Removal>
1. Remove the COVER(SIDE-L)-MW (see
6.3.5).
2. Loosen the two screws securing the
PLATE(X-MOTOR) and move the
PLATE(X-MOTOR) to the arrow direction.
Then separate the PINION(X-MOTOR)
and the GEAR(GR).
3. Remove the two screws securing the
HOLDER(GEAR-GR), and remove the
HOLDER(GEAR-GR) and the bearing.
4. Remove the SPACER(X-MOTOR),
Spring(GR), GEAR(GR), and the parallel
pin from the SHAFT-X-PULLEY.
Note
Be careful not to drop the parallel pin when
removing the GEAR(GR).
Note for installation
Install the SPACER(X-MOTOR) with the
protrusion facing the outside.
SPACER(X-MOTOR)
PLATE(X-MOTOR)
SHAFT-X-PULLEY
Parallel pin
Spring
Bearing
SHAFT-X-PULLEY
SPACER(X-MOTER)
GEAR(GR)
HOLDER(GEAR-GR)
PINION(X-MOTOR)
PLATE(X-MOTOR)
GEAR(GR)
SHAFT-X-PULLEY
