6.10.8 MOTOR(CAPPING)-ASSY
<Removal>

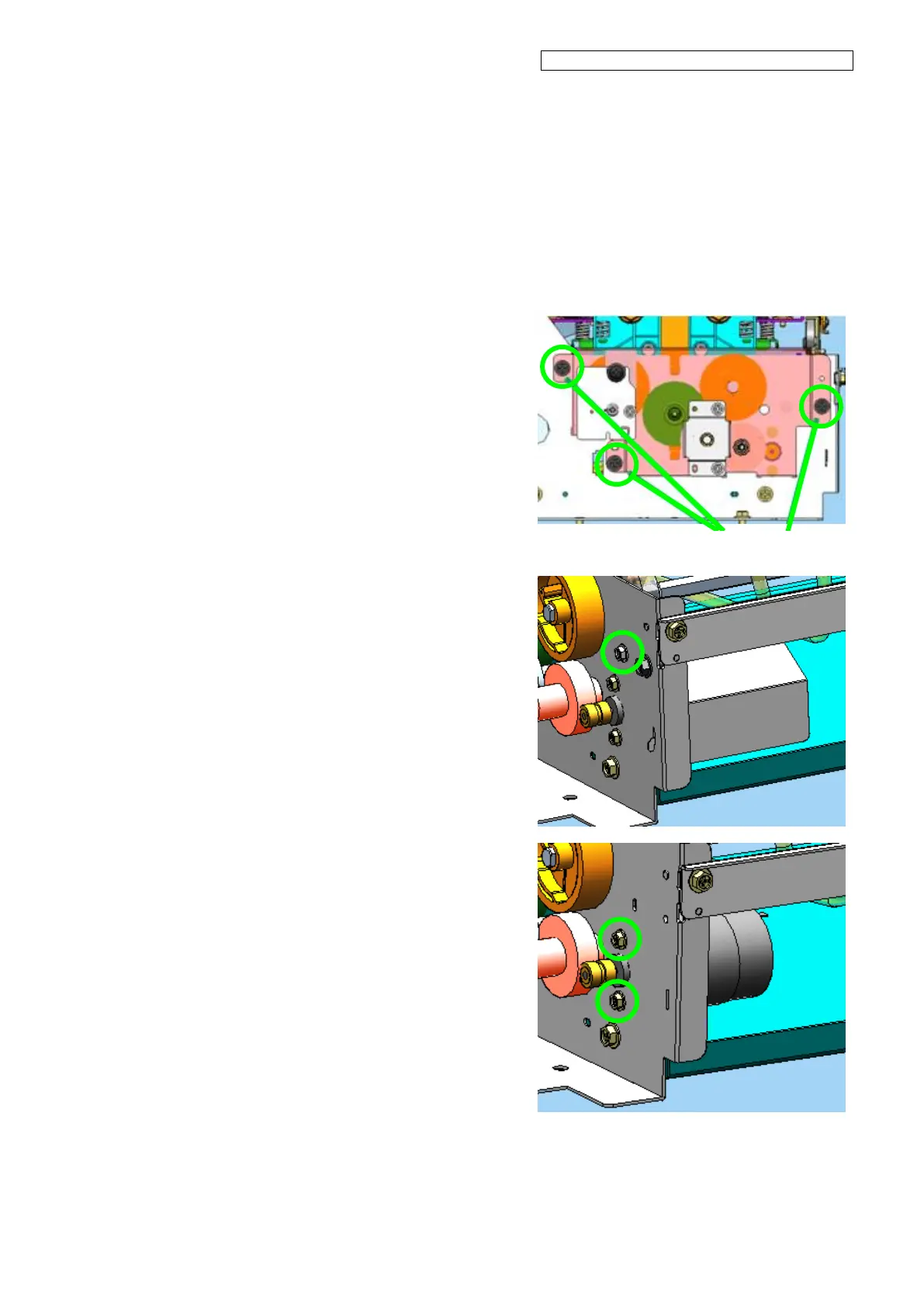

1. Remove the CAPPING-UNIT-MW (see
6.10.1).
2. Remove the BRACKET(GEAR)-HV with
three securing screws.
3. Remove the COVER(MOTOR-HV) with
one securing screw.
4. Remove the MOTOR(CAPPING)-ASSY
with two securing screws.
Screws
