3.7 Management of System Information
System information managed by the engine, such as mechanism adjustment parameters,
counters of print length, and ink cartridge information, is stored in the serial EEPROM.
System information is loaded to the RAM or flash memory as required during operation or for
backup.
The description below explains the information stored in each memory area.
- RAM area: Stores the current system data.
- EEPROM area: Stores the default values of system information at power on.
- Flash memory area: Stores structural data and default data of EEPROM. EEPROM data at
the time of shipping and backup data of EEPROM are stored.

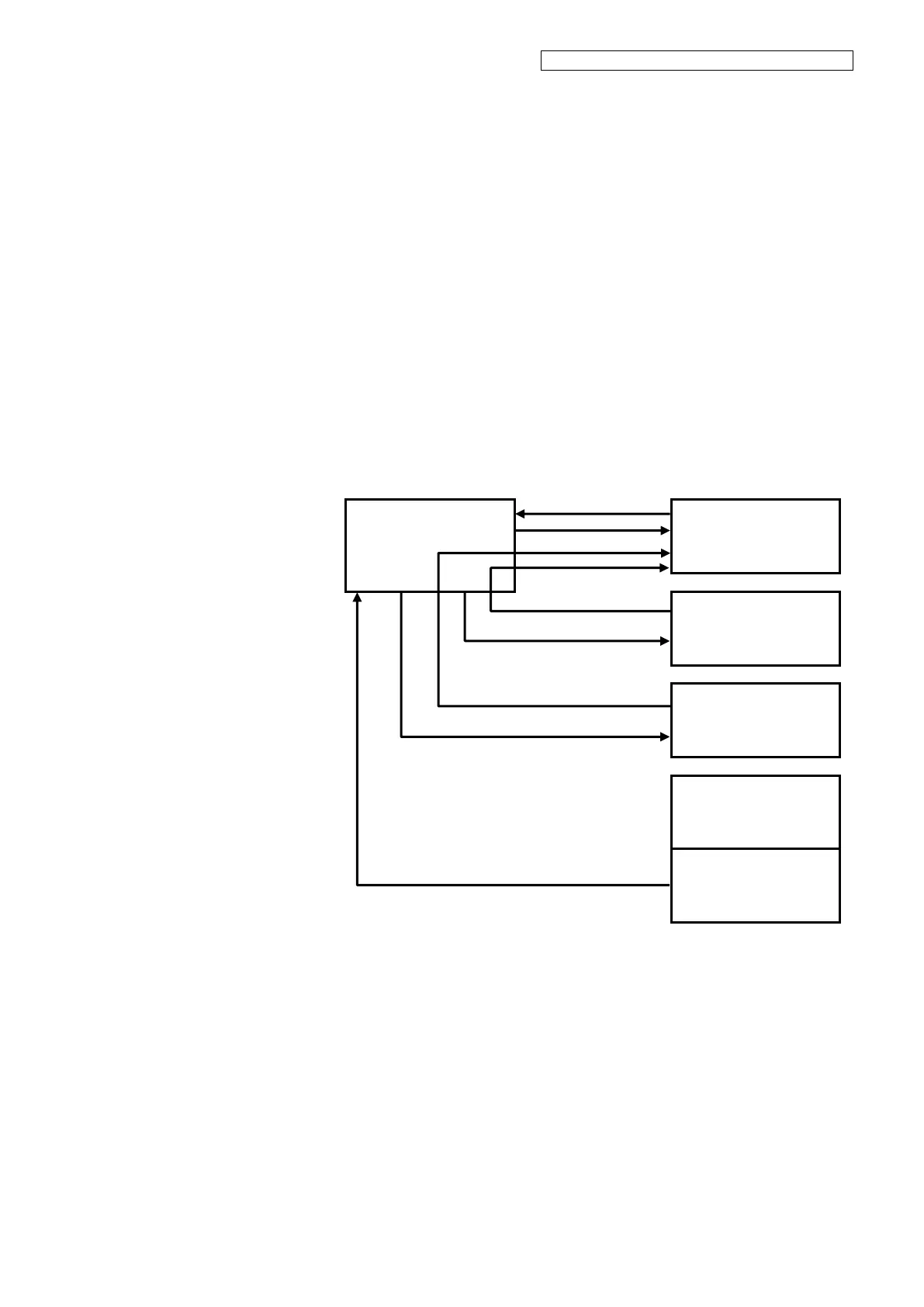

<EEPROM>
Default values of
system information
(8 KB)
<RAM>
Current system data
<Flash>
System backup data
(8 KB)
<Flash>
Factory default
setting area
(8 KB)
<Flash>
Program and data
<Flash>
EEPROM
Structural data and
default data
