Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-16

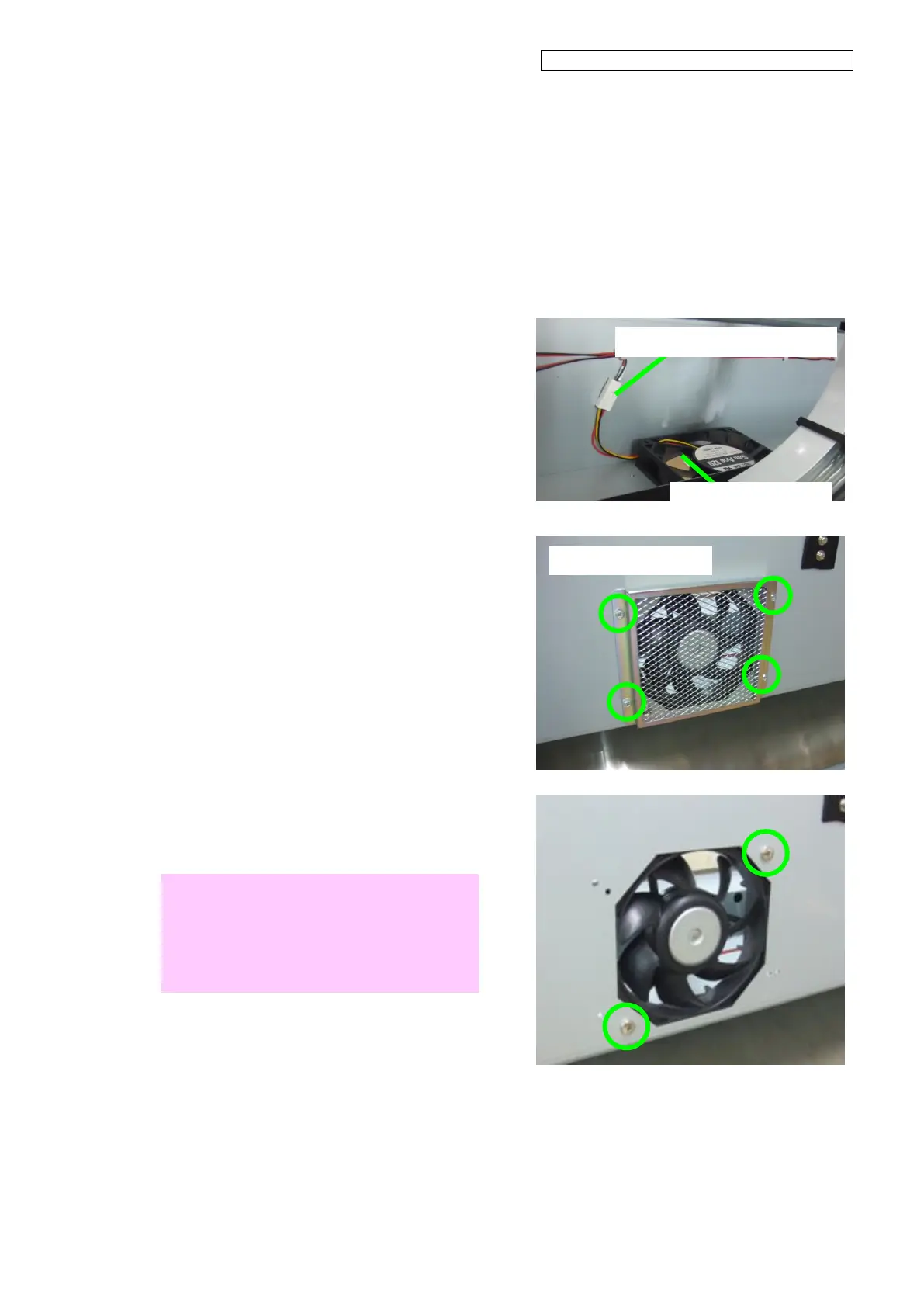

6.3.14 FAN(REAR)ASSY MW
<Removal>
1. Remove the COVER(Y-RAIL)-64-MW
(see 6.3.4).
2. On the upper rear side of the printer,
remove the connector of the
FAN(REAR)ASSY MW to be removed.
3. On the rear side of the printer, remove
the REAR-FAN-COVER-MW with four
fixing screws.
4. Remove the two screws securing each
FAN(REAR)ASSY MW (eight screws in
total).
Note for installation
Orient the fans so that:
- The air flows from the outside to the inside
of the printer; and
- The nameplate faces the inside of the
printer.
FAN(REAR)ASSY MW's connector
FAN(REAR)ASSY MW
REAR-FAN-COVER-MW
