OKI Data Infotech Corporation CONFIDENTIAL

Chapter 6 Parts Replacement (Disassembly/Reassembly)

6-119

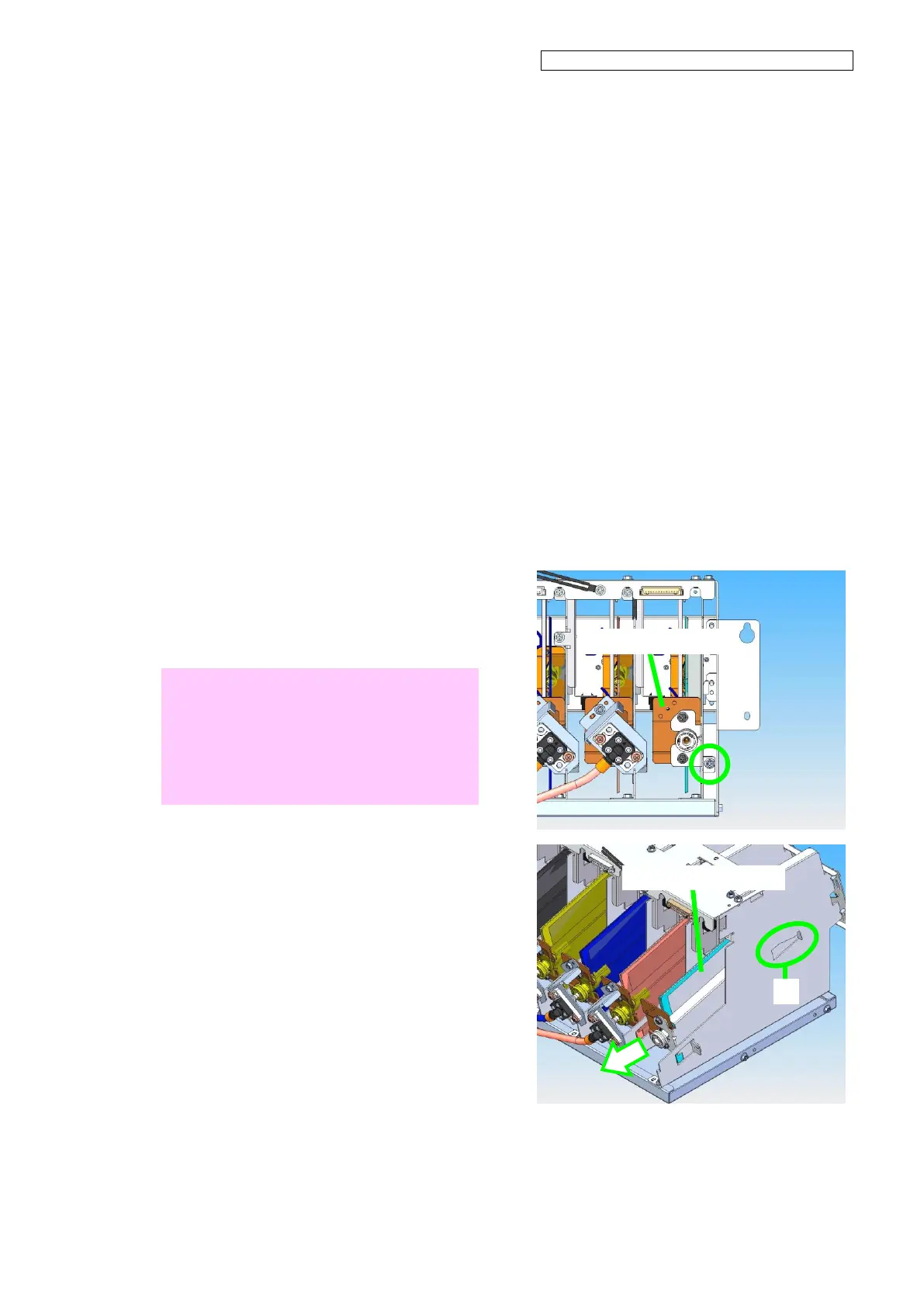

6.13.3 SUBTANK-ASSY(MW)

1. Drain the ink (see Chapter 3).

When all the ink has been drained, turn

off the printer.

2. Remove the

COVER(INKBOX-REAR)-MW (see

6.12.4).

3. Remove the COVER(SUBTANK)-MW

(see 6.3.11).

4. Remove the

NEEDLE-FIX-PLATE-FRONT-ASSY

(see 6.13.1).

5. Remove the screw securing the

SUBTANK-ASSY(MW), and remove the

SUBTANK-ASSY(MW) by sliding it to the

arrow direction.

Note

Note that the SUBTANK-ASSY(MW) is stuck

at the position A shown in the second picture.

So before removing the

SUBTANK-ASSY(MW), at the position A,

slide the SUBTANK-ASSY(MW) slightly to the

arrow direction.

SUBTANK-ASSY(MW)
