Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-77
6.8.10 Ionizer
<Removal>
1. Press the CANCEL button and the
POWER buttons on the operation panel
at the same time to turn the printer off.
Then turn off the main power switch at
the back of the printer.

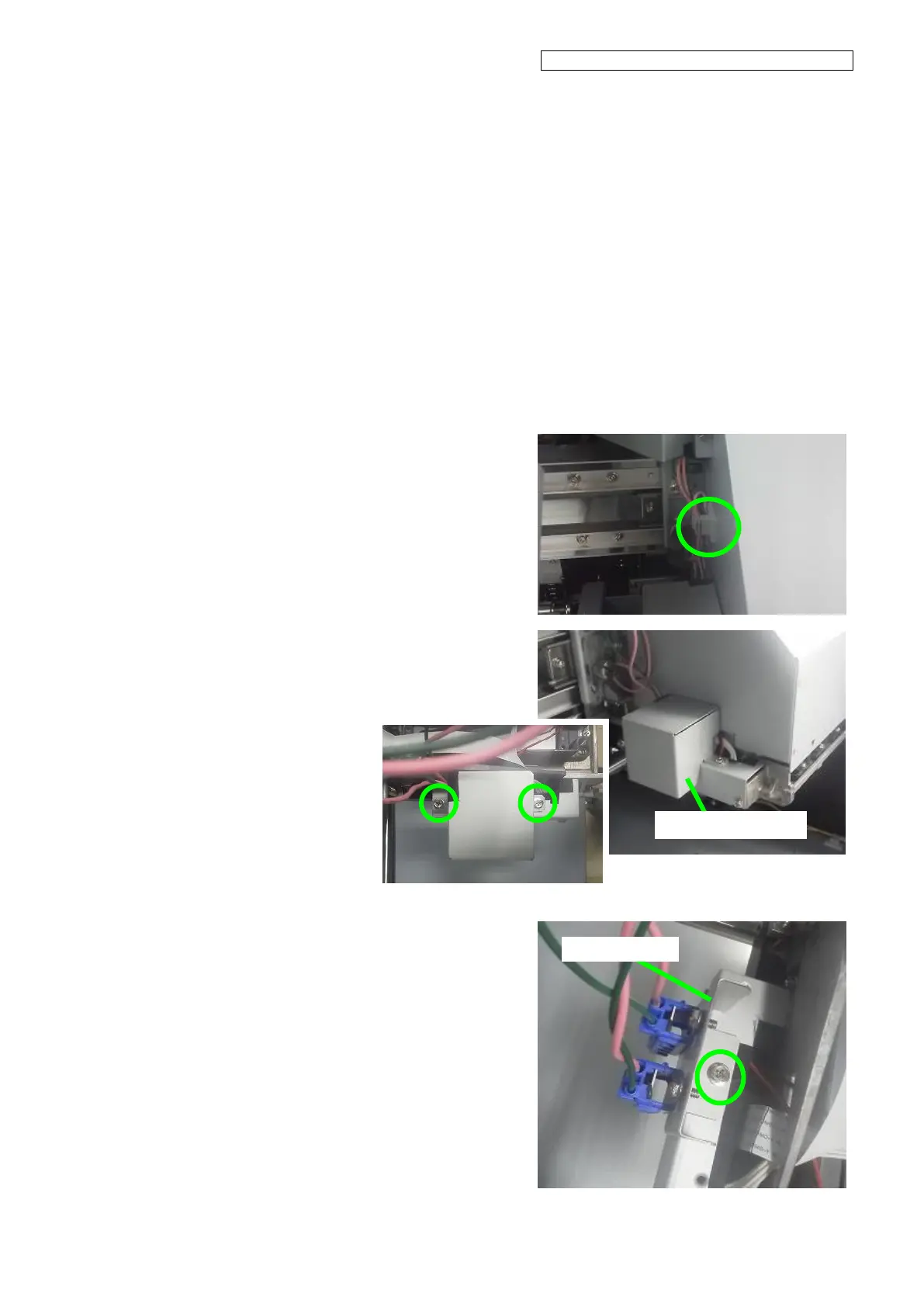

2. Lower the CAPPING-UNIT-MW to move
the carriage to the left.
3. Remove the IONIZER MODULE (+) and
IONIZER MODULE (-) harnesses from
the clamp securing them.
4. Remove the COVER-IONIZER with two
fixing screws.
5. Remove the IONIZER-PLATE and the
fixing screw.
IONIZER-PLATE
COVER-IONIZER
