6.8.6 LINEAR ENCODER ASSY(MW)
<Removal>
1. Open the COVER(FRONT)ASSY-MW
(see 6.3).
2. Lower the CAPPING-UNIT-MW to move
the carriage to the maintenance area.
3. Open:
- COVER-CARRIAGE-MW; and
- COVER(HCB1).
4. Disconnect the LINEAR ENCODER
ASSY(MW) connector from the
PCB-ASSY-HCB1M (see 6.8.4).
5. Remove:
- One screw securing the
ANGLE-ENCODER-S-MW to the
carriage;
- LINEAR ENCODER ASSY(MW);
- BRACKET-ENCODER-S; and
- ANGLE-ENCODER-S-MW.
6. Remove the two screws securing the
LINEAR ENCODER ASSY(MW). Then
cut the insulok cable tie fixed to the
BRACKET-ENCODER-S, and remove
the LINEAR ENCODER ASSY(MW).

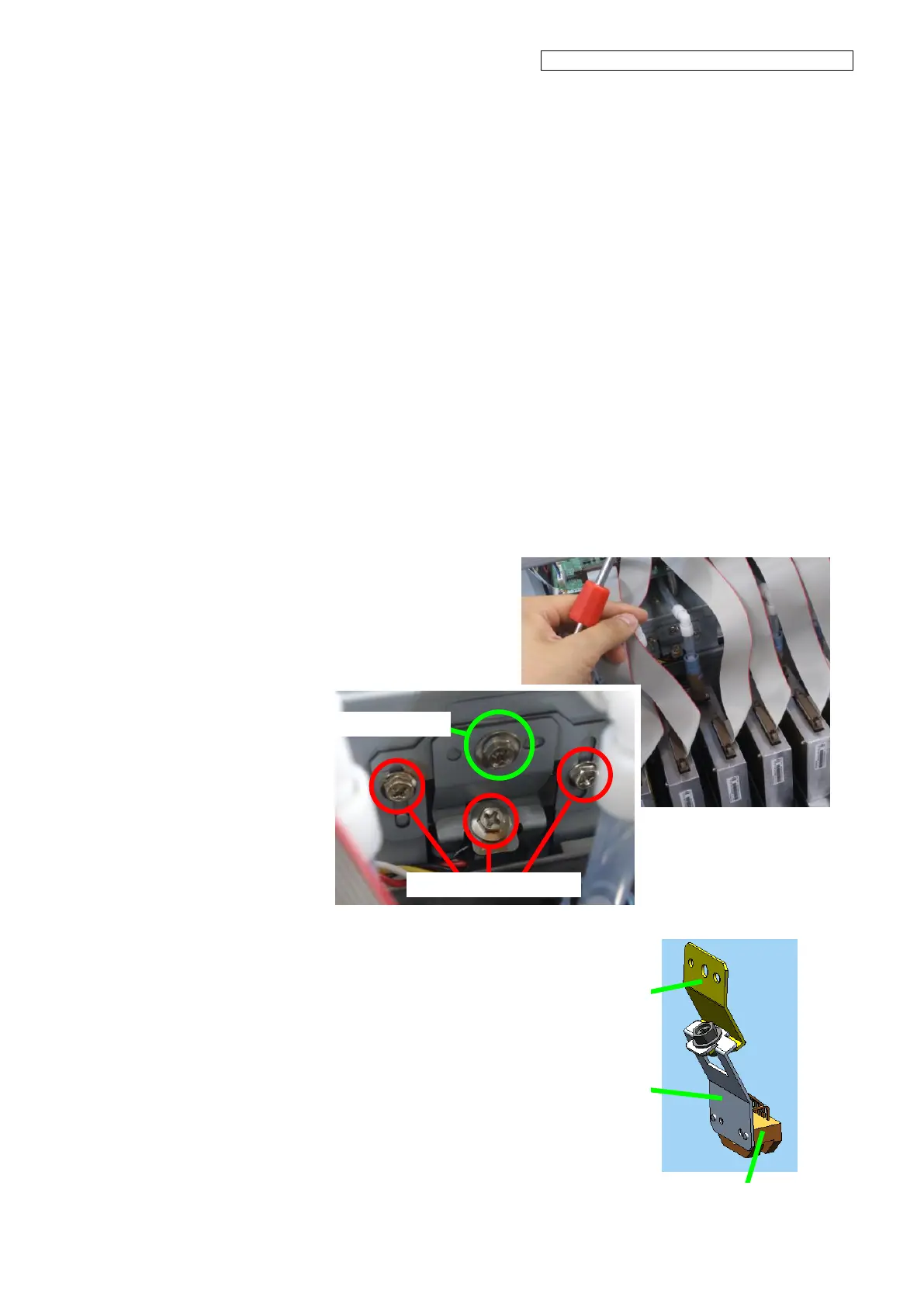

Screw to remove
Do not loosen these screws
LINEAR ENCODER ASSY(MW)
BRACKET-ENCODER-S
ANGLE-ENCODER-S-MW
