Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-128
6.15.2 MOTOR-UNIT
<Removal>

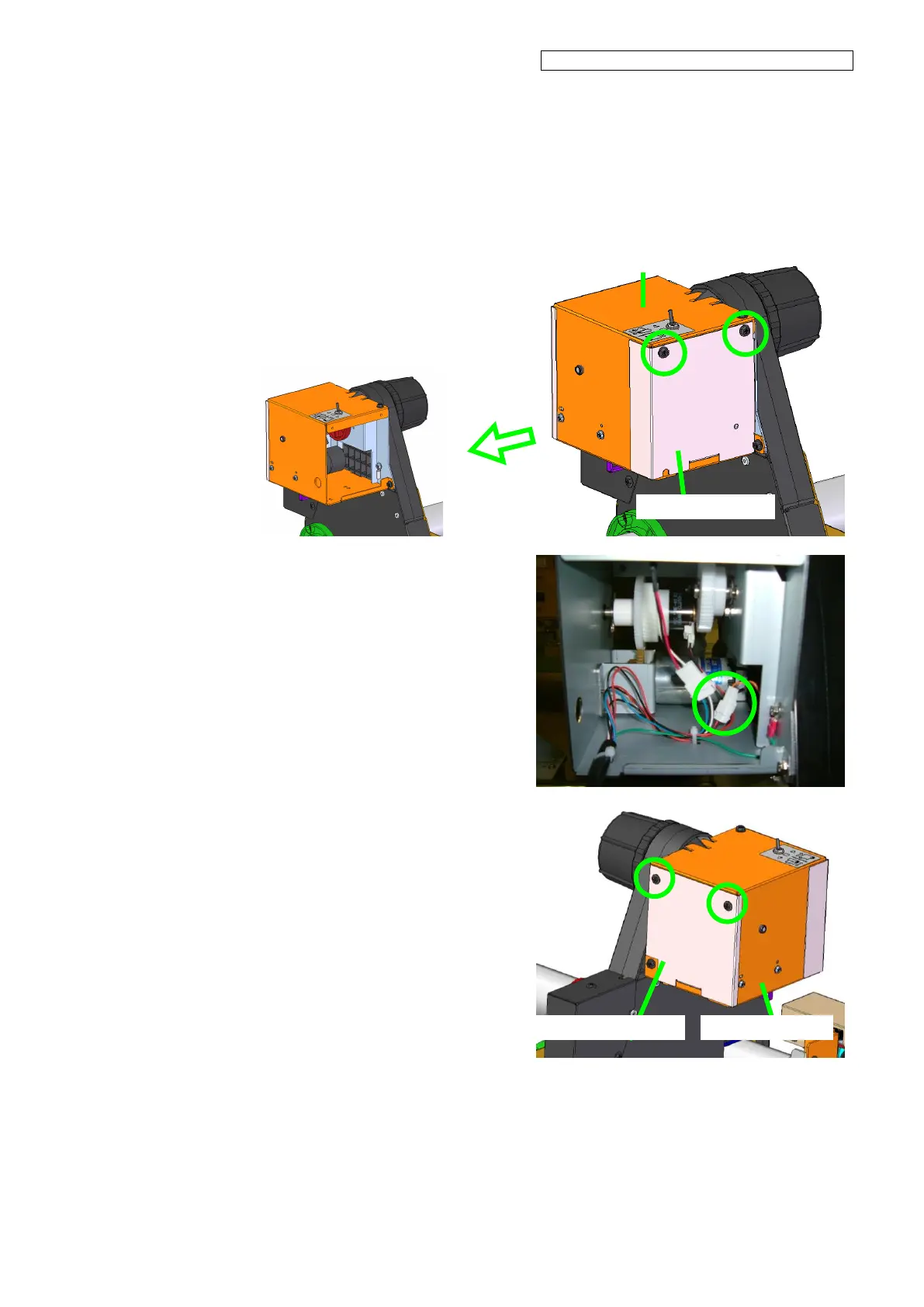

1. From the GEAR-BOX(2)-MW, remove
the COVER-GEAR-BOX with two
securing screws.
2. Disconnect the MOTOR-UNIT connector.
3. From the GEAR-BOX(2)-MW, remove
the COVER-GEAR-BOX-2 with two
securing screws.
GEAR-BOX(2)-MW
COVER-GEAR-BOX
GEAR-BOX(2)-MW
COVER-GEAR-BOX-2
