Oki IP-6620 - 6.15.3 CABLE(TU-Switch)-ASSY

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-130
6.15.3 CABLE(TU-Switch)-ASSY
<Removal>

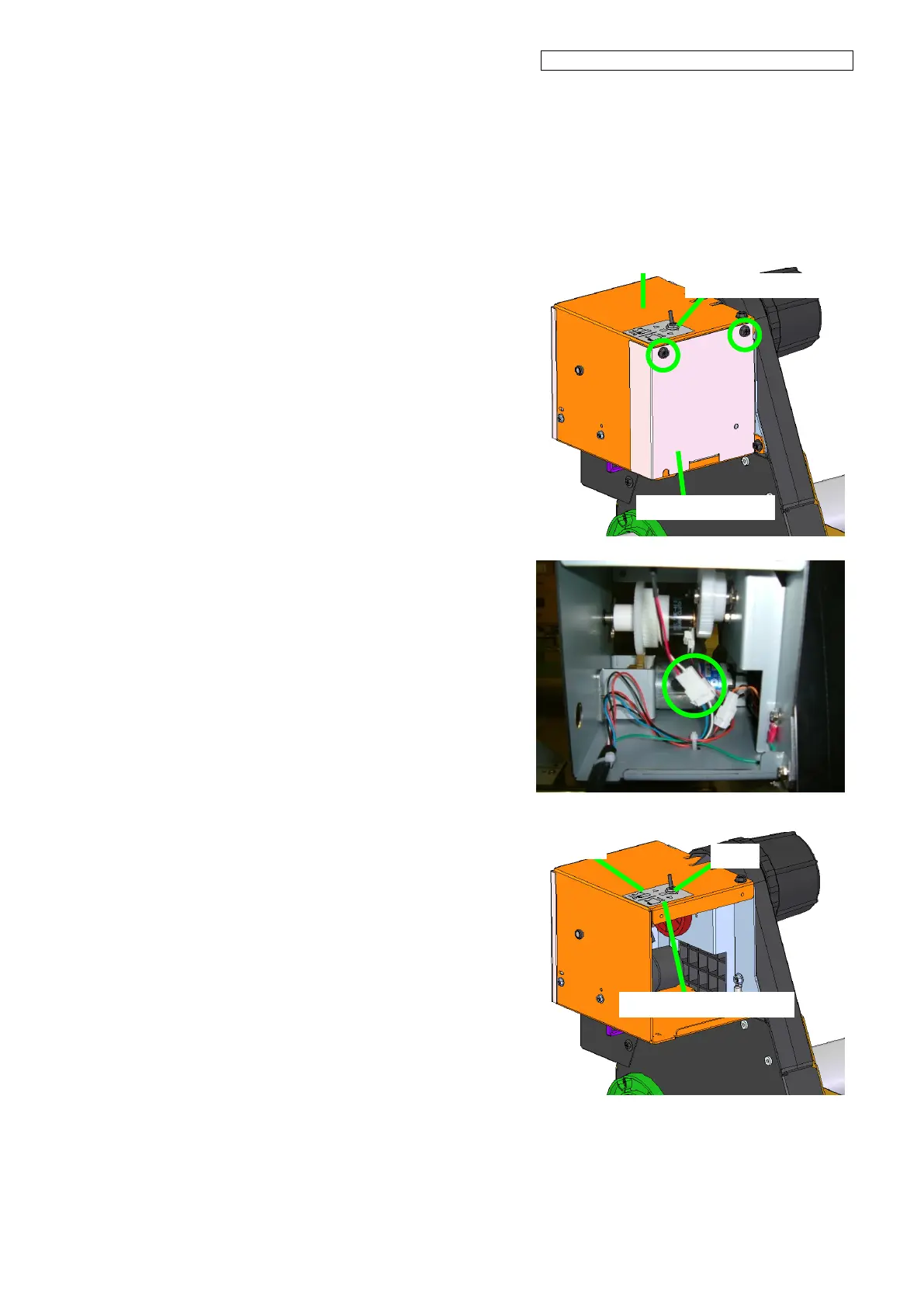

1. From the GEAR-BOX(2)-MW, remove
the COVER-GEAR-BOX with two
securing screws (see 6.15.2).
2. Disconnect the
CABLE(TU-Switch)-ASSY connector.
3. From the GEAR-BOX(2)-MW, remove
the CABLE(TU-Switch)-ASSY with two
securing parts below:
- One nut
- One tooth lock washer.
CABLE(TU-Switch)-ASSY
GEAR-BOX(2)-MW
COVER-GEAR-BOX
CABLE(TU-Switch)-ASSY
Washer
Nut
