Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-48

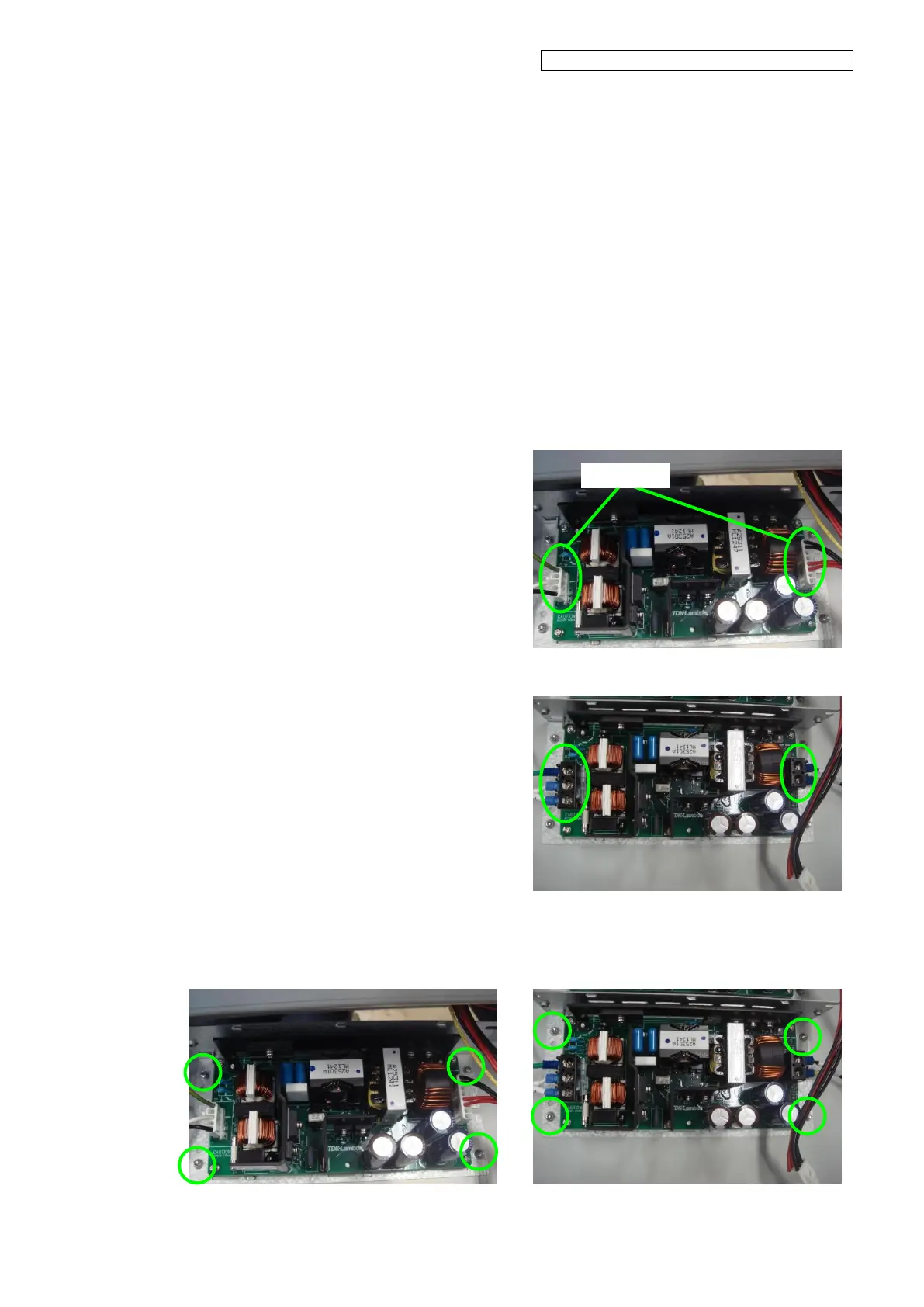

6.6.3 POWER SUPPLY
<Removal>
1. Before starting the procedure, be sure to
disconnect the power cord from the
outlet.
2. Open the POWER-BOX (see 6.6).
3. Remove the harness from the clamp and
disconnect the connector.
4. For the POWER SUPPLY(24V):
Disconnect the two connectors.
For the POWER SUPPLY(36V):
Loosen the five screws and disconnect
the wires.
5. Remove:
- POWERSUPPLY:
POWER SUPPLY(24V) or the
POWER SUPPLY(36V); and
- Four fixing screws.
Connectors
POWER SUPPLY(24V)
POWER SUPPLY(36V)
POWER SUPPLY(36V)
POWER SUPPLY(24V)
