Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-137

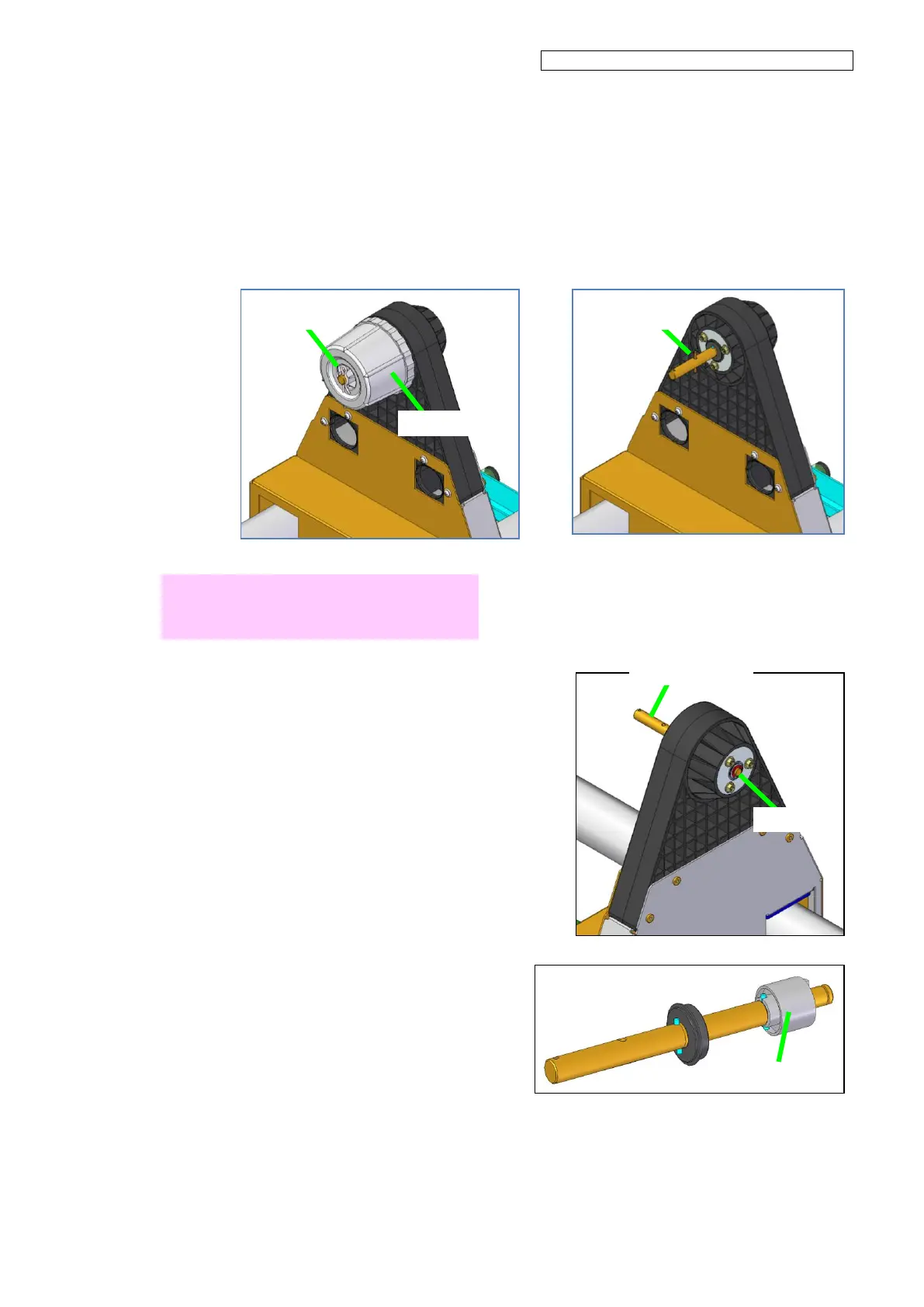

6.15.8 TORQUE LIMITER 1500C
<Removal>
1. Remove the R pin and flange.
Note
Pay attention not to lose the R pin and the
parallel pin.
2. Remove the E ring and remove the
SHAFT(FLANGE).
3. Remove the TORQUE LIMITER 1500C.
R pin
Flange
Parallel pin
SHAFT(FLANGE)
E ring
TORQUE LIMITER 1500C
