6.8.7 FAN(EL UNIT)ASSY MW
<Removal>
1. Remove the following parts (see 6.3).
- COVER(FRONT)ASSY-MW;
- COVER(L)ASSY-MW;
- COVER(Y-RAIL)-SL-MW;
- COVER(SIDE-L)-MW;
- COVER(R-L)-MW; and
- STAY(HANDLE-L)-MW
2. Lower the CAPPING-UNIT-MW to move
the carriage to the left.
3. Remove the following parts.
- COVER-CARRIAGE-MW
- COVER(HCB1)
4. Disconnect the FAN(EL UNIT)ASSY MW
relay connectors, and remove the two
screws securing the FAN(EL UNIT)ASSY
MW to the printer back.
5. Without pulling the connector, remove
the FAN(EL UNIT)ASSY MW with four
fixing screw.

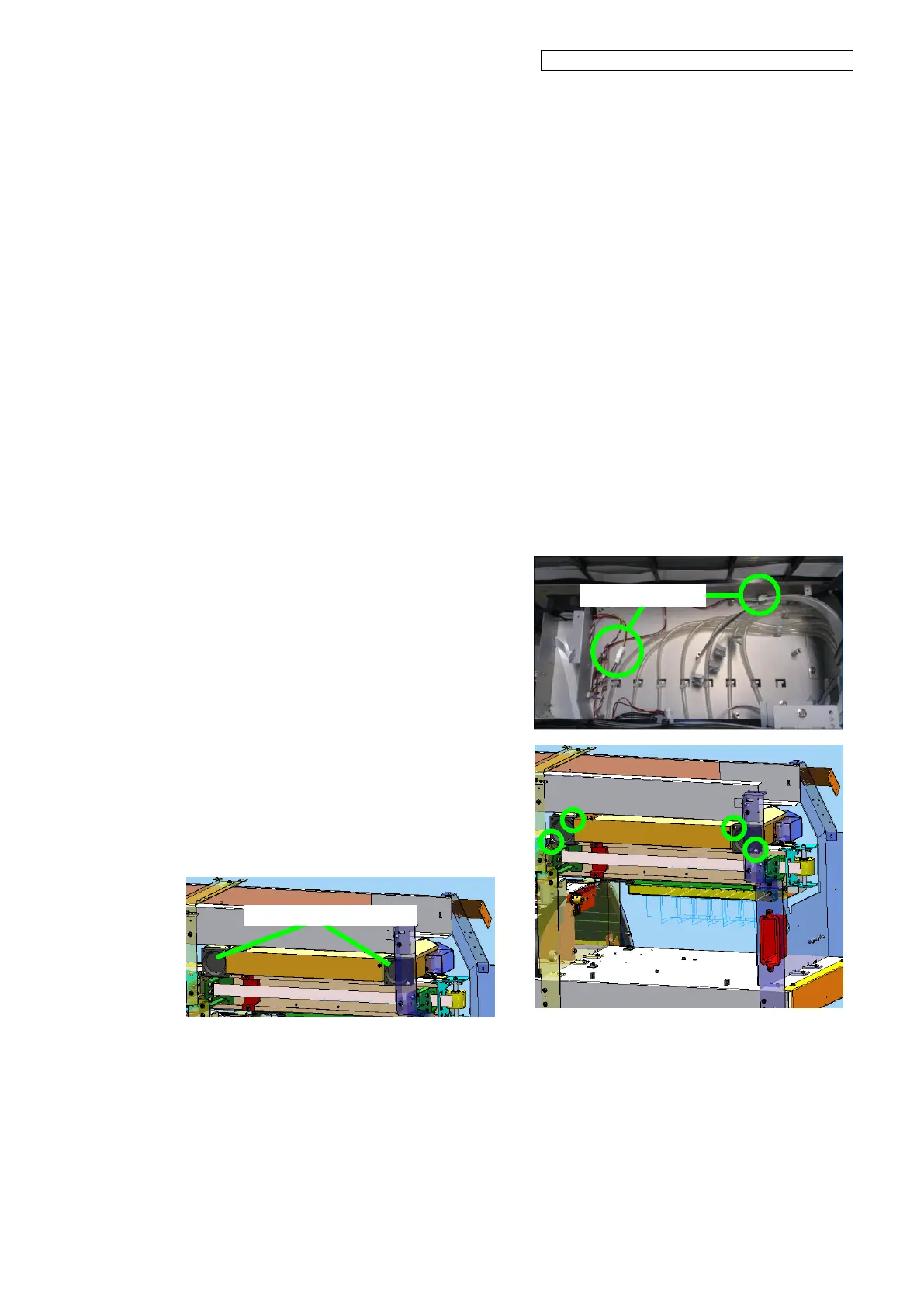

FAN(EL UNIT)ASSY MW
Relay connectors
