6.3.2 COVER(L)ASSY-MW, and COVER(R)ASSY-MW

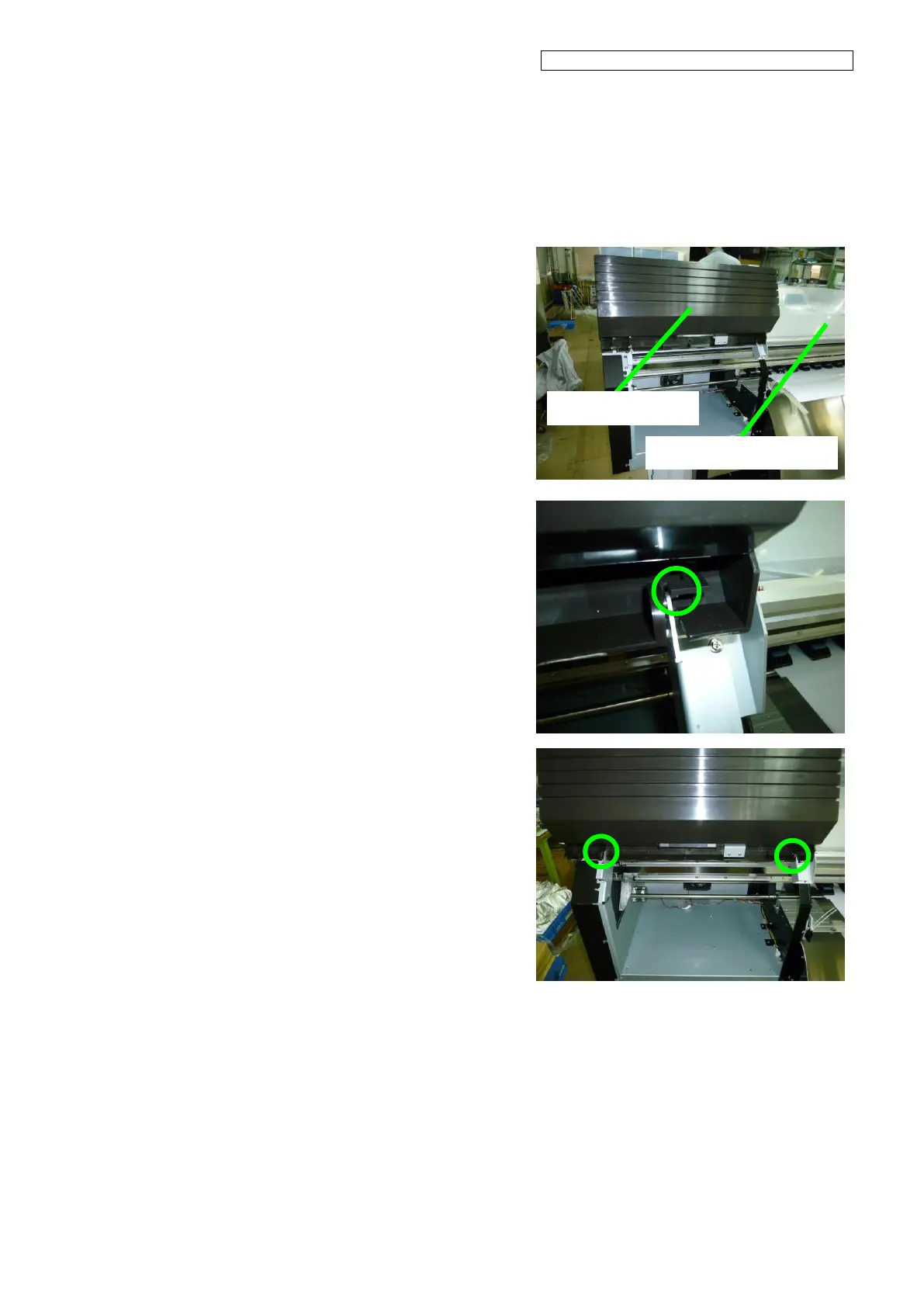

<Removal>
1. Open the COVER(FRONT)ASSY-MW.
2. Open the COVER(L)ASSY-MW (or
COVER(R)ASSY-MW).
3. Bend upward the tab on the right hinge.
4. Slide the COVER(L)ASSY-MW (or
COVER(R)ASSY-MW) to the left,
remove the right and left hinges, and
remove the cover.
COVER(FRONT)ASSY-MW
COVER(L)ASSY-MW
