Oki IP-6620 - 6.3.12 SWITCH(Interlock)-ASSY and SWITCH(COVER)-ASSY

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-13

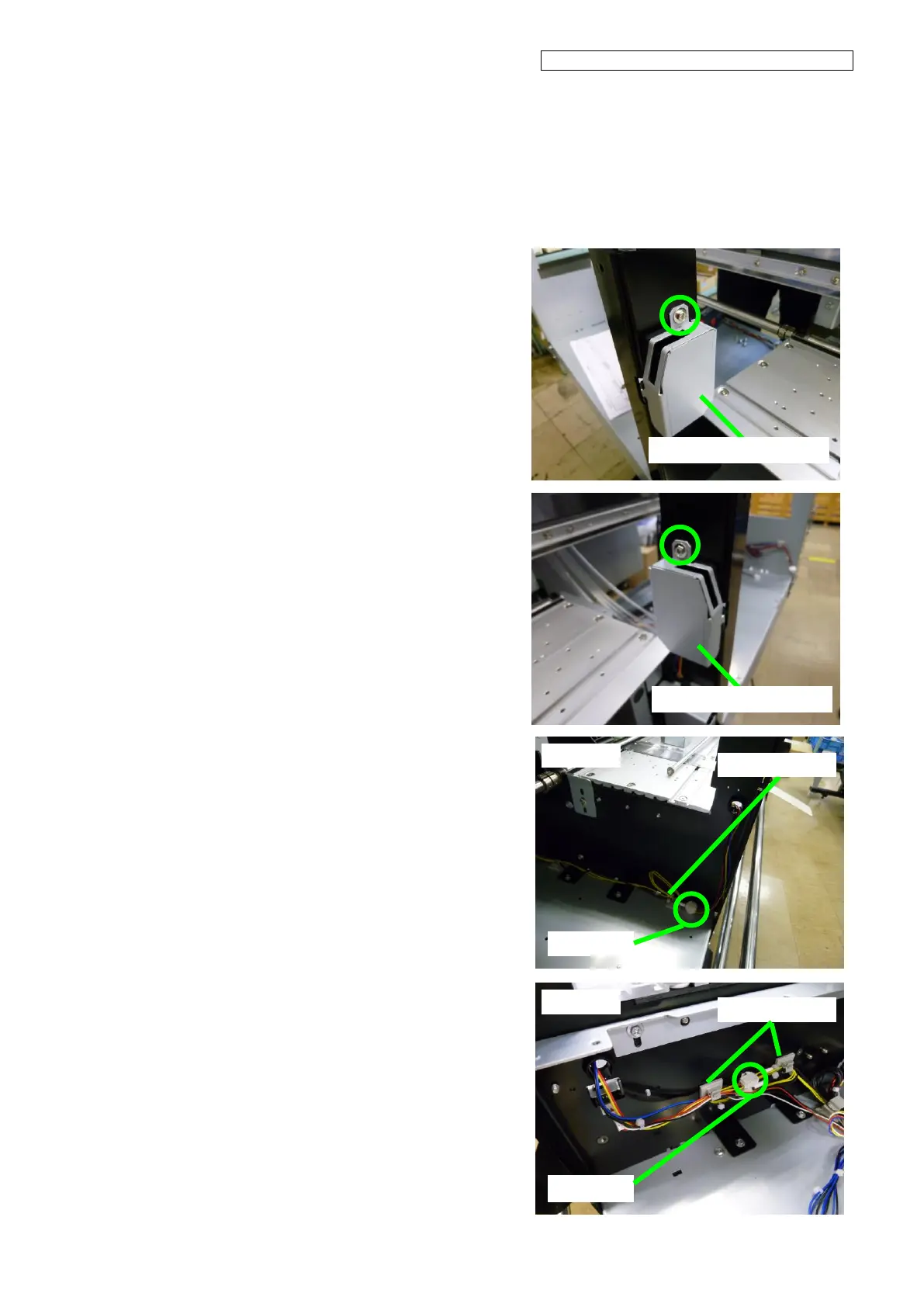

6.3.12 SWITCH(Interlock)-ASSY and SWITCH(COVER)-ASSY
<Removal>
1. Open the COVER(FRONT)ASSY-MW,
and remove the following:
- COVER(SENSOR-L)-MW or
COVER(SENSOR-R)-MW; and
- One fixing screw
2. Disconnect the connector connecting the
SWITCH(Interlock)-ASSY cable with the
SWITCH(COVER)-ASSY cable, and
remove the cables from the three clamps
(one on the left side and two on the right
side).
Left side
Connector
Cable clamp
Cable clamp
Connector
Right side
COVER(SENSOR-L)-MW
COVER(SENSOR-R)-MW
