Oki IP-6620 - 6.3.6 COVER(SIDE-L)-MW

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-8
6.3.6 COVER(SIDE-L)-MW
<Removal>

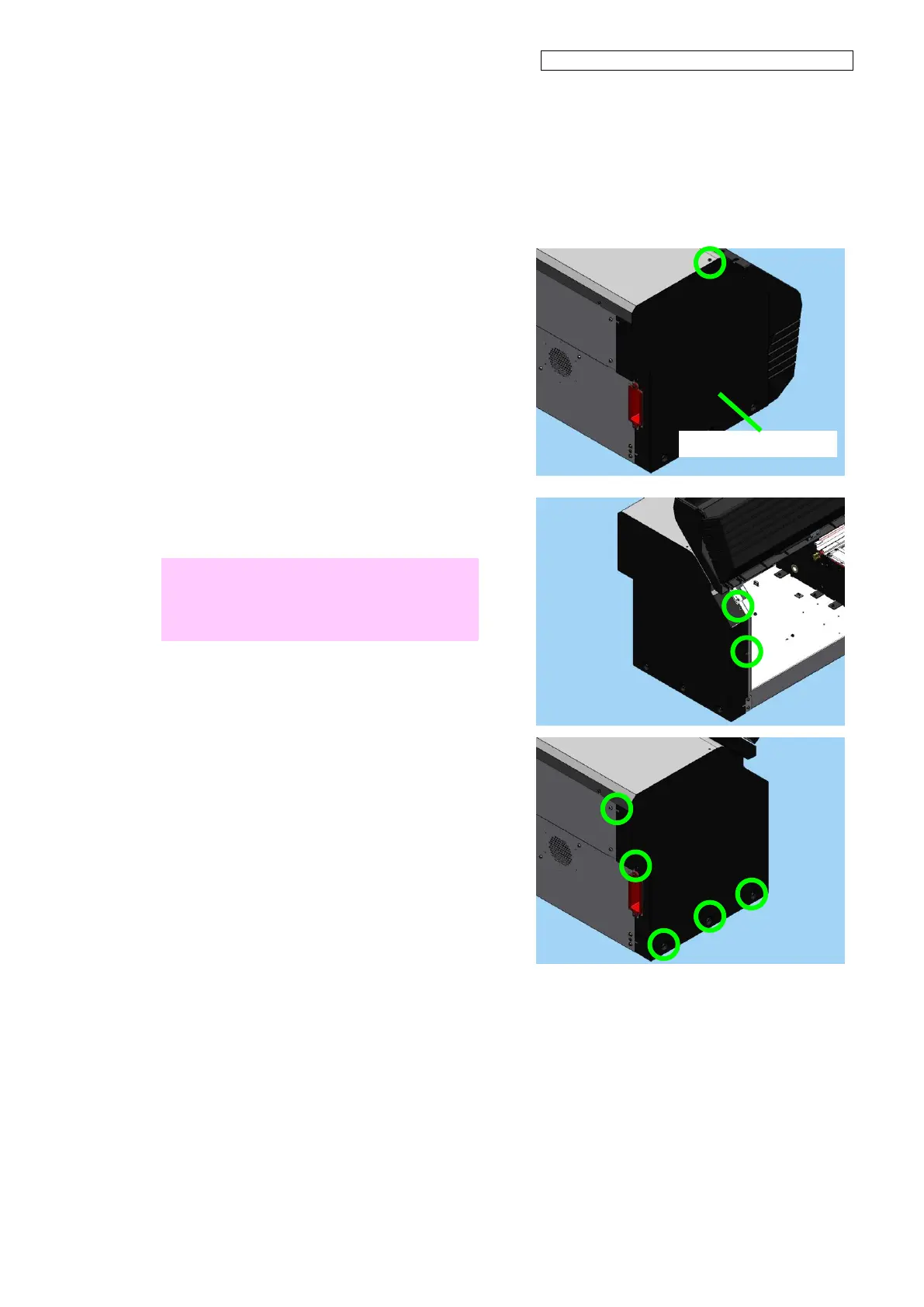

1. Remove the screw securing the
COVER(SIDE-L)-MW.
2. Open the COVER(FRONT)ASSY-MW
and the COVER(L)ASSY-MW.
3. Remove the COVER(SIDE-L)-MW with
seven fixing screws.
Note
Remove the COVER(SIDE-L)-MW while
holding it with your hand to prevent it from
falling.
COVER(SIDE-L)-MW
