Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-123
6.14.3 PLATEN64-MW-ASSY
<Removal>
1. Remove the following parts (see 6.14.4).
- EDGE-GUARD-SET(L)-MW
- EDGE-GUARD-SET(R)-MW
2. Remove the
PAPER-GUIDE-DELIVERY64-MW-ASSY
(see 6.14.1).

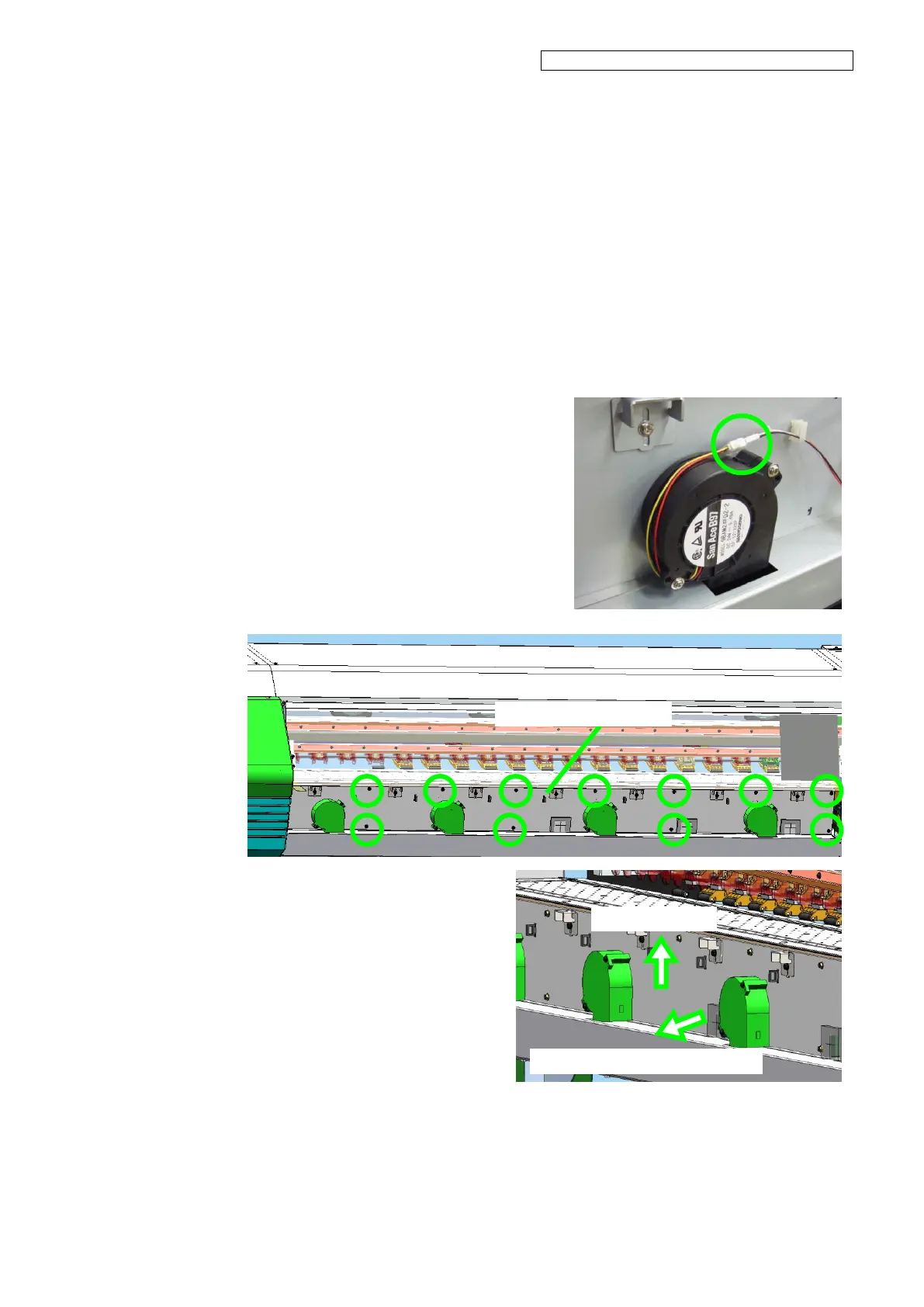

3. Disconnect the four SUCTION FAN
connectors, and then remove the 11
screws securing the
STAY-AIRDUCT-FS64-MW in order to
remove it.
Hold the SUCTION FAN, then raise the
STAY-AIRDUCT-FS64-MW and pull it
toward you to remove it.
First raise
Then pull the TAY-AIRDUCT-FS64-MW
STAY-AIRDUCT-FS64-MW
