Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-124

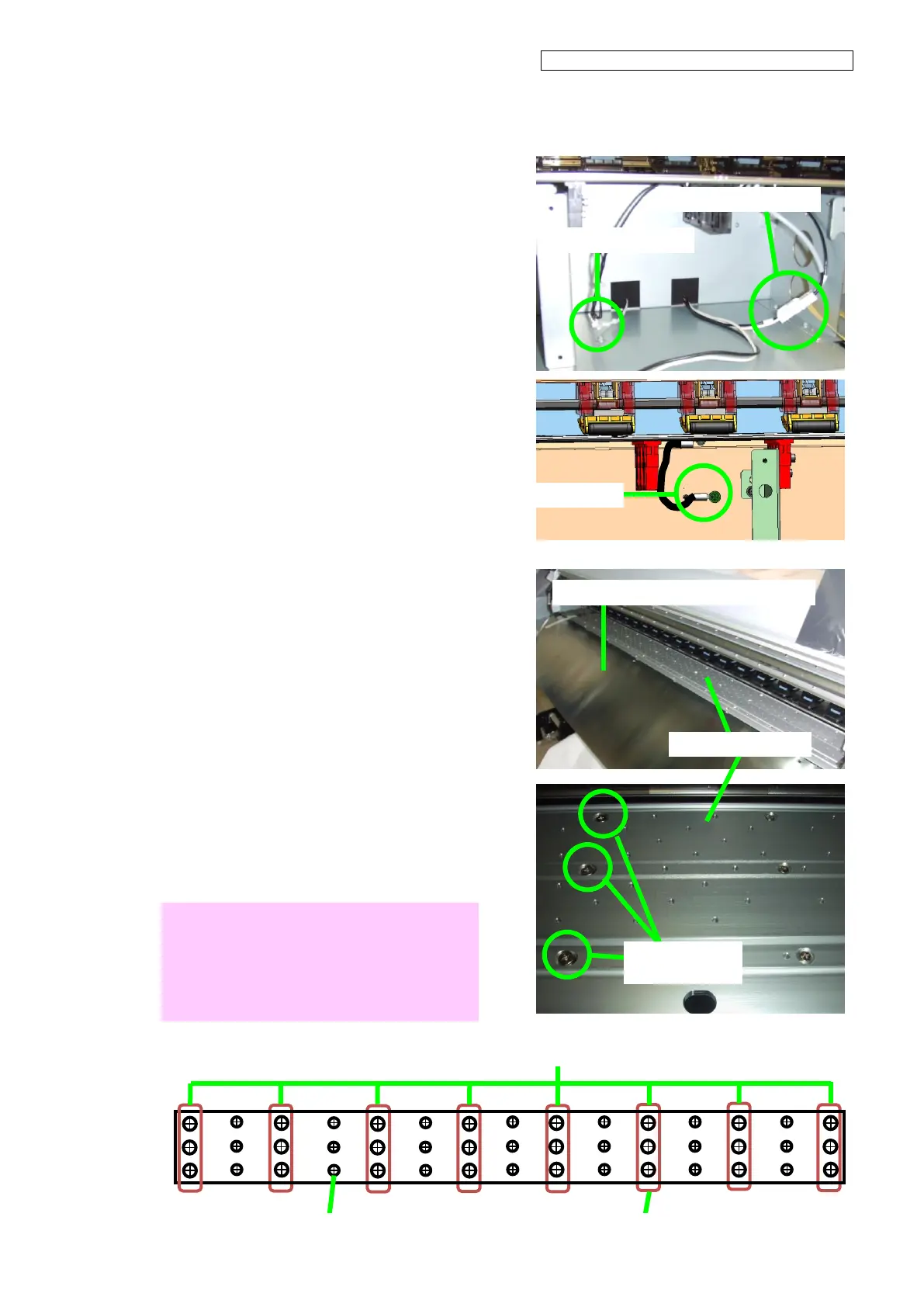

3. Remove the screw to disconnect the
ground wire under the
PLATEN64-MW-ASSY, and disconnect
the following connectors.
- One heater connector
- One thermistor connector.
Remove the following cables:
- One ground wire;
- One heater cable; and
- One thermistor cable.
4. Remove the PLATEN64-MW with:
- 24 securing screws (eight rows of
three screws)
- 24 washers (eight rows of three
washers).
Note
Some of the rows of three screws in the eight
rows do not need to be removed depending
on the screw head size. The screws with the
big heads need to be removed, while those
with the small heads do not.
Ground wire screw
Thermistor connector
Platen heater connector
PAPER-GUIDE-DELIVERY64-MW-ASSY
PLATEN64-MW-ASSY
Eight rows of three
screws to remove
Maintenance area side
Capping unit side
Screws to remove
Screw head is small (do not remove)
Screw head is big (remove)
