Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-126

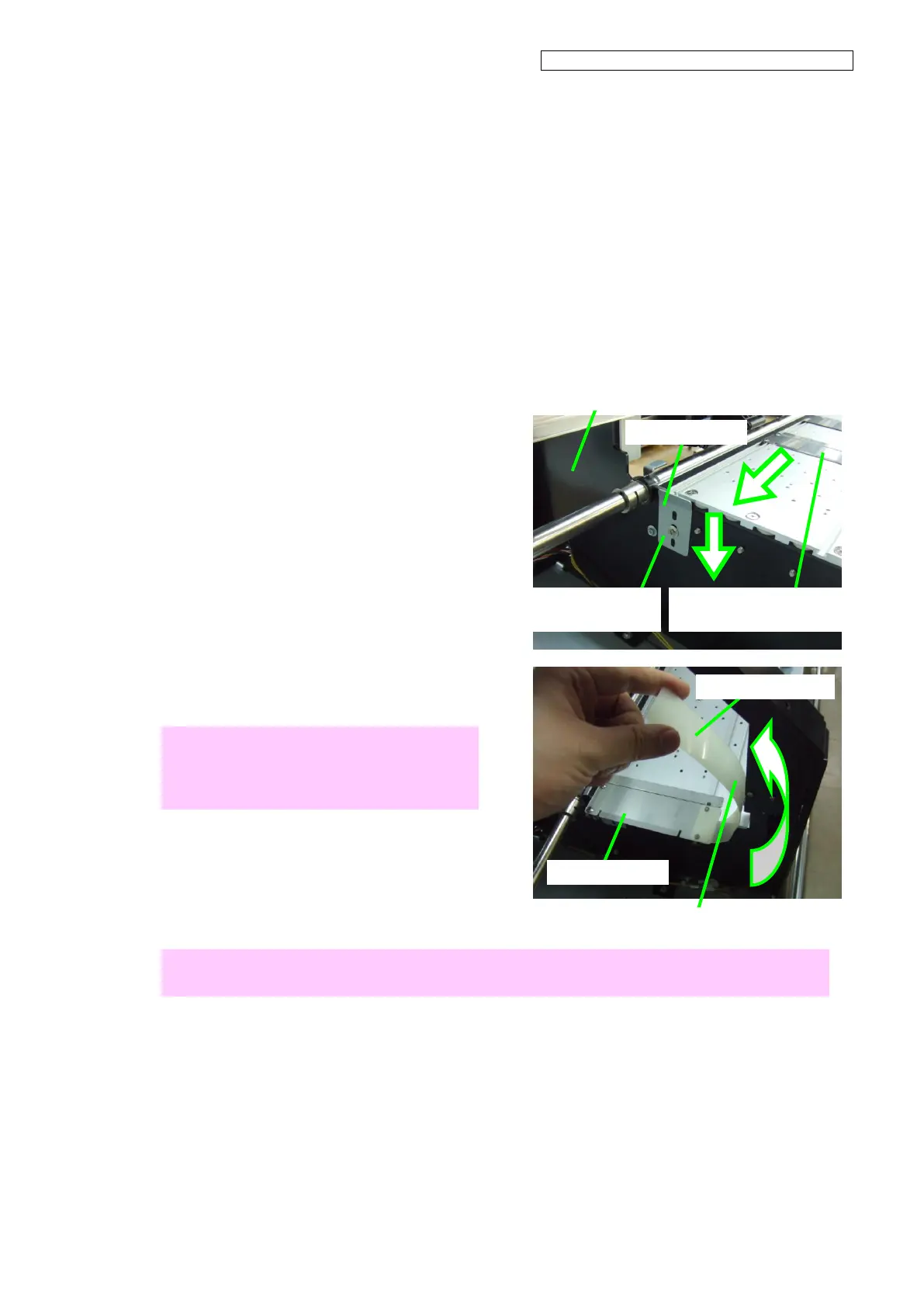

6.14.4 EDGE-GUARD-SET(L)-MW and EDGE-GUARD-SET(R)-MW
<Removal>
1. Open the following parts (see 6.3).
- COVER(FRONT)ASSY-MW;
- COVER(L)ASSY-MW.
2. Loosen the screw securing the
EG-STOPPER-MW, and slide the
EG-STOPPER-MW downward.
3. From the PLATEN64-MW-ASS remove
the EDGE-GUARD-SET(L)－MW and
EDGE-GUARD-SET(R)-MW with the
procedure below.
(1) Slide the both of the two below to the
left:
- EDGE-GUARD-SET(L)-MW
- EDGE-GUARD-SET(R)-MW.
(2) Slightly bend the
EG-LONG-SHEET-MW to the printer
rear.
(3) Make the two edge guards pass the
PLATE-LEFT-1-ASSY-MW, then
remove them.
Note
When installing or removing the
EG-LONG-SHEET-MW, do not bend it
strongly as you may deform it.
Note for installation
When installing the EG-STOPPER-MW, check that the protrusion is inside the long hole.
EDGE-GUARD-SET
EG-LONG-SHEET-MW
Bend the sheet gently.
Slide the EDGE-GUARD-SET
to the left
Loosen the screw
and slide downward
EG-STOPPER-MW
PLATE-LEFT-1-ASSY-MW
