Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-72
6.8.9 FFC-ADJ
<Removal>
1. Remove the PCB-ASSY-ADJ1 (see
6.8.8).
2. Remove the COVER(L)ASSY-MW and
the COVER(Y-RAIL)-SL-MW (see 6.3).
3. Remove the COVER-CARRIAGE-MW
(see 6.7.1).

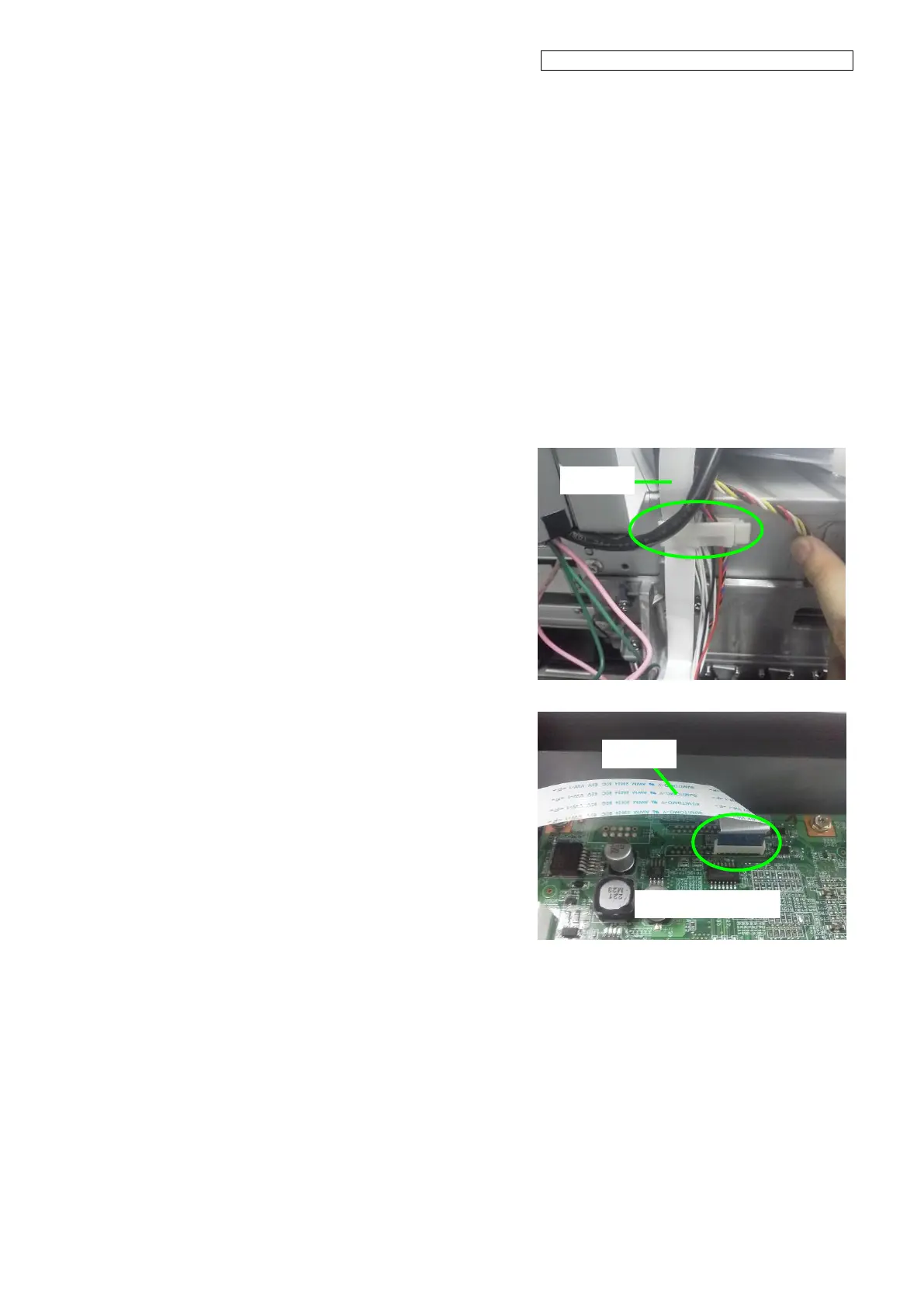

4. Remove the FFC-ADJ from the clamp
securing it.
5. Remove the FFC-ADJ from the
PCB-ASSY-HCB1M.
FFC-ADJ
PCB-ASSY-HCB1M
FFC-ADJ
