Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-98

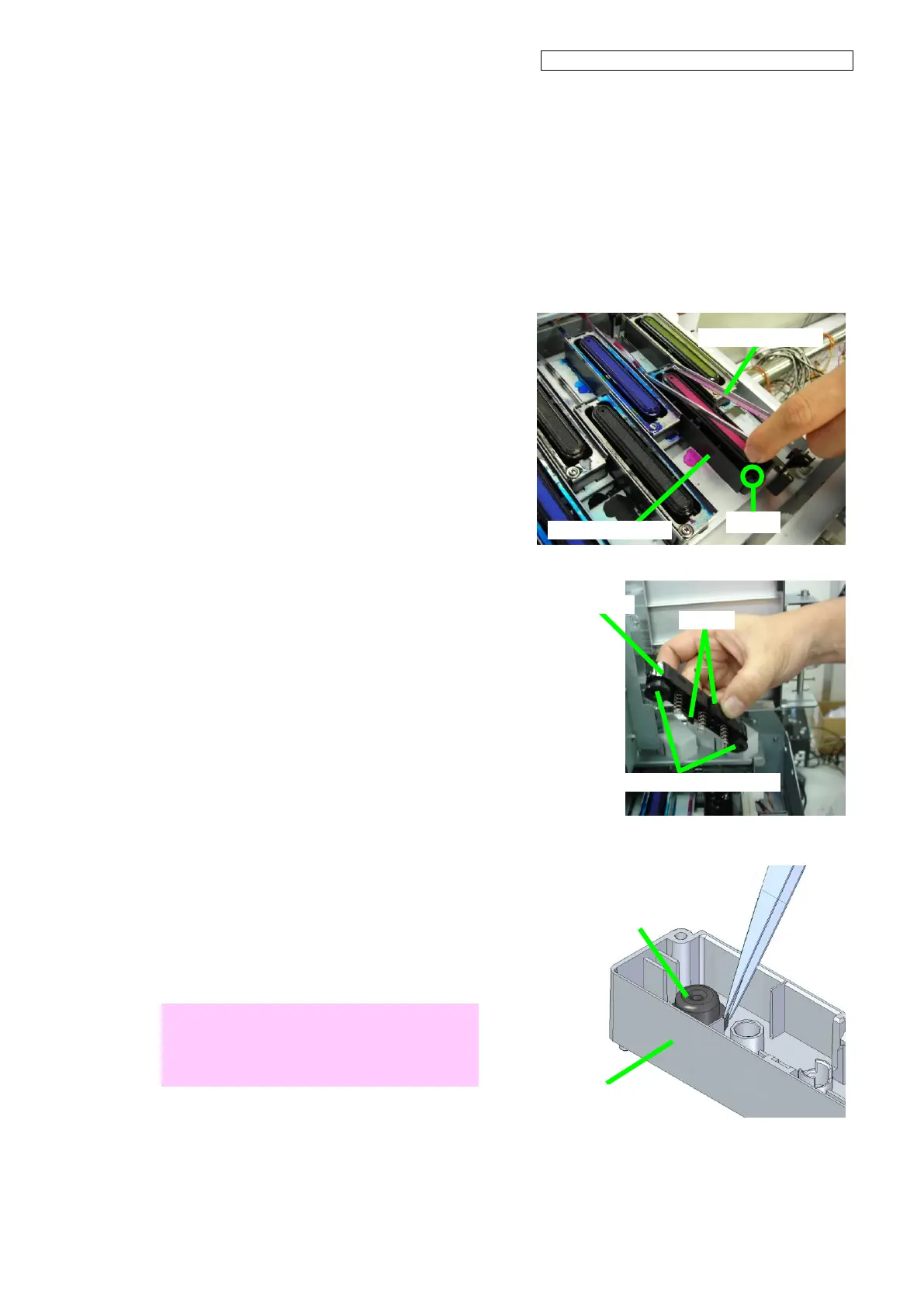

6.10.5 CAP-ASSY(MW)
<Removal>
1. Move the carriage to the maintenance
area.
2. From the FRAME(UD-HV), remove the
COVER(CAP-F) and securing screw.
3. Softly press the CAP,MW tabs to remove
the CAP,MW.
4. Remove the joints (CAP Sa) from the
CAP,MW (there are two joints per cap).
If a joint (CAP Sa) stays on the
FRAME(UD-HV), use a pair of tweezers
or a screwdriver to remove the joint (CAP
Sa) from its seating surface.
Note
Pay attention not to damage the joint (CAP
Sa) or FRAME(UD-HV) surface with the
tweezers and the screwdriver.
Tab
Joint (CAP Sa)
CAP,MW
Joint (CAP Sa)
FRAME (UD-HV)
COVER(CAP-F)
FRAME(UD-HV)
Screw
