Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-97
Notes for installation
 When setting the ink tubes between the projections of TRAY(WI), be sure to make the tube
ends touch the bottom of TRAY(WI).

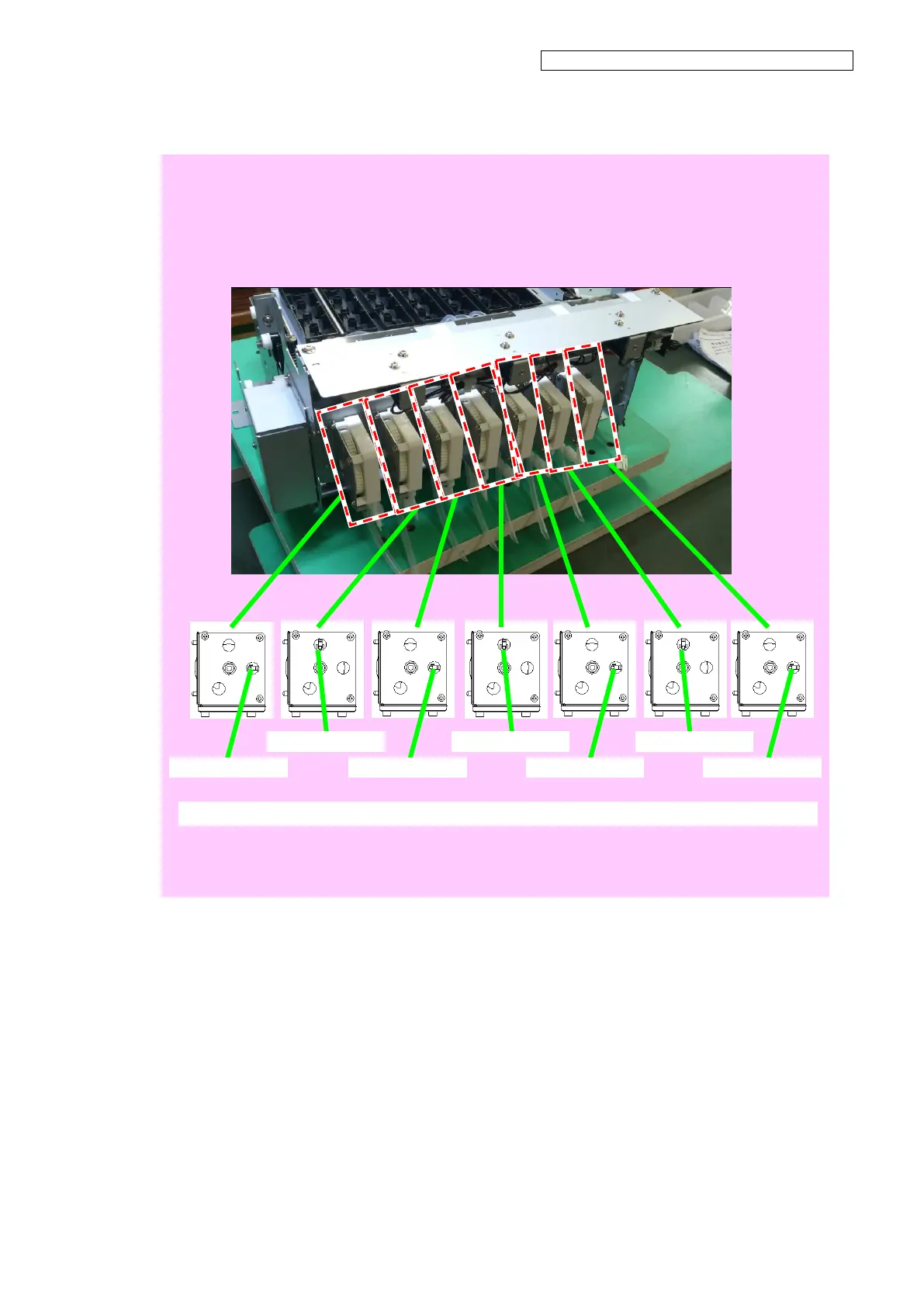

 Install the PUMP-F-ASSY(MW) so that their roller positions roller differ by 90° between them
(see the figures below).
 After the replacement, check that leak tightness is maintained on the capped status (see
6.10.1).
Weight to the top
Weight to the right
Weight to the right
Weight to the right
Weight to the right
Weight to the top
Weight to the top
With rotating the roller, change the position of the weight visible from the window on the HOLDER(PUMP-F).
