Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-127
6.15 Disassembling and Reassembling the TAKE UP REEL
UNIT and FEEDING-UNIT
6.15.1 FLANGE(2-INCH)
<Removal>
Remove the flange on the other side with the same procedure.

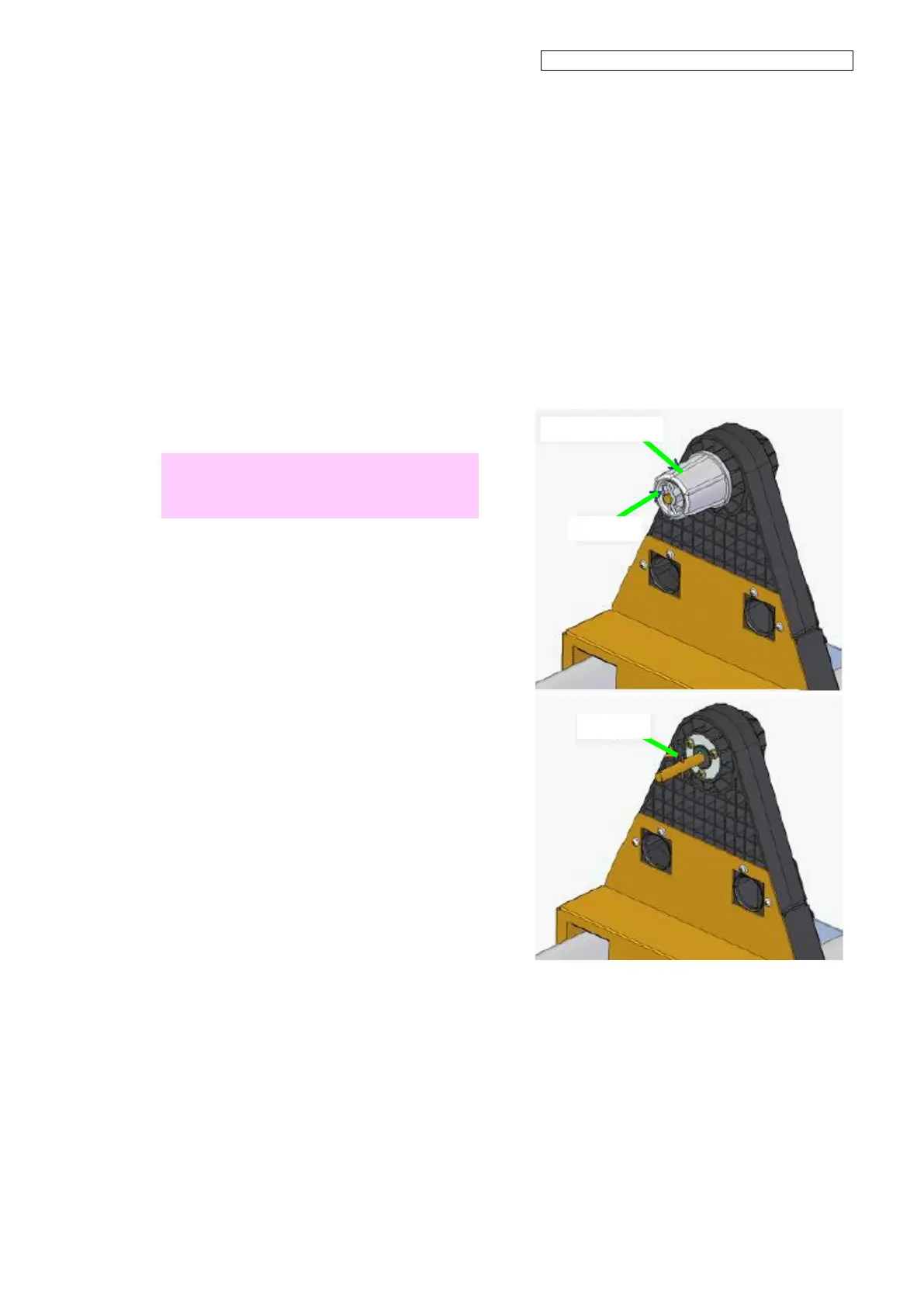

1. Pull the R pin and remove it.
Note
Pay attention not to lose the R pin and the
parallel pin.
FLANGE(2-INCH)
R pin
Parallel pin
