Oki IP-6620 - 6.4 Disassembling and Reassembling the Y Driver; 6.4.1 Y DRIVE MOTOR and DRIVING PULLEY

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-18

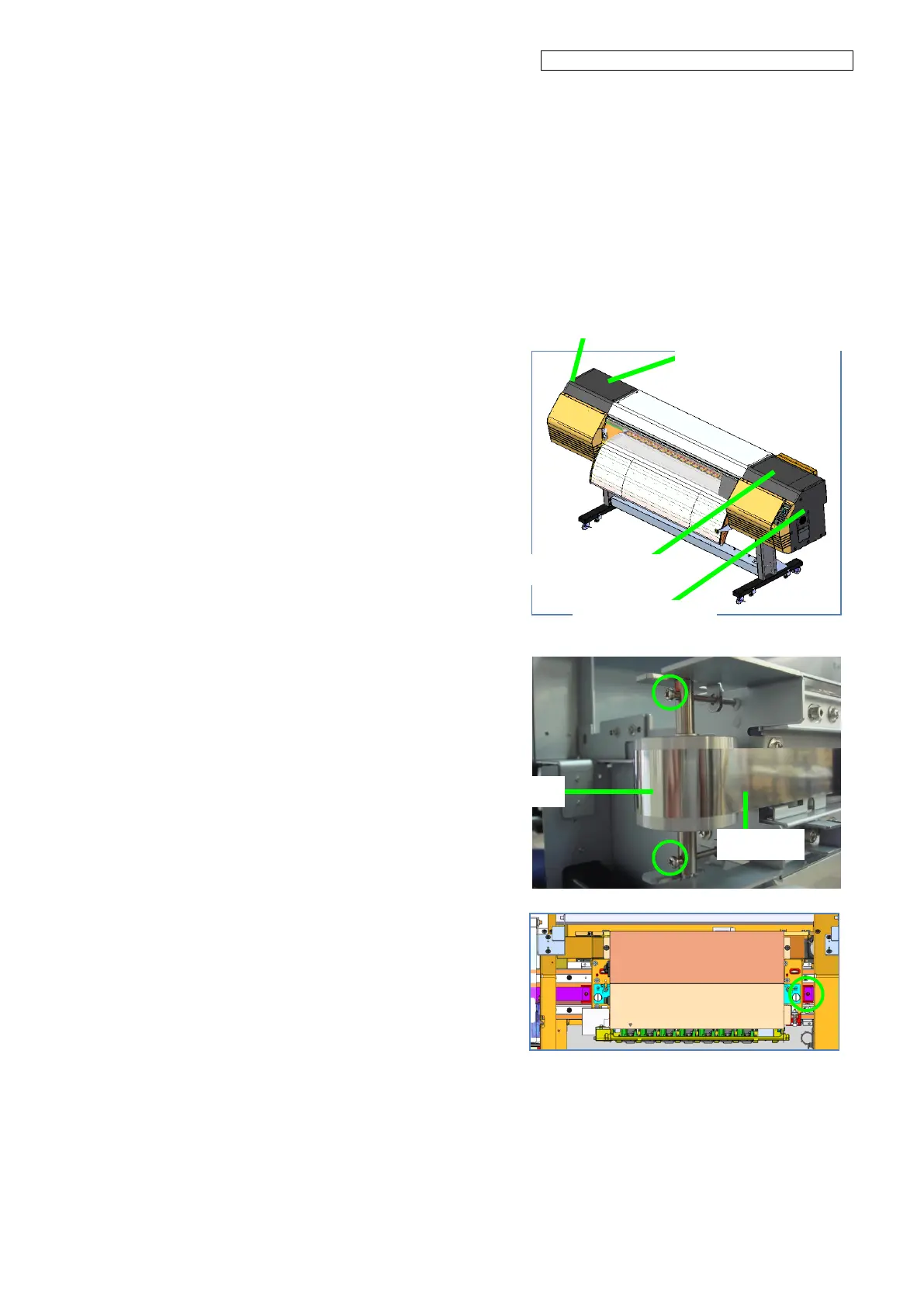

6.4 Disassembling and Reassembling the Y Driver
6.4.1 Y DRIVE MOTOR and DRIVING PULLEY
<Removal>
1. Remove the following parts.
- COVER(Y-RAIL)-SL-MW (see 6.3.2)
- COVER(Y-RAIL)-SR-MW (see 6.3.3)
- COVER(SIDE-L)-MW (see 6.3.6)
- COVER(SIDE-R)-MW (see 6.3.7)
2. Turn the two screws on the
Y-TENSION-PULLEY-ASSY to loosen
the SUS-BELT.
3. Remove the screw on the right side of the
carriage part that fixes the SUS-BELT, and
remove the SUS-BELT from the protruding
part of the carriage.
COVER(Y-RAIL)-SL-MW
COVER(Y-RAIL)-SR-MW
COVER(SIDE-R)-MW
COVER(SIDE-L)-MW
SUS-BELT
Y-TENSION-PULLEY-ASSY
