Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-140
6.16.2 SUPPLY PUMP TUBE, MW, LCIS
<Removal>
1. Remove the SUPPLY PUMP,MW,LCIS
(see 6.16.1).
2. Remove the frame (pump 64) with three
screws from the SUPPLY
PUMP,MW,LCIS.
3. Remove the roller (pump), and then
remove the SUPPLY PUMP
TUBE,MW,LCIS.
Notes
 Do not remove the grease applied on the tube.
 If you replace the tube, do not forget to reset the counter for the supply pump operating time.
 When reinstalling the tube, place it along the frame (pump) and pay attention that it is not
twisted or bent.
 Pay attention to the joint orientation.

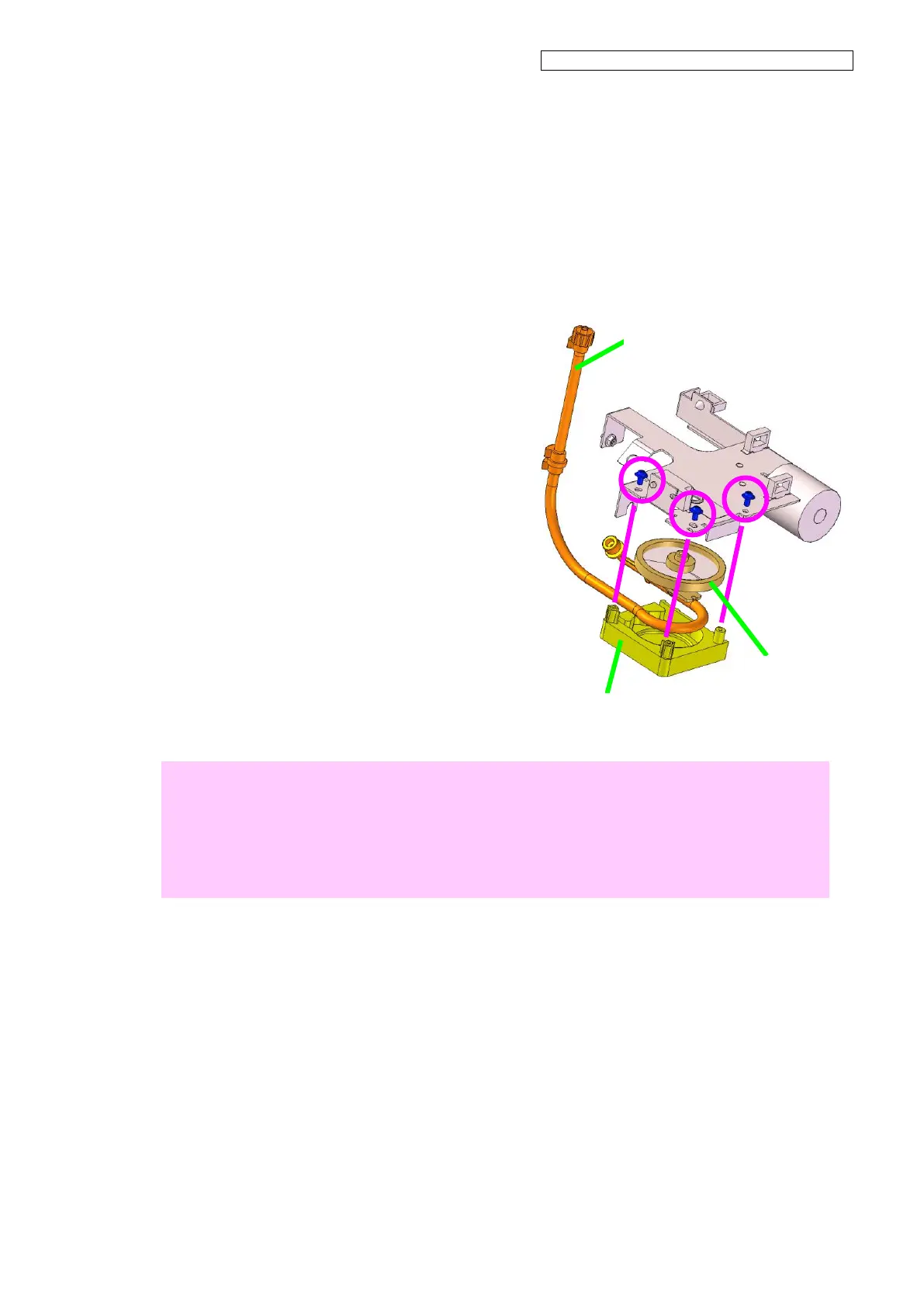

SUPPLY PUMP TUBE,MW,LCIS
Frame (pump 64)
Roller (pump)
