Oki IP-6620 - 6.3.5 COVER(R-L)-MW

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-7
6.3.5 COVER(R-L)-MW
<Removal>
1. Open the COVER(FRONT)ASSY-MW.
2. Open the COVER(L)ASSY-MW and the
COVER(R)ASSY-MW.

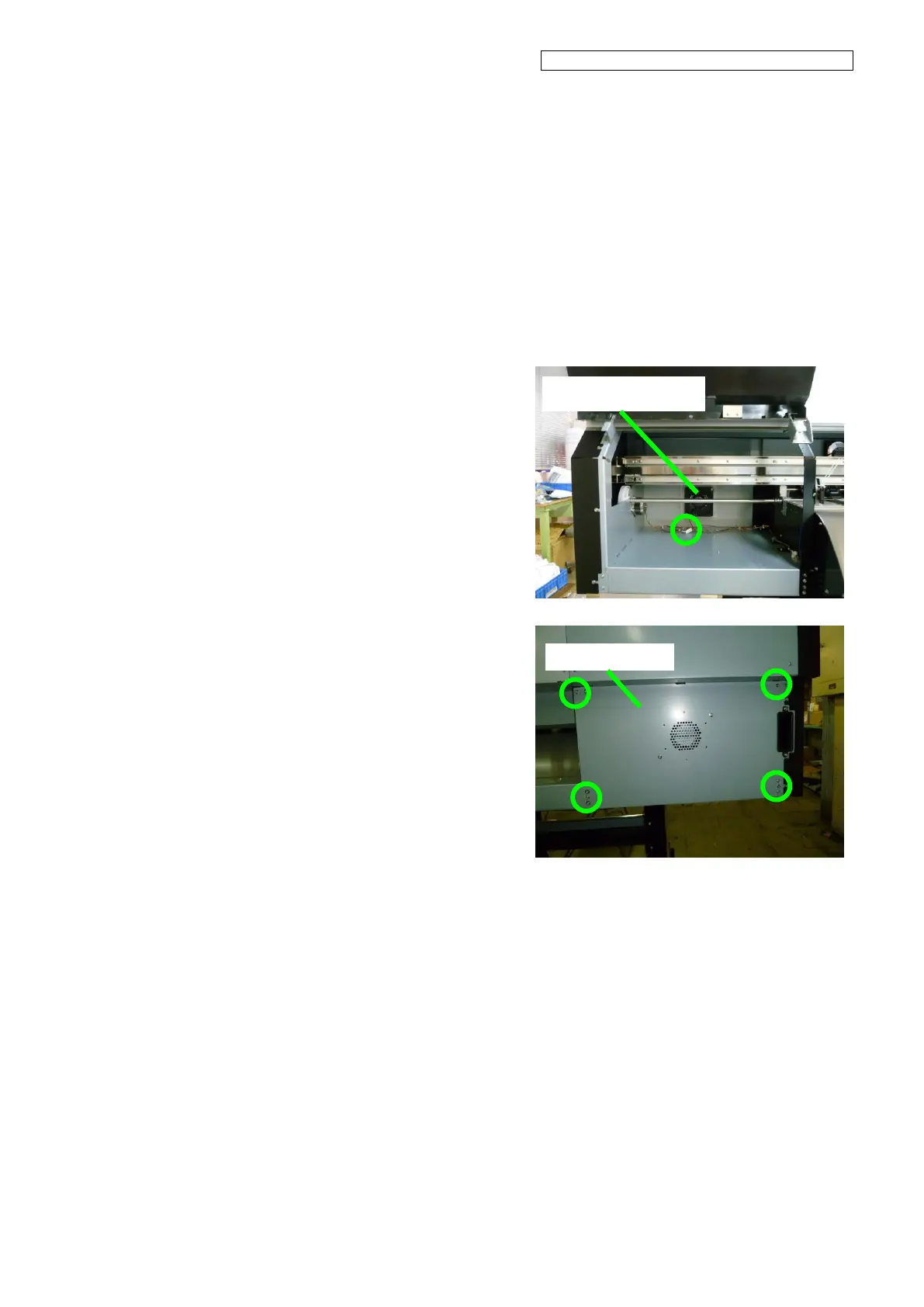

3. Disconnect the FAN(REAR)ASSY MW
connector.
4. Remove the COVER(R-L)-MW with four
fixing screws.
FAN(REAR)ASSY MW
COVER(R-L)-MW
