Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-49

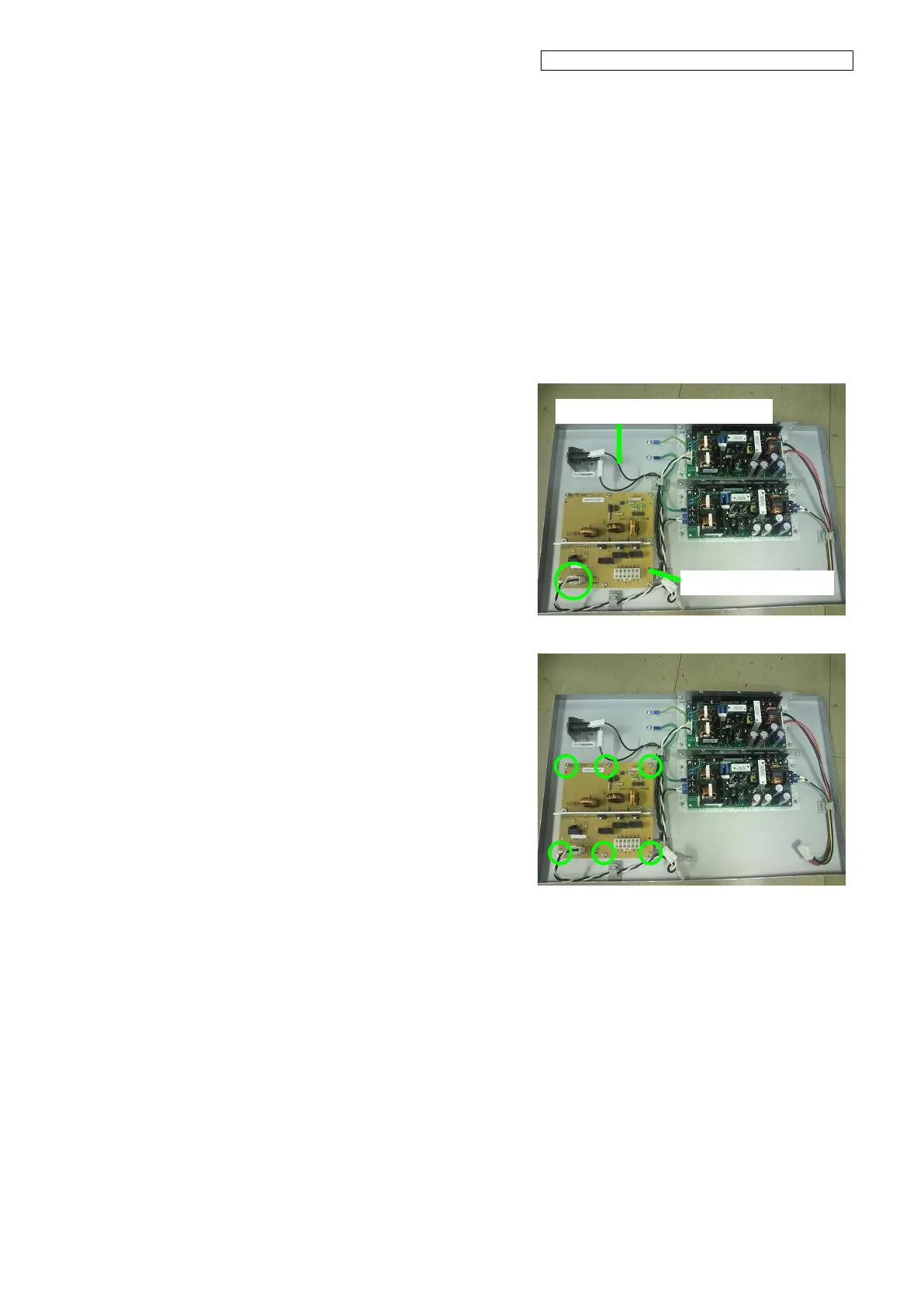

6.6.4 PCB-ASSY-TRC(MW)
<Removal>
1. Before starting the procedure, be sure to
disconnect the power cord from the
outlet.
2. Open the POWER-BOX (see 6.6).
3. Remove the
POWER-BOX-CASE-MW-BOTTOM and
disconnect the PCB-ASSY-TRC(MW)
harness.
4. Remove the six screws securing the
PCB-ASSY-TRC(MW).
POWER-BOX-CASE-MW-BOTTOM
PCB-ASSY-TRC(MW)
