Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-47

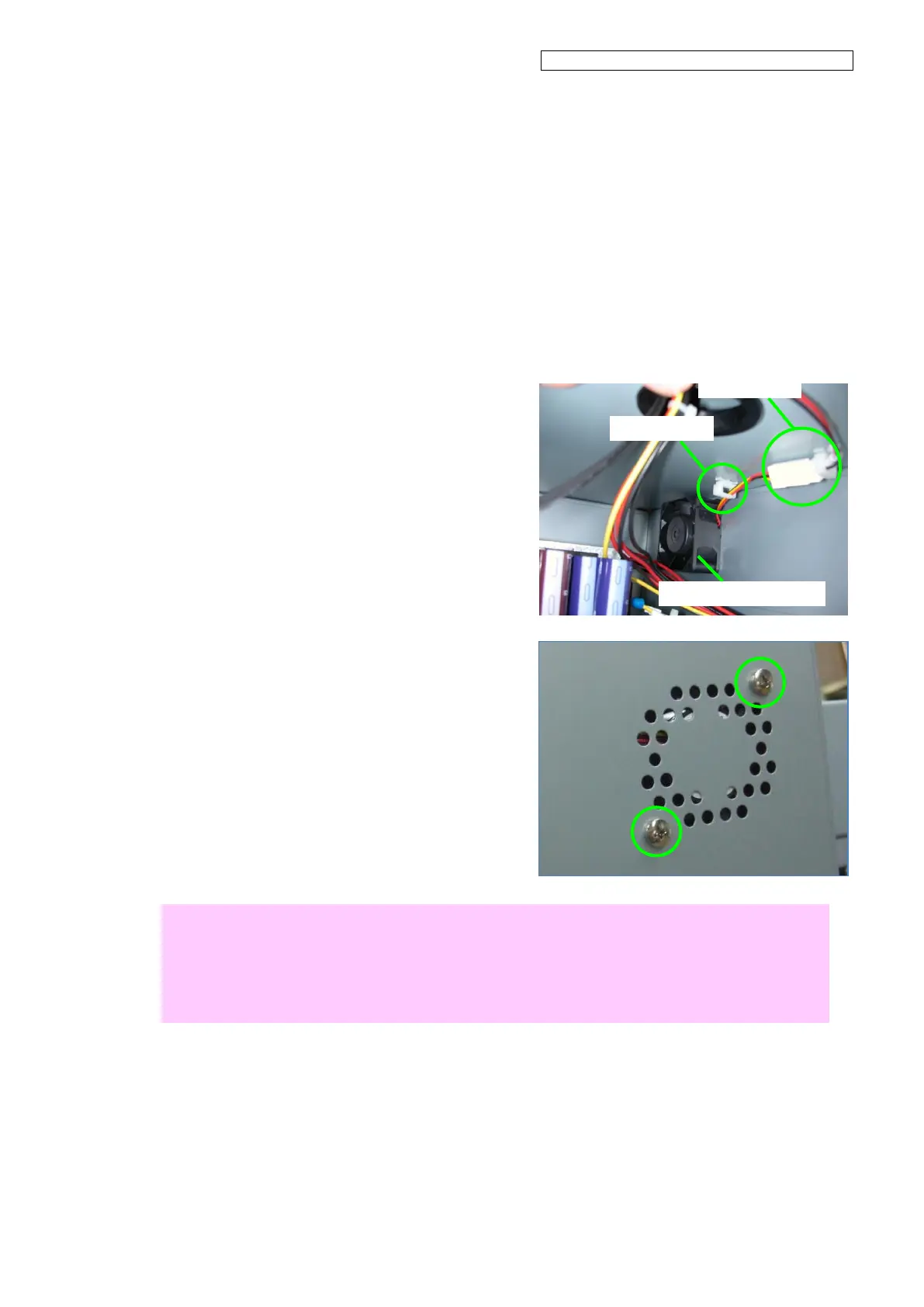

6.6.2 FAN(EL UNIT) ASSY MW (POWER-BOX)
<Removal>
1. Before starting the procedure, be sure to
disconnect the power cord from the
outlet.
2. Open the POWER-BOX (see 6.6).
3. Remove the harness from the clamp and
disconnect the connector.
4. Remove the FAN(EL UNIT)ASSY MW
with two fixing screws.
Notes for installation
 Orient the fans so that:
- The air flows from the inside to the outside of the printer; and
- The nameplate faces the outside of the printer.
 Be careful not to catch the wires between the metal plates and the boards when closing the
POWER-BOX-COVER-F (see 6.6 for details on the position).
FAN(EL UNIT)ASSY MW
Clamp
Connector
