Chapter 7 Adjustment
7-22

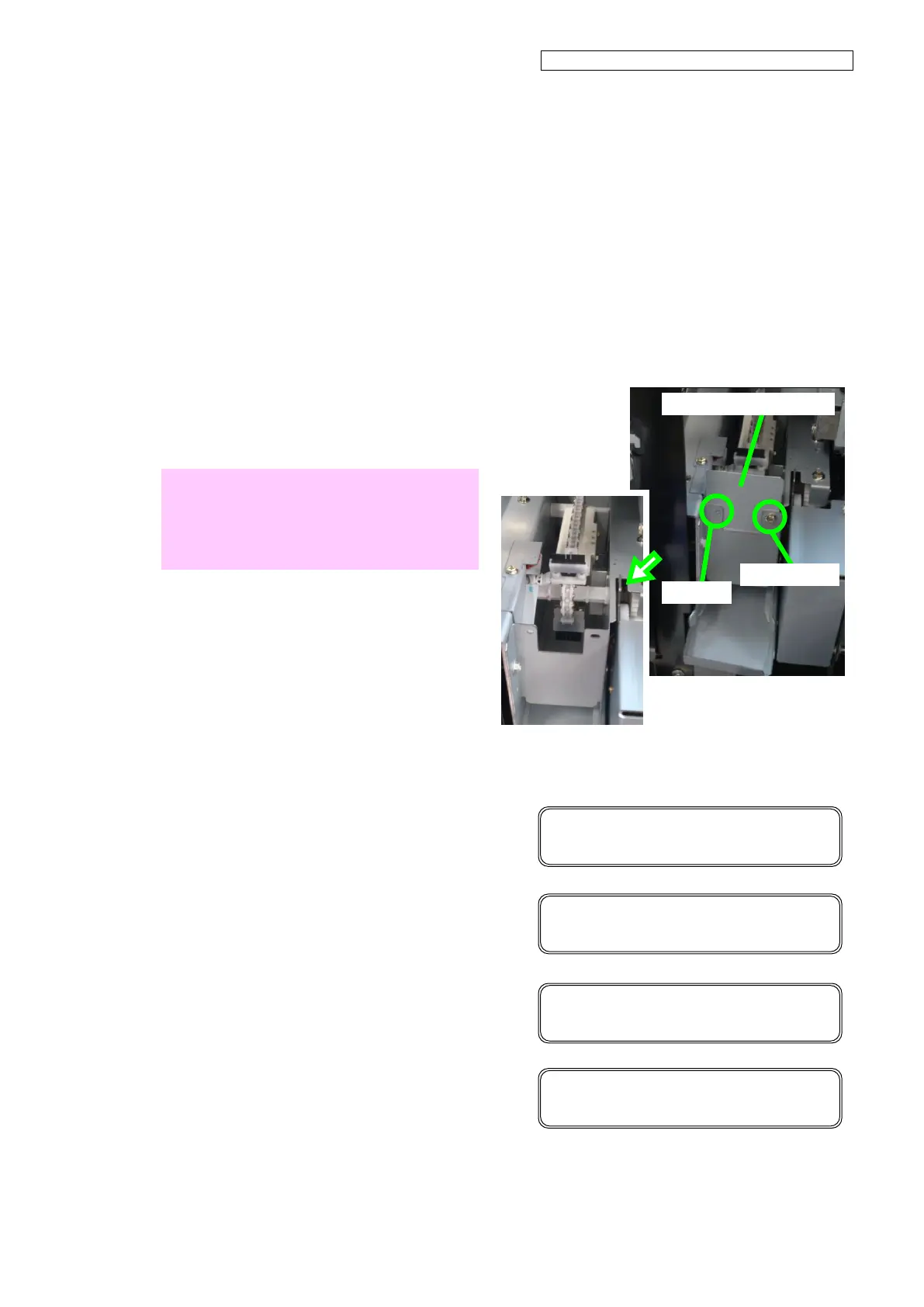

7.5.2 Single color adjustment
<Preparation>
1. Remove the cap cover (see 7.5.1
Wiping unit adjustment).
Open the COVER(CENTER)-F, remove
the COVER(R)ASSY-MW, and then
close the COVER(CENTER)-F.
2. Remove the wiper cleaning bottle and
the wiper sponge.
Remove the BRACKET(WIPE)-GUARD.
Notes
 Do not spill the liquid inside the wiper
sponge.
 Be sure to insert the protrusion when
installing the BRACKET(WIPE)-GUARD.
<Procedure>
1. Press the ADJUST button.
2. With the Up and Down buttons, select
MECHANICAL ADJUST.
3. Press the OK button.
4. With the Up and Down buttons, select
WIPING POS ADJUST, then press the
OK button.
ADJUST
 MECHANICAL ADJUST ◎
ADJUST
 MEDIA ADVANCE ◎
>MECHANICAL ADJUST
 PH POSITION ADJUST ◎
>MECHANICAL ADJUST
 WIPING POS ADJUST ◎
BRACKET(WIPE)-GUARD
Protrusion
Securing screw
