Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-11

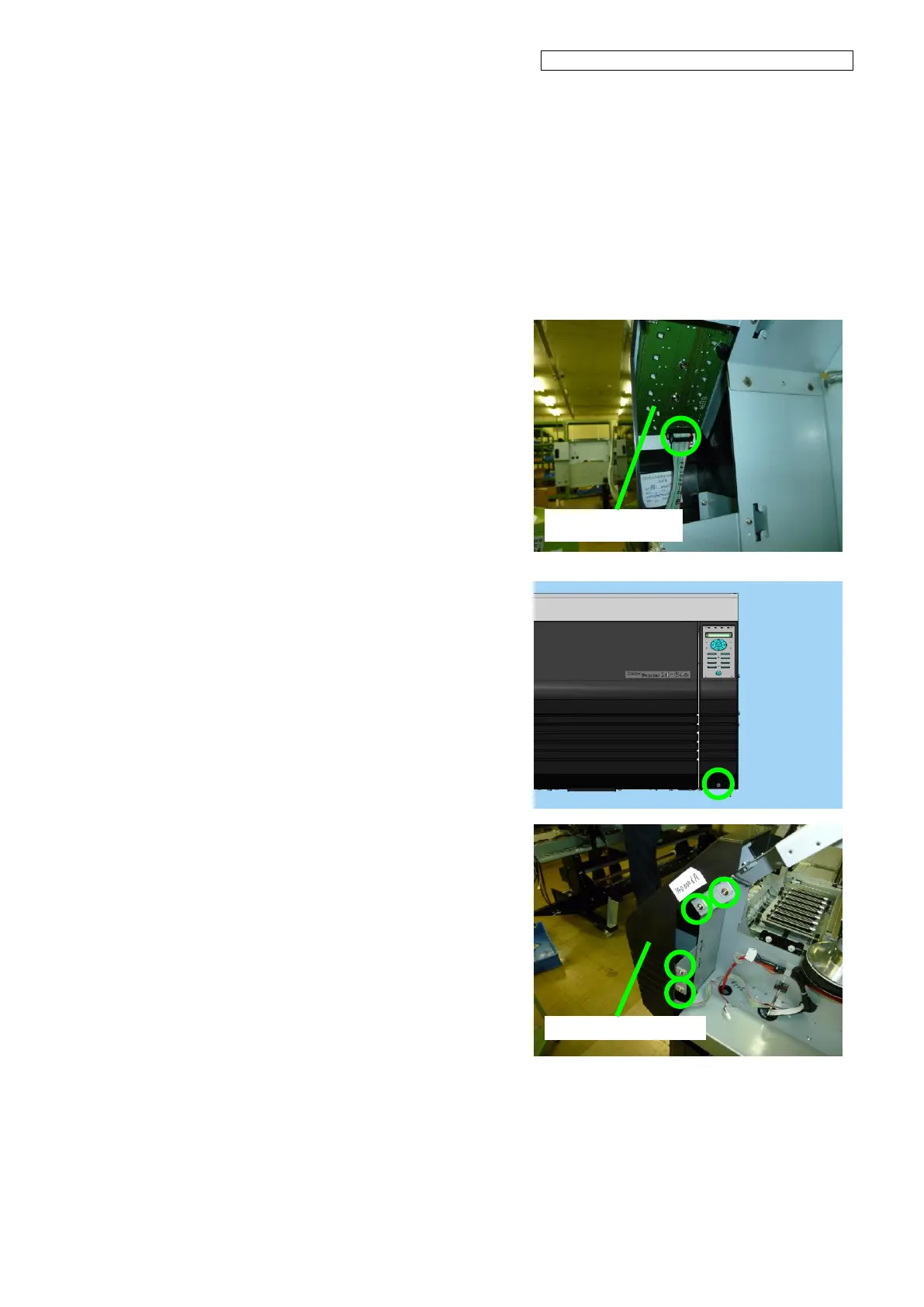

6.3.9 OP-PANEL-UNIT-MW
<Removal>
1. Remove the COVER(SIDE-R)-MW (see
6.3.7).
2. Disconnect the connector connected to
the PCB-ASSY-MCP4M.
3. Remove the OP-PANEL-UNIT-MW and
five fixing screws.
PCB-ASSY-MCP4M
OP-PANEL-UNIT-MW
