OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-62

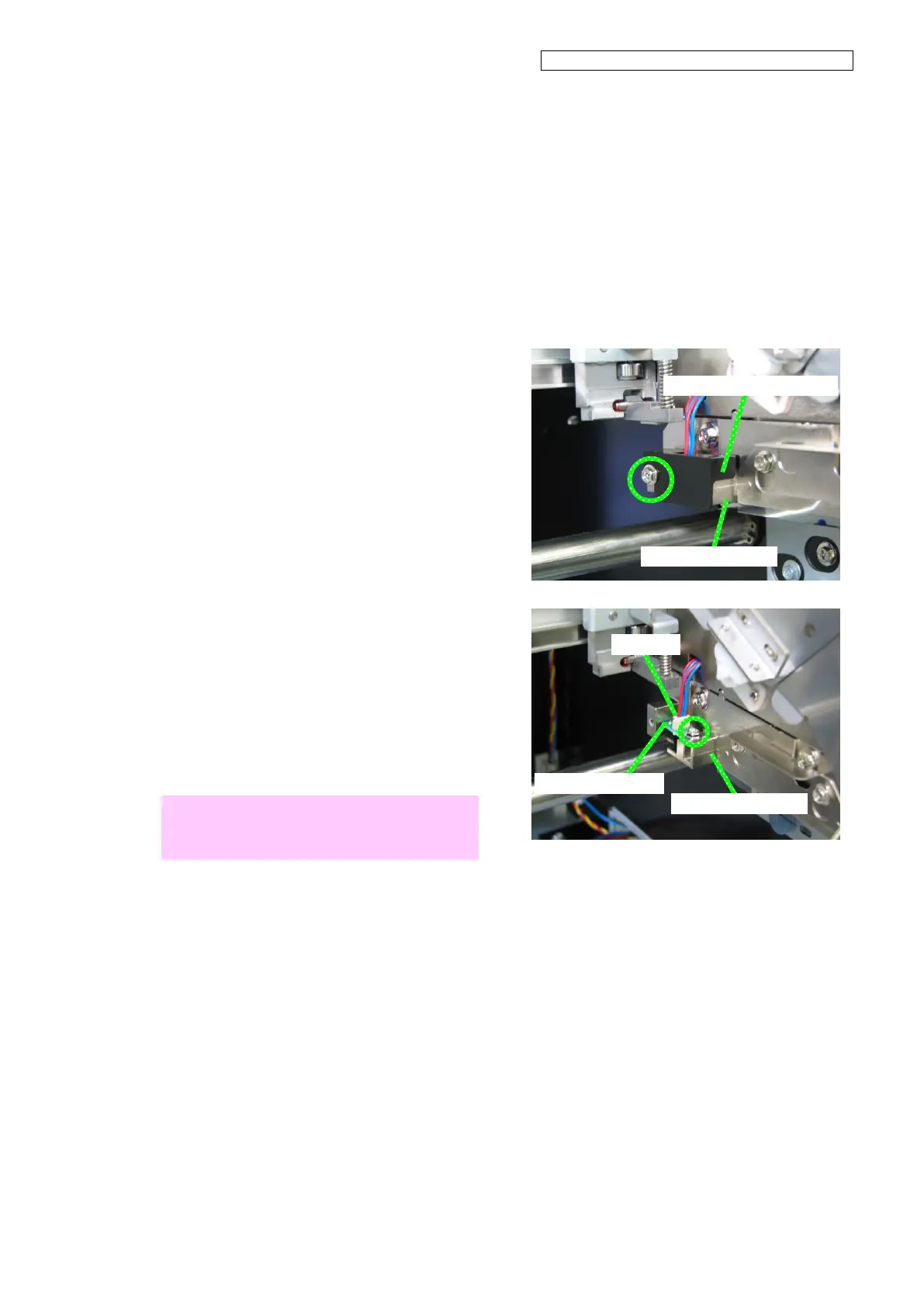

6.8.3 PCB-ASSY-SNS1
<Removal>
1. Open:
- COVER(FRONT)ASSY-MW,
- COVER(COVER-FU)-MW; and
- COVER(COVER-FB)-MW.
2. Remove:
- One screw securing the
COVER-EDGESENSOR to the
BASEHEAD_LOWER; and
- COVER-EDGESENSOR.
3. Disconnect the PCB-ASSY-SNS1
connector.
4. Remove:
- One screw securing the
PCB-ASSY-SNS1 to the
BASEHEAD_LOWER; and
- PCB-ASSY-SNS1.
Note for installation
Install the PCB-ASSY-SNS1 so that it is
parallel to the BASEHEAD_LOWER.
BASEHEAD_LOWER
PCB-ASSY-SNS1
Connector
COVER-EDGESENSOR
BASEHEAD_LOWER
